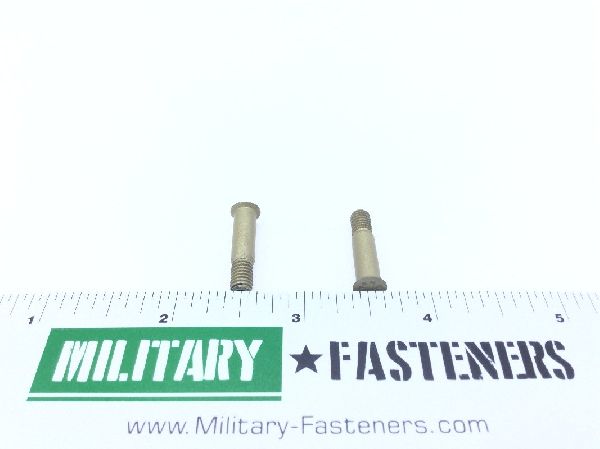

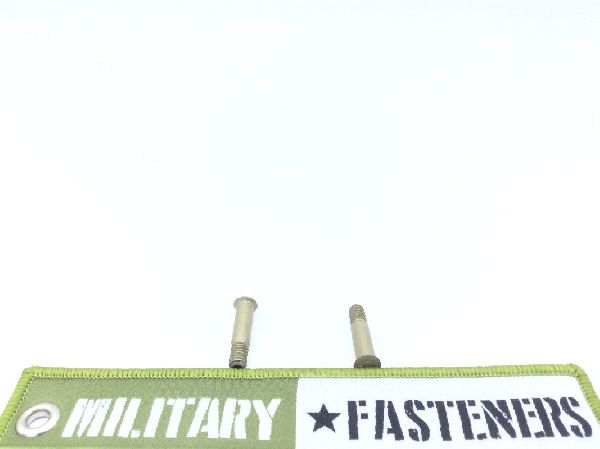

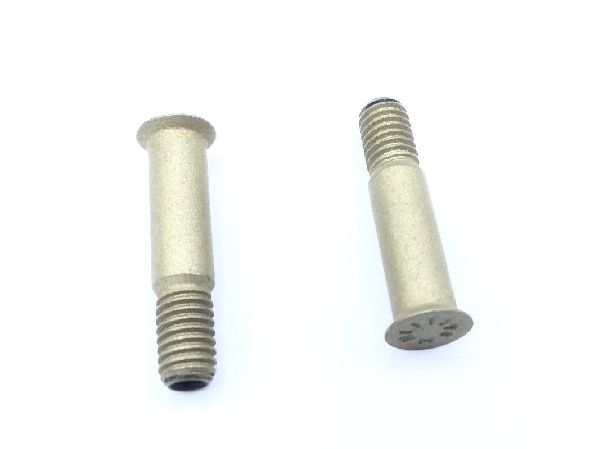

HL11VAZ6-9 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Cooper's

Material

Titanium alloy uns r54520

Thread Class

Thread Size

0.312 inches

Countersink Angle: 100.0 degrees
Expansion Device: Threaded sleeve
Fastener Length: Between 0.877 inches and 0.897 inches
Grip Length: Between 0.552 inches and 0.562 inches
Head Height: 0.065 inches
Head Major Diameter: 0.301 inches
Material Specification: Ams-4928 assn standard single material response
Shank Diameter: Between 0.1610 inches and 0.1640 inches
Shank Style: Stump
Shear Strength: 95000 double pounds per square inch
Special Features: Threaded end of pin is chamferred 0.031 inches at 45 degrees
Thread Direction: Right-hand
Thread Series Designator: Unf (fine thread)
