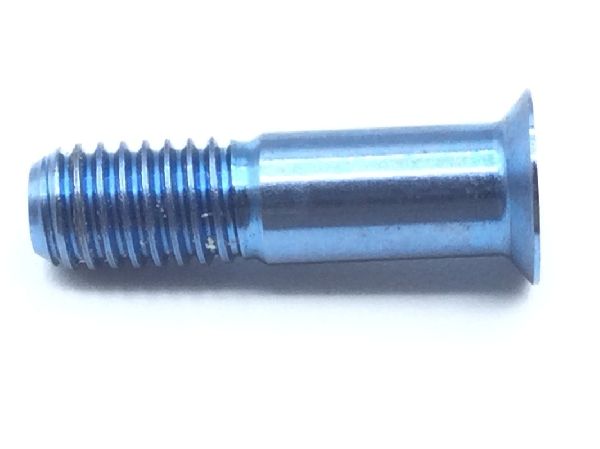

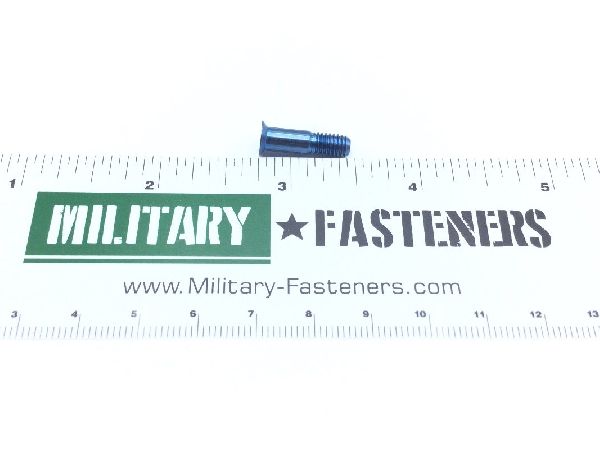

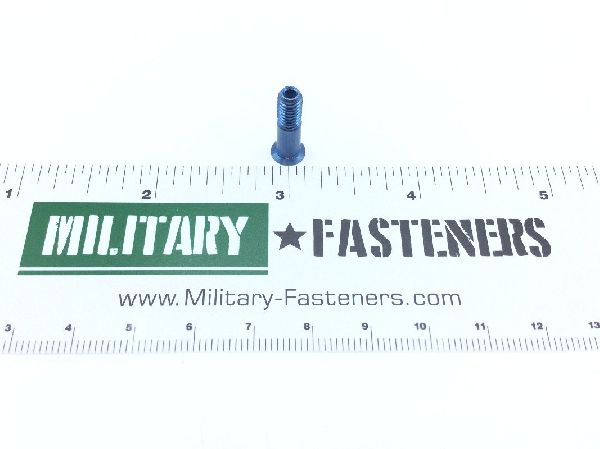

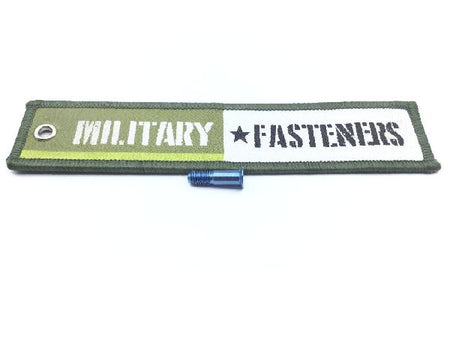

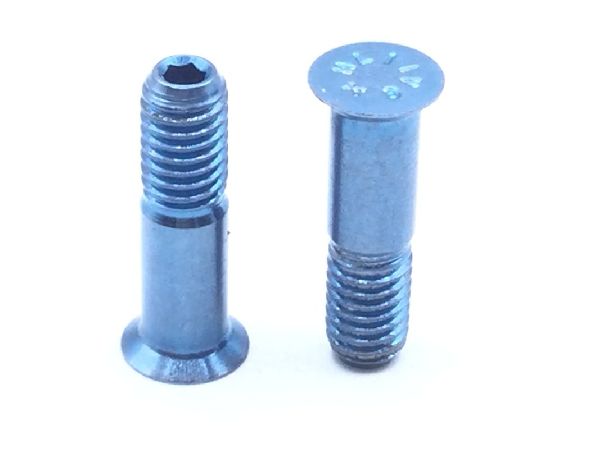

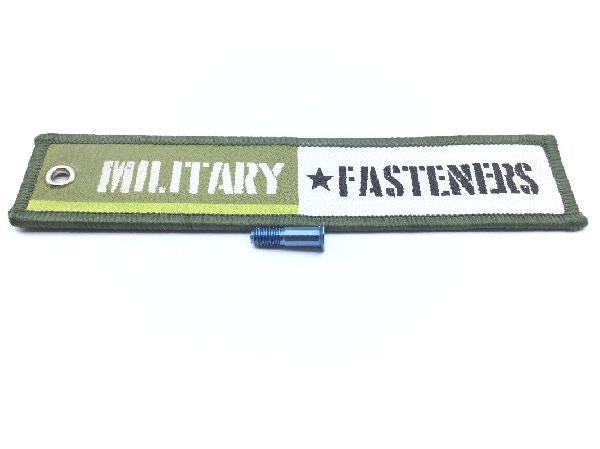

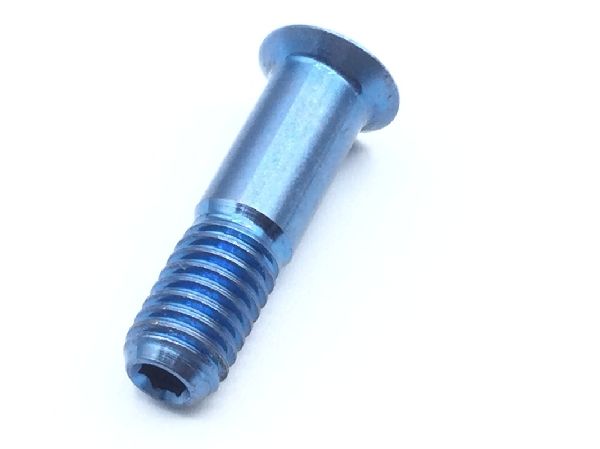

HL11VF6-6 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush countersunk

Material

Titanium alloy uns r54520

Thread Class

Thread Size

0.190 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.690 inches and 0.710 inches
Grip Length: Between 0.370 inches and 0.380 inches
Head Major Diameter: Between 0.2966 inches and 0.3016 inches
Identification Code Color: Blue
Material Specification: Ams4967 mfr ref single material response
Min. Tensile Strength (psi): 95000 pounds per square inch
Shank Diameter: Between 0.1885 inches and 0.1895 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 5380 double pounds per square inch
Specification Data: 73197-hl11vf-6-6 manufacturers standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0791 inches and 0.0806 inches
Lubrication: hi-shear corp specification 305 cetyl alcohol
