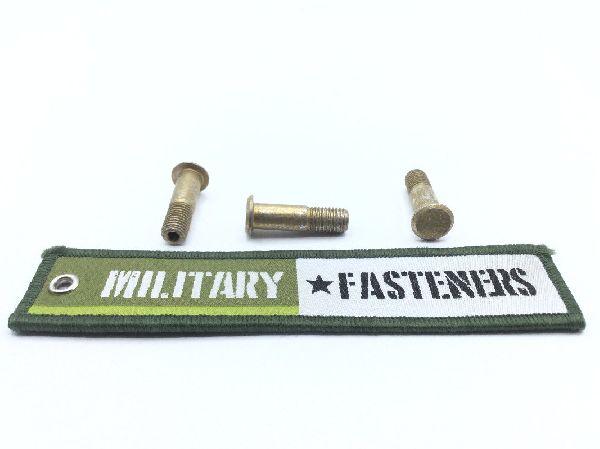

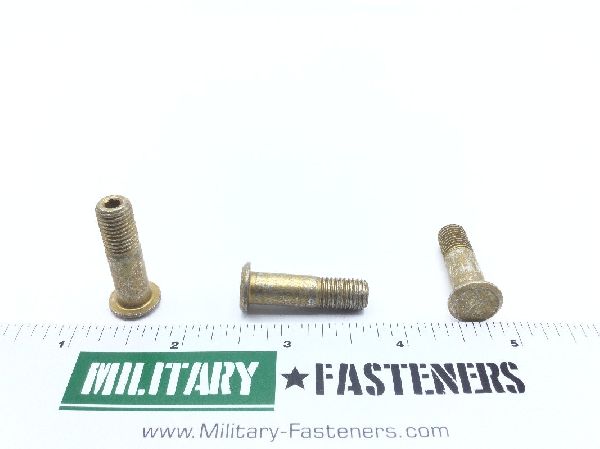

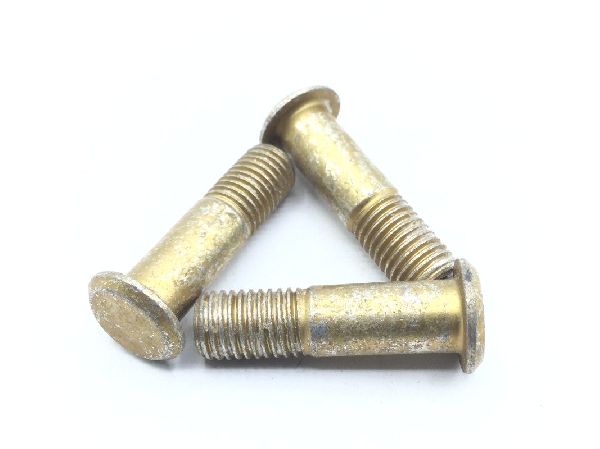

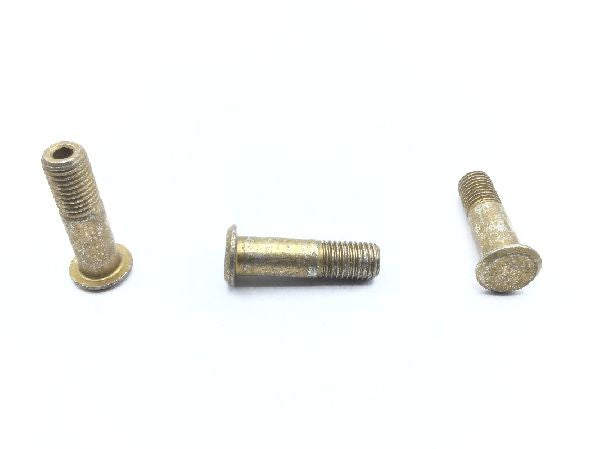

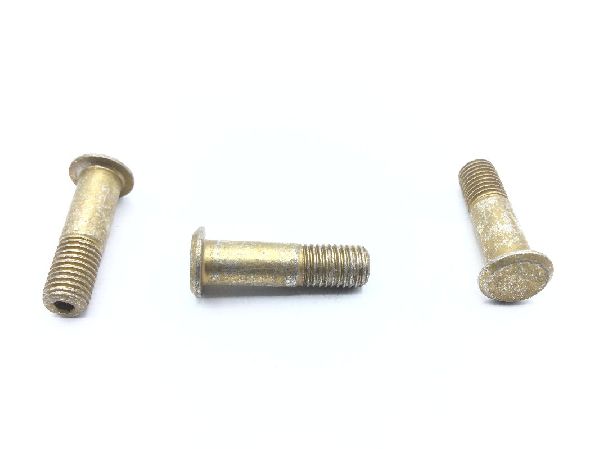

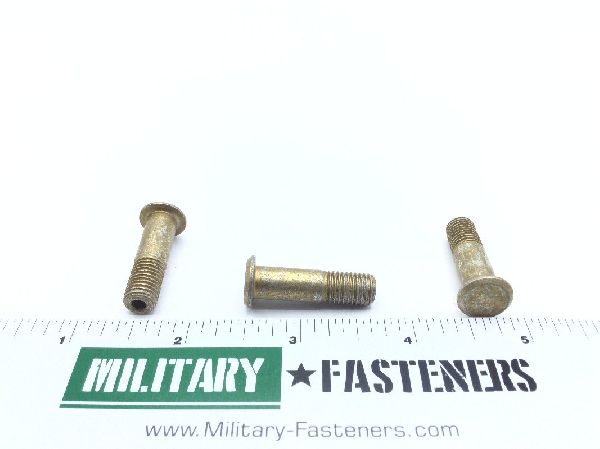

HL18PB10-10 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $10.34

Units per Pack 10

Price per Pack $103.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $103.40

Add item to quote

Head Style

Err-090

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.312 inches

Fastener Length: Between 1.115 inches and 1.135 inches
Grip Length: 0.625 inches
Head Height: Between 0.068 inches and 0.078 inches
Head Major Diameter: Between 0.475 inches and 0.505 inches
Identification Code Color: Bronze
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-6758 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.311 inches and 0.312 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.127 inches and 0.130 inches
