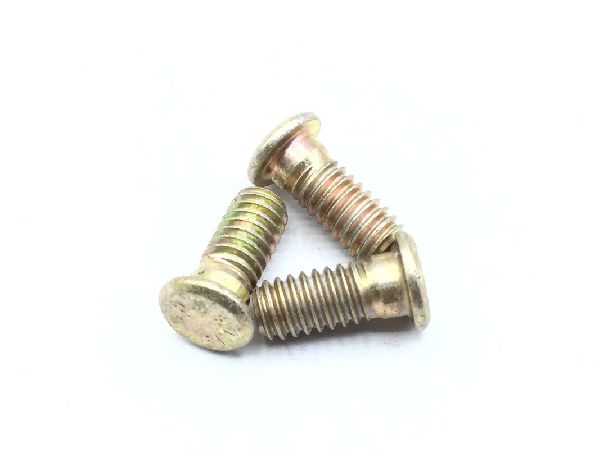

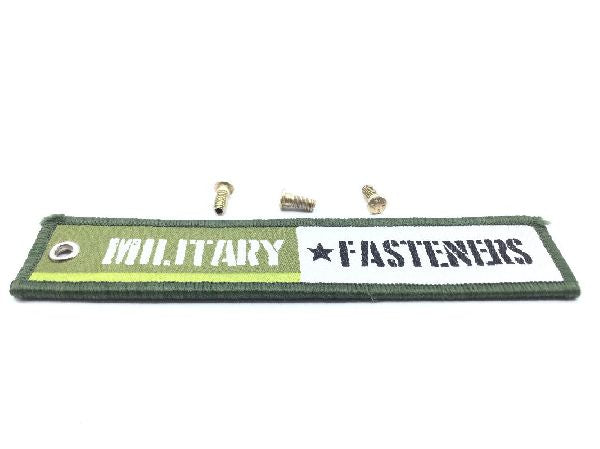

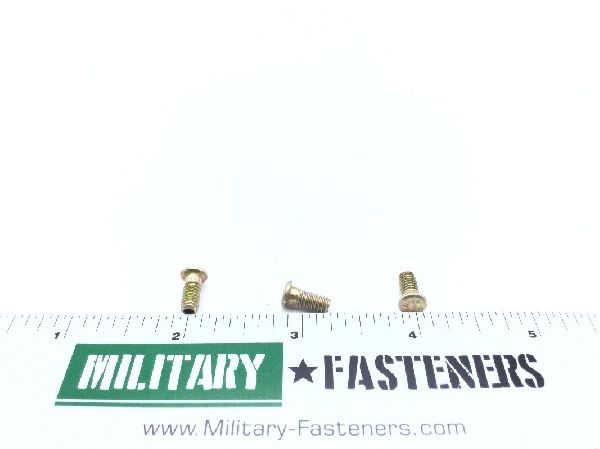

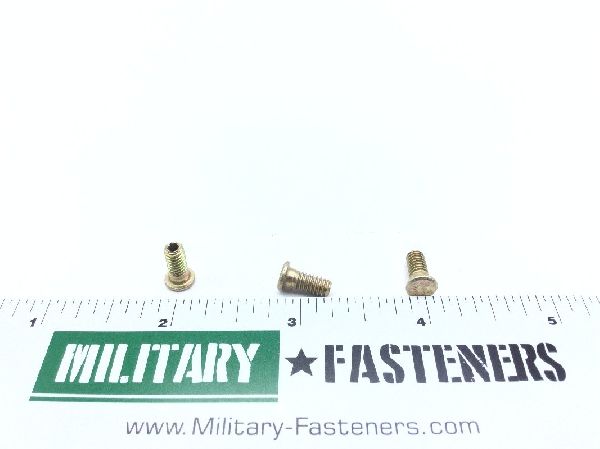

HL18PB5-1 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Err-090

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 0.364 inches and 0.384 inches
Grip Length: 0.067 inches
Head Height: Between 0.037 inches and 0.047 inches
Head Major Diameter: Between 0.242 inches and 0.262 inches
Identification Code Color: Bronze
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0791 inches and 0.0801 inches
Lubrication: Hi-shear corp specification 305 cetyl alcohol
