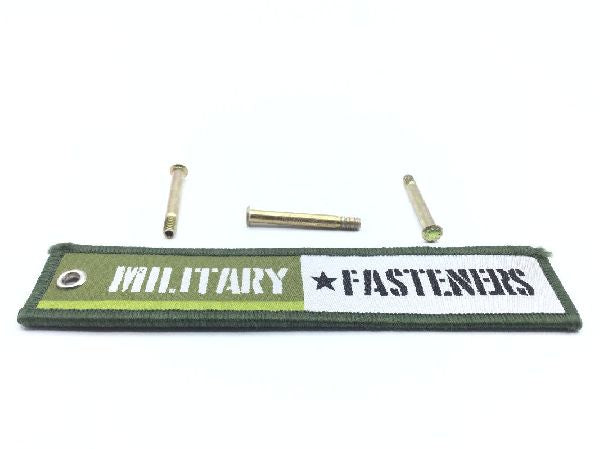

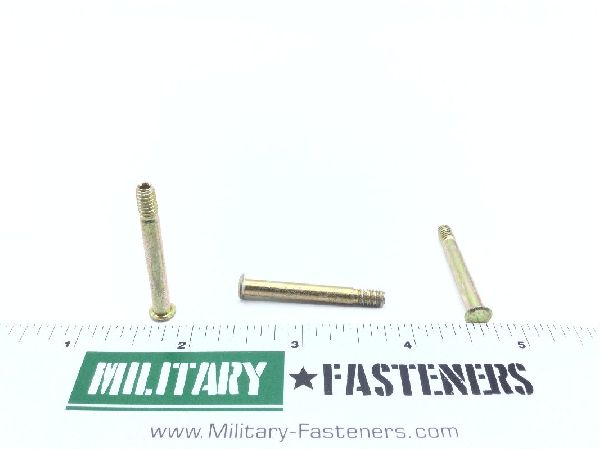

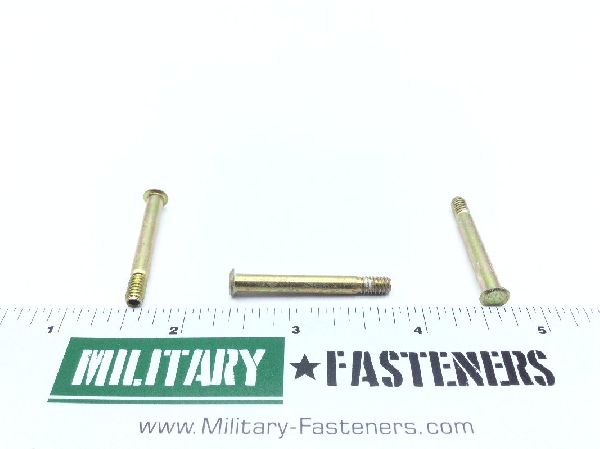

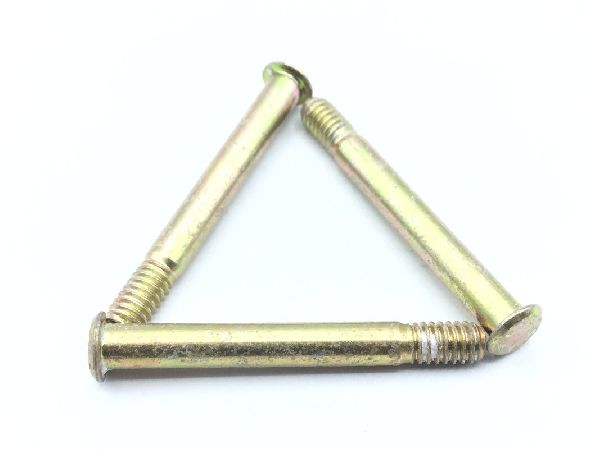

HL18PB5-17 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Err-090

Material

Steel comp 4140 or steel comp 8740 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 1.359 inches and 1.389 inches
Grip Length: Between 1.057 inches and 1.067 inches
Head Height: Between 0.037 inches and 0.047 inches
Head Major Diameter: Between 0.242 inches and 0.262 inches
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-6758 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Series Designator: Unjc
Width Between Flats: Between 0.0791 inches and 0.0801 inches
