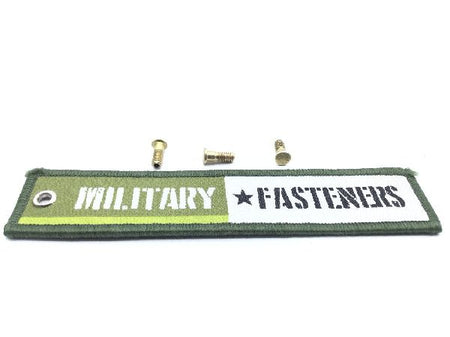

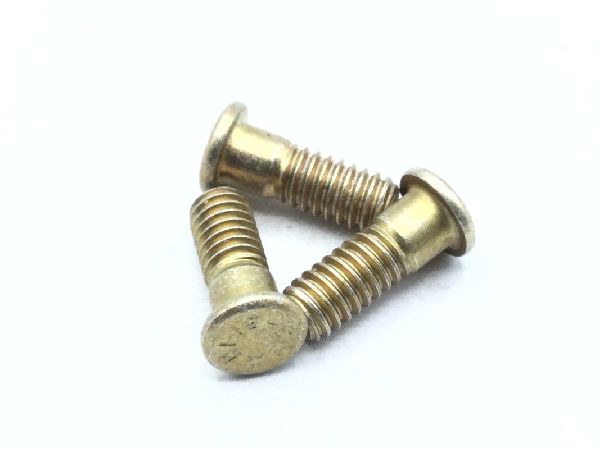

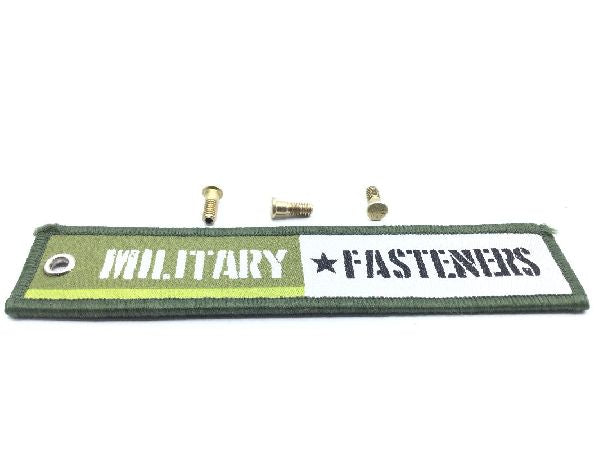

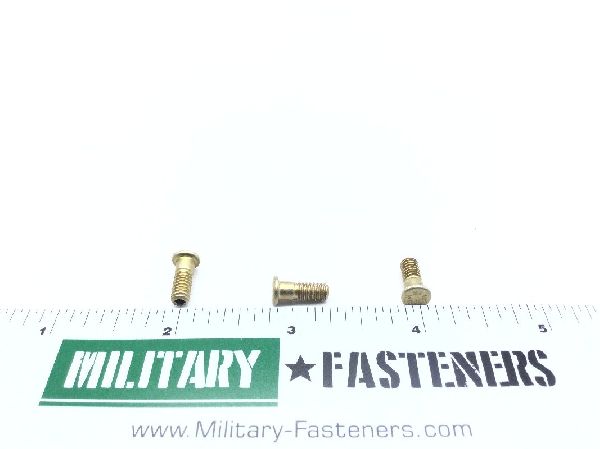

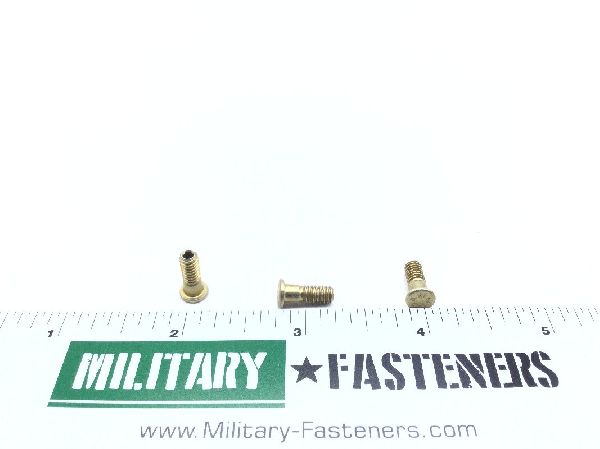

HL18PB5-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $2.50

Units per Pack 20

Price per Pack $50.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $50.00

Add item to quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 0.427 inches and 0.447 inches
Grip Length: 0.130 inches
Identification Code Color: Bronze
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight
Shear Strength: 95000 single pounds per square inch
Special Features: Color bronze
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0791 inches and 0.0801 inches
Lubrication: Hi-shear corp specification 305 cetyl alcohol
