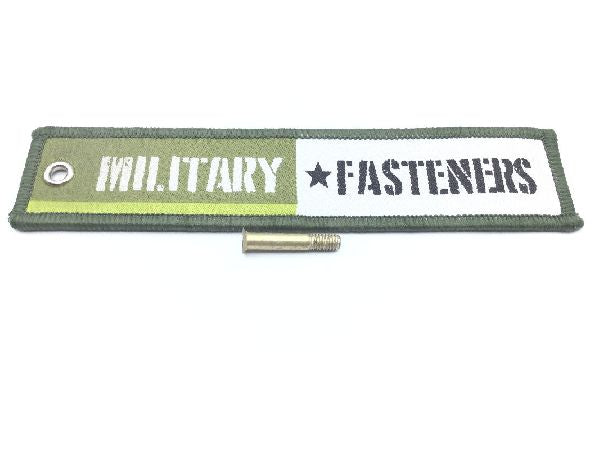

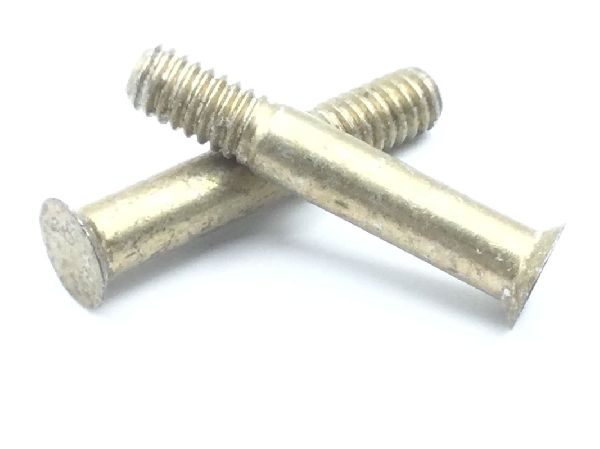

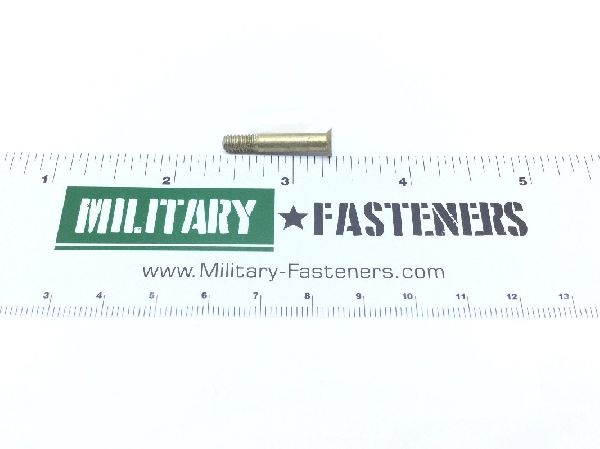

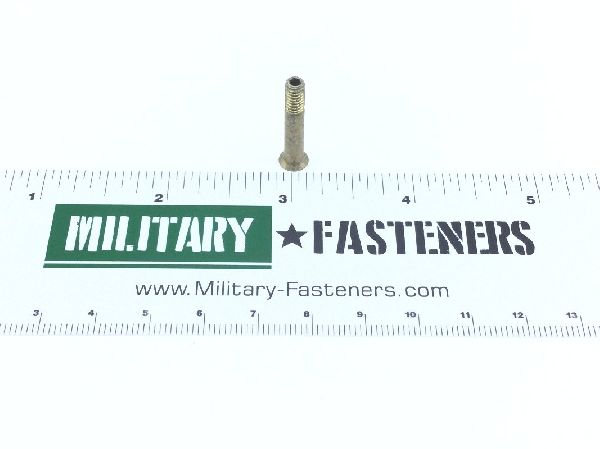

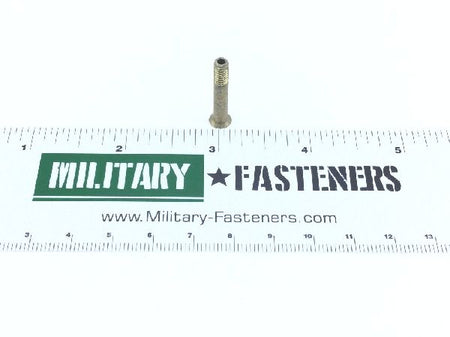

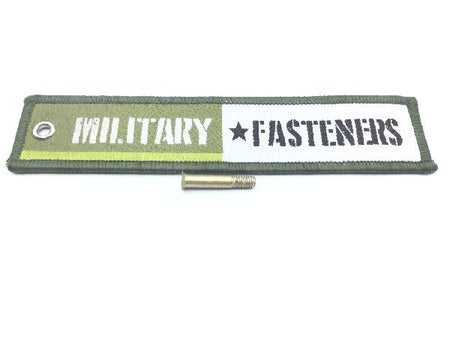

HL19PB5-10 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $1.94

Units per Pack 20

Price per Pack $38.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $38.80

Add item to quote

Head Style

Flush countersunk

Material

Steel comp e4340 or steel comp 8740 or steel comp 4140

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.927 inches and 0.947 inches
Grip Length: Between 0.620 inches and 0.630 inches
Head Major Diameter: Between 0.2564 inches and 0.2612 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-5626 military specification 3rd material response
Min. Tensile Strength (psi): 160 pounds per square inch
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0791 inches and 0.0801 inches
