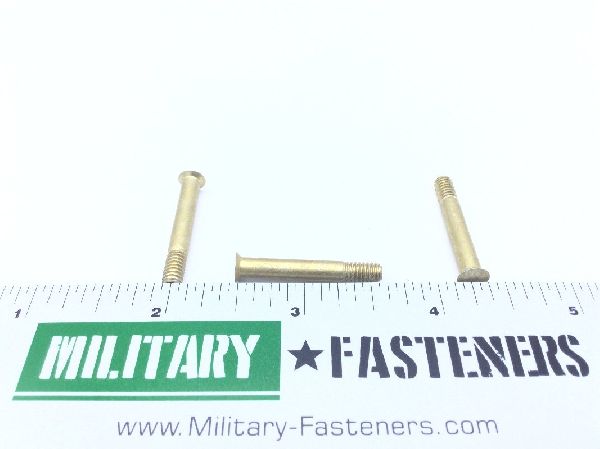

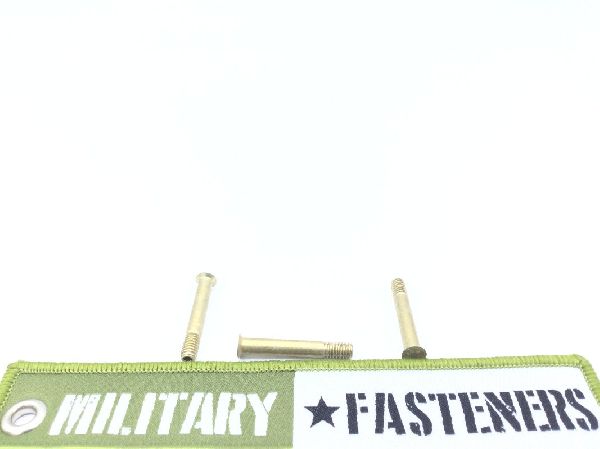

HL19PB5-13 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $1.87

Units per Pack 25

Price per Pack $46.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $46.75

Add item to quote

Head Style

Flush countersunk

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 1.114 inches and 1.134 inches
Grip Length: Between 0.807 inches and 0.817 inches
Head Major Diameter: 0.2612 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight
Shear Strength: 95000 single pounds per square inch
Special Features: Color bronze
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0791 inches and 0.0801 inches
Lubrication: Hi-shear corp specification 305 cetyl alcohol
