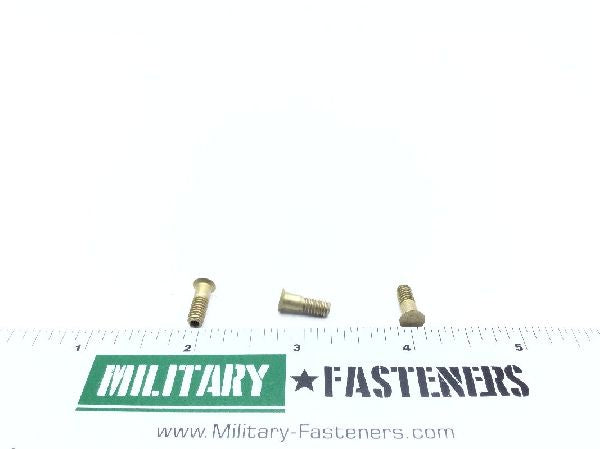

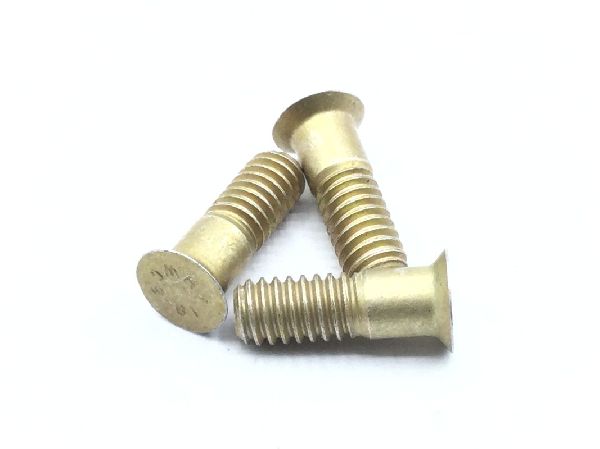

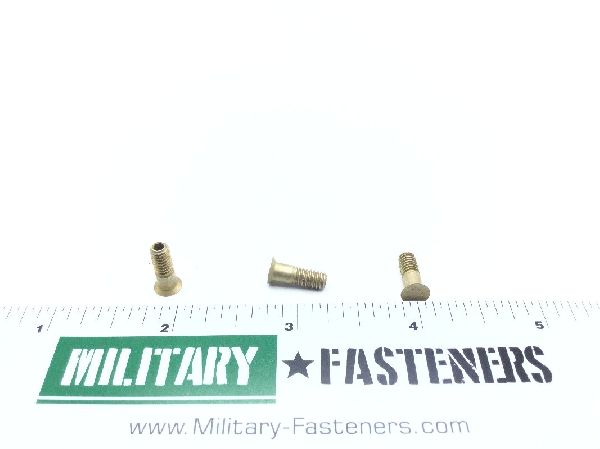

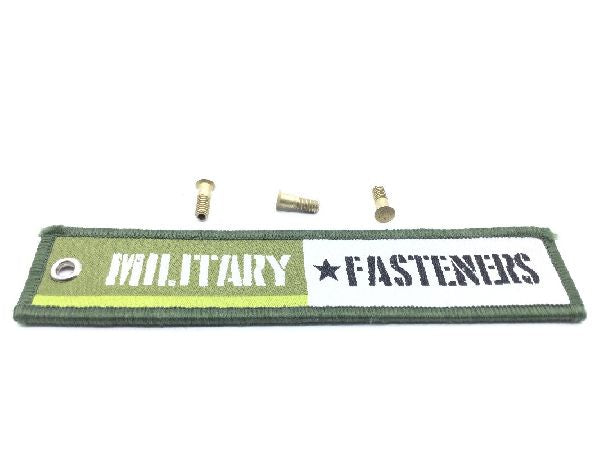

HL19PB5-3 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $2.20

Units per Pack 20

Price per Pack $44.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $44.00

Add item to quote

Head Style

Flush countersunk

Material

Steel comp

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100 degrees
Fastener Length: Between 0.490 inches and 0.510 inches
Grip Length: 0.193 inches
Head Major Diameter: Between 0.256 inches and 0.261 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-5626 military specification 3rd material response or mil-s-6049 military specification 4th material response
Shank Diameter: Between 0.163 inches and 0.164 inches
Shank Style: Threaded
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.079 inches and 0.080 inches
