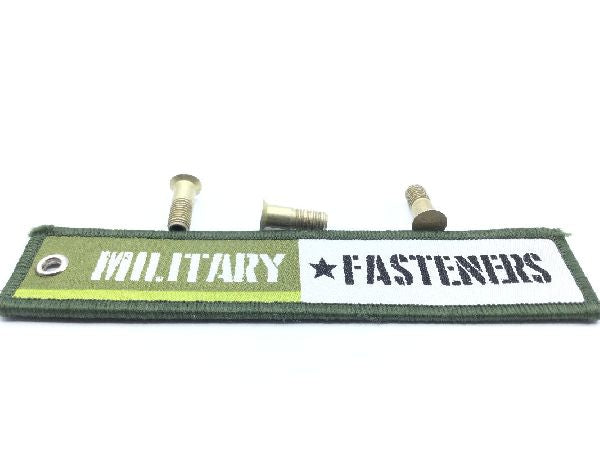

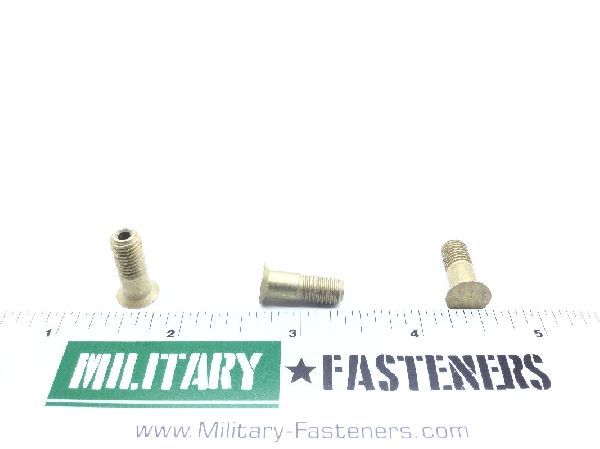

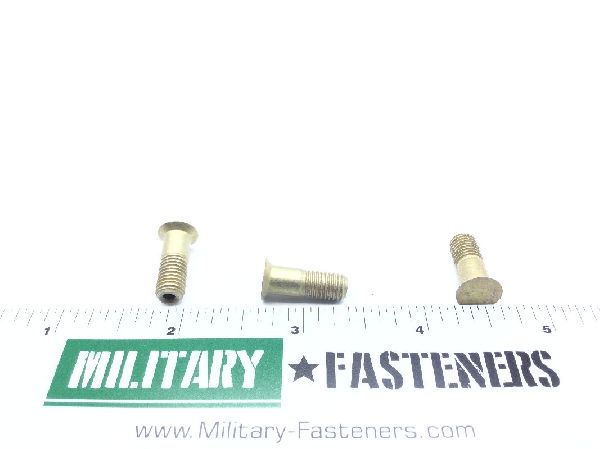

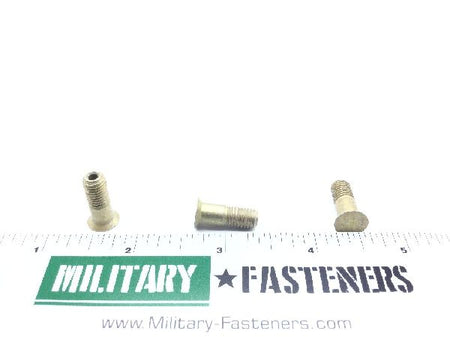

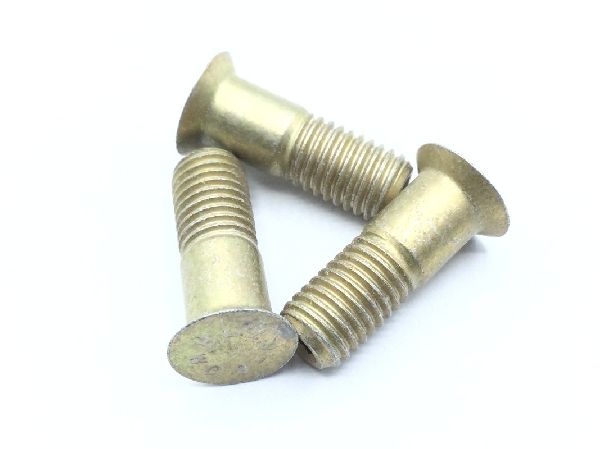

HL19PB8-5 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $4.62

Units per Pack 10

Price per Pack $46.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $46.20

Add item to quote

Head Style

Flush countersunk

Material

Steel comp

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.250 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.697 inches and 0.717 inches
Grip Length: 0.317 inches
Head Major Diameter: 0.349 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-5626 military specification 3rd material response or mil-s-6049 military specification 4th material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.249 inches and 0.250 inches
Shank Style: Threaded
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.095 inches and 0.097 inches
Lubrication: Cetyl alcohol
