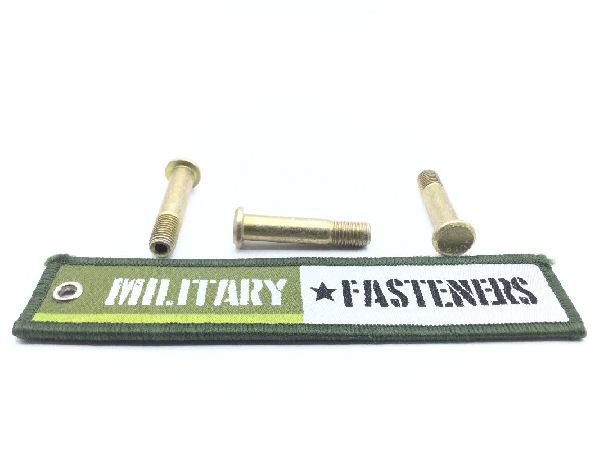

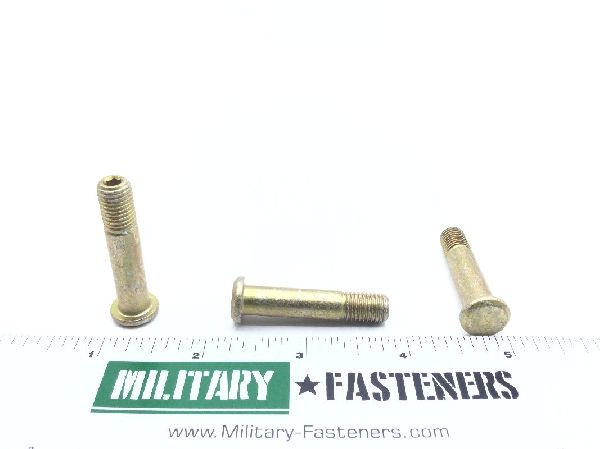

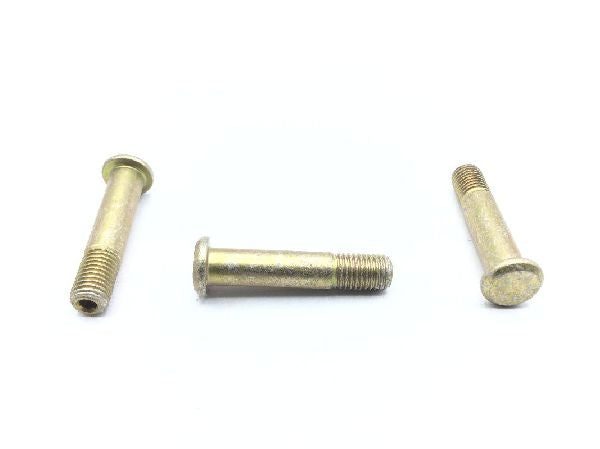

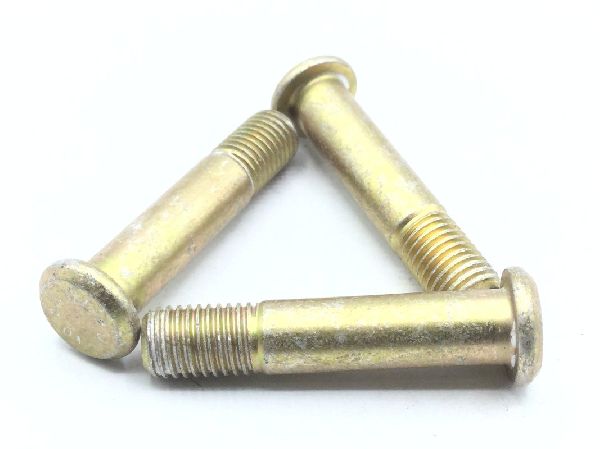

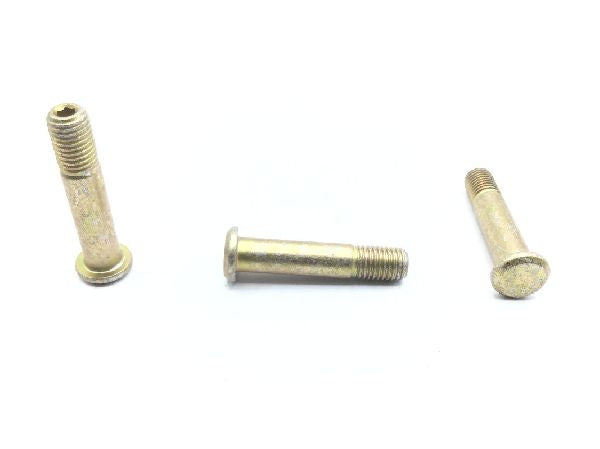

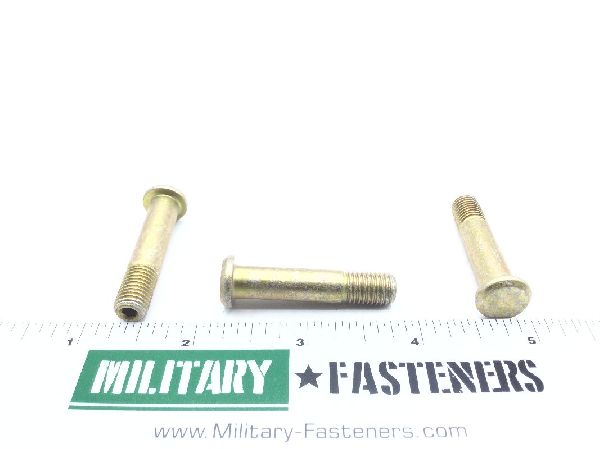

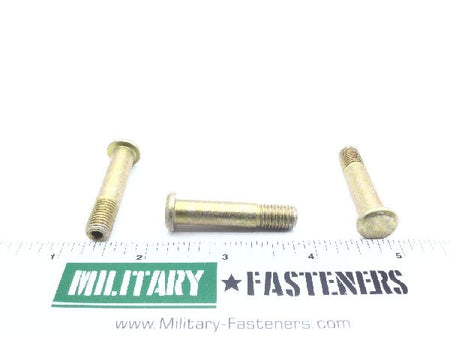

HL20PB10-16 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $11.78

Units per Pack 5

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Straight pan

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.312 inches

Fastener Length: Between 1.490 inches and 1.510 inches
Grip Length: Between 0.995 inches and 1.005 inches
Head Height: Between 0.098 inches and 0.112 inches
Head Major Diameter: Between 0.472 inches and 0.502 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.3110 inches and 0.3120 inches
Shank Style: Threaded
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.1270 inches and 0.1295 inches
Lubrication: Cetyl alcohol
