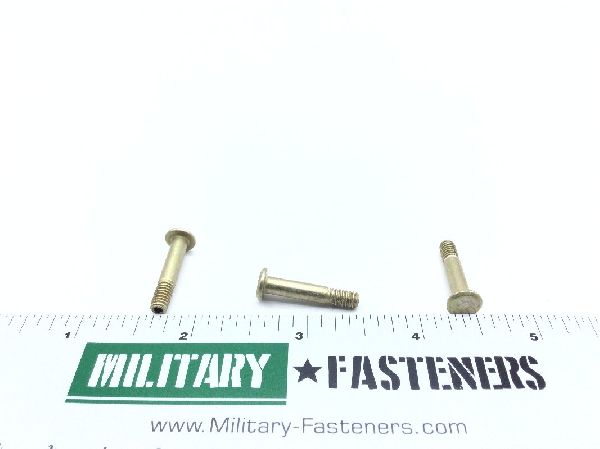

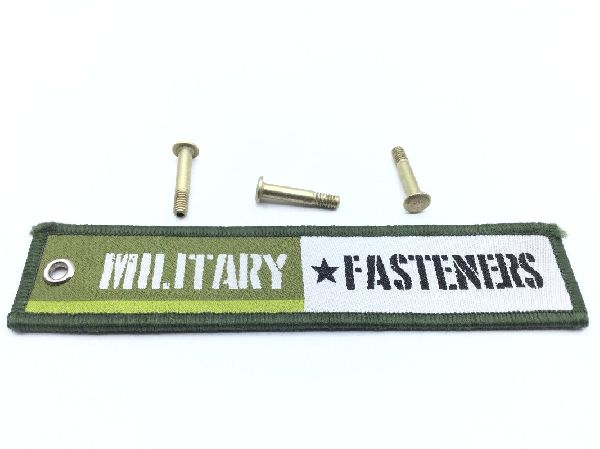

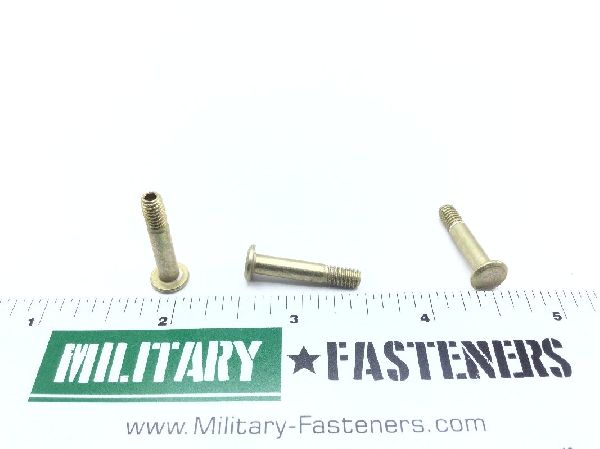

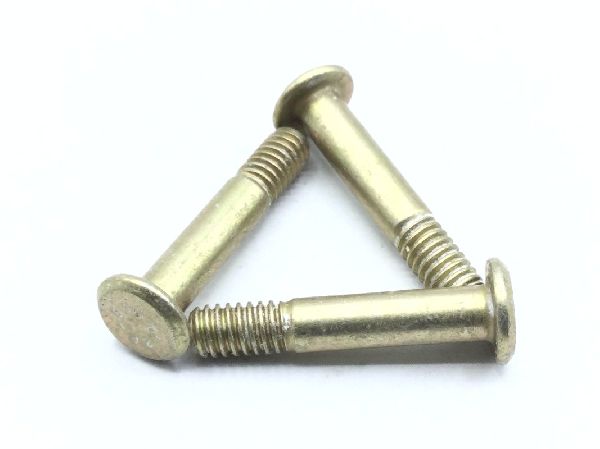

HL20PB5-9 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Err-090

Material

Steel comp 4140 or steel comp 8740 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 0.828 inches and 0.848 inches
Grip Length: 0.567 inches
Head Height: Between 0.055 inches and 0.060 inches
Head Major Diameter: Between 0.306 inches and 0.322 inches
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-6758 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.163 inches and 0.164 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.079 inches and 0.080 inches
