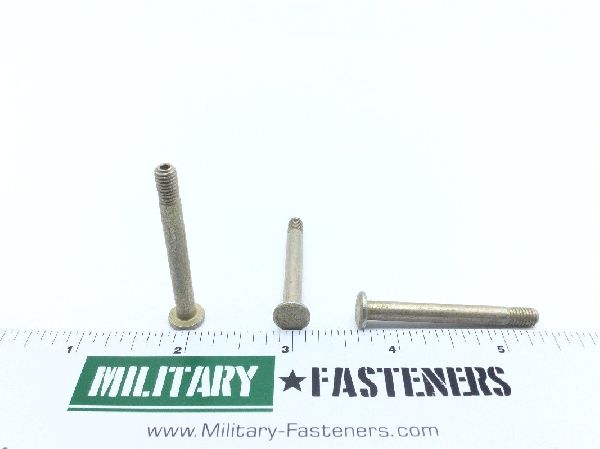

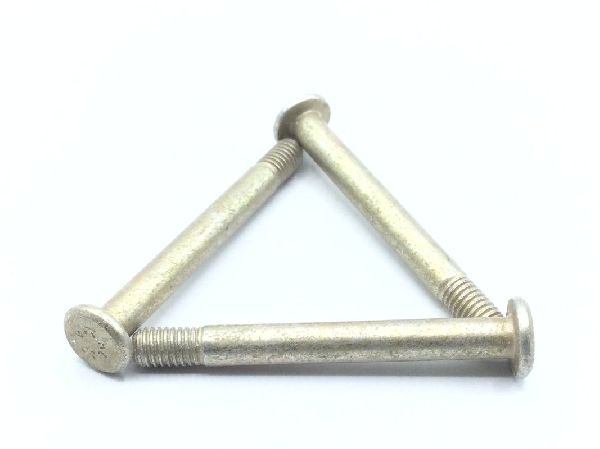

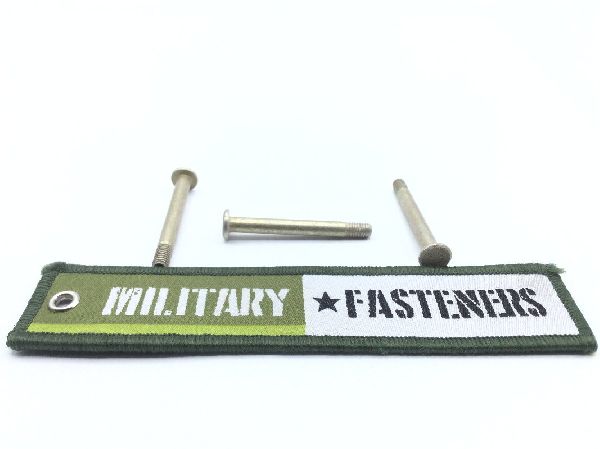

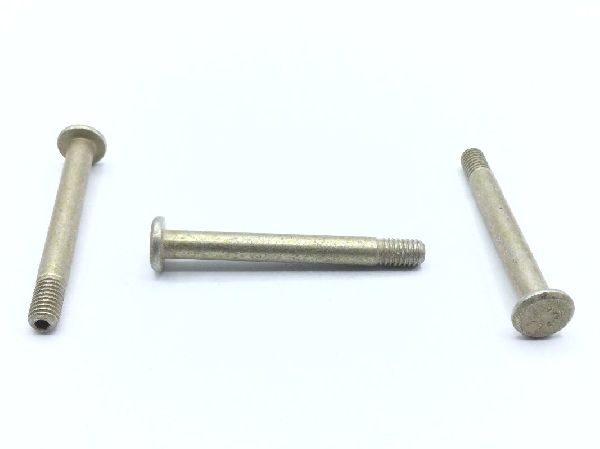

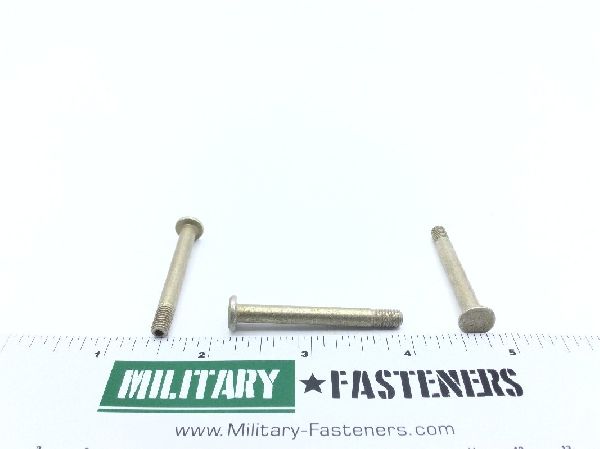

HL20PB6-22 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $3.78

Units per Pack 10

Price per Pack $37.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $37.80

Add item to quote

Head Style

Straight pan

Material

Steel comp 8740

Surface Treatment

Type ii.class 2 assn standard single treatment response ams-qq-p-416

Thread Class

Thread Size

0.190 inches

End Application: A-10 aircraft
Fastener Length: Between 1.690 inches and 1.710 inches
Grip Length: Between 1.370 inches and 1.380 inches
Head Height: Between 0.064 inches and 0.074 inches
Head Major Diameter: Between 0.357 inches and 0.377 inches
Material Specification: Ams 6049 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Part Name Assigned By Controlling Agency: Protruding head alloy steel hi-lok pin
Shank Diameter: Between 0.188 inches and 0.190 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 5380 double pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.104 inches and 0.119 inches
Lubrication: Hi-shear corp specification 305 cetyl alcohol
