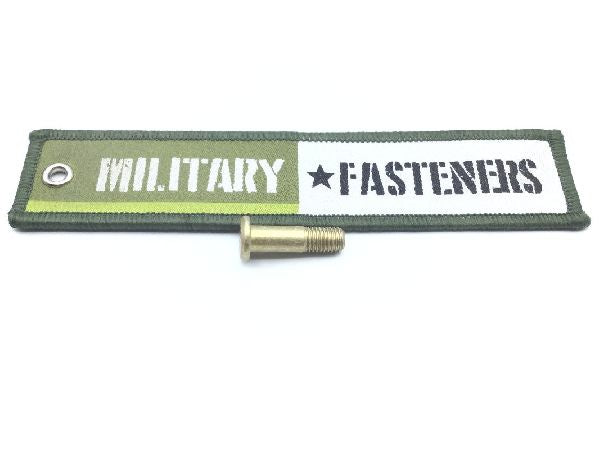

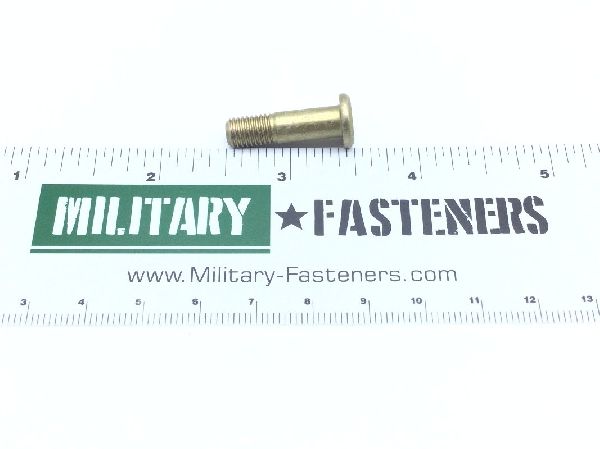

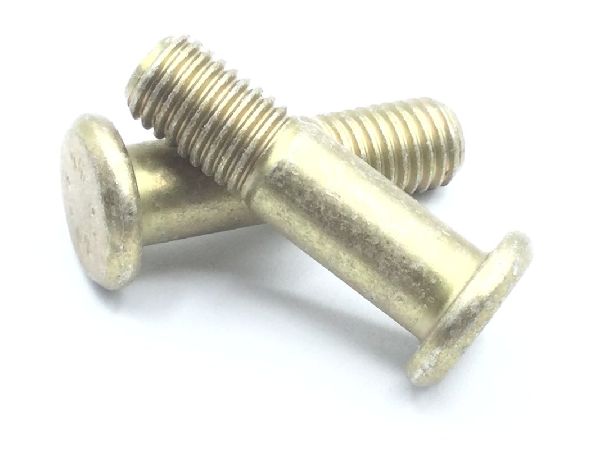

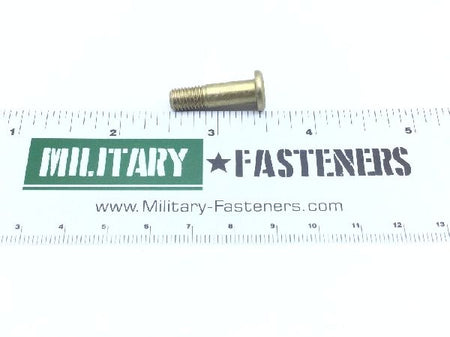

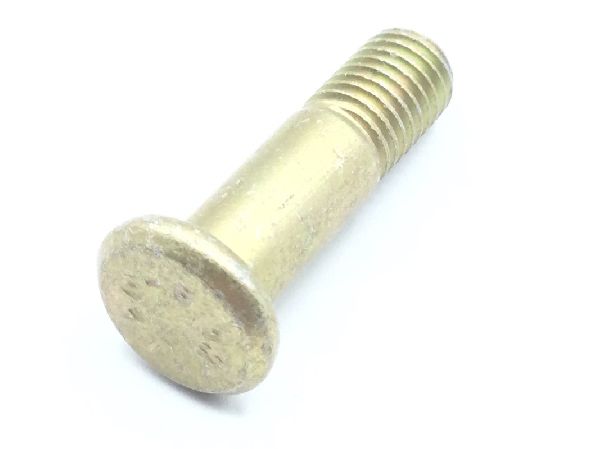

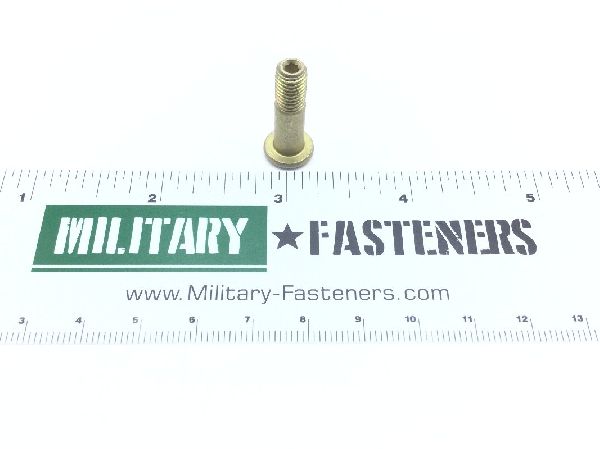

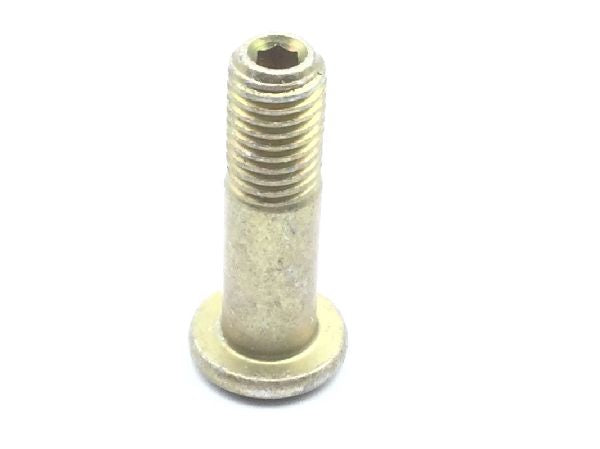

HL20PB8-8 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $4.15

Units per Pack 10

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.250 inches

Fastener Length: Between 0.885 inches and 0.905 inches
Grip Length: 0.505 inches
Head Height: Between 0.077 inches and 0.090 inches
Head Major Diameter: Between 0.415 inches and 0.440 inches
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-6758 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.249 inches and 0.250 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.095 inches and 0.097 inches
