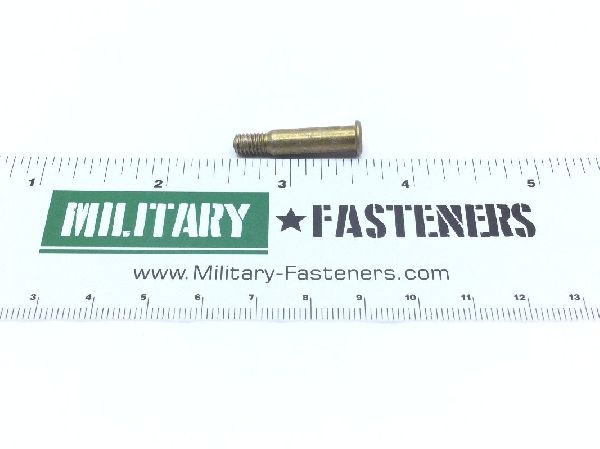

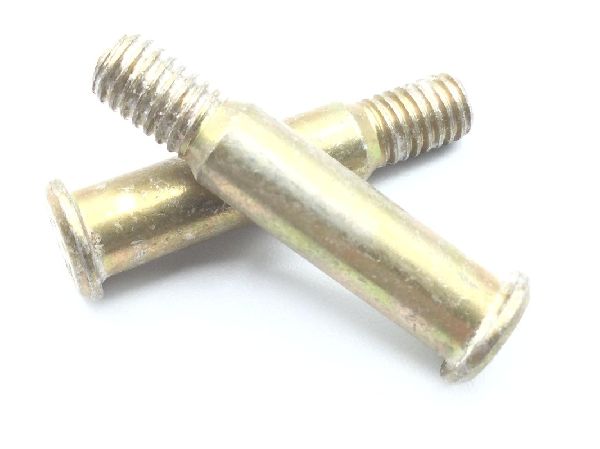

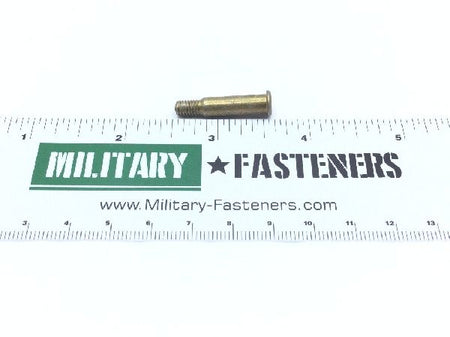

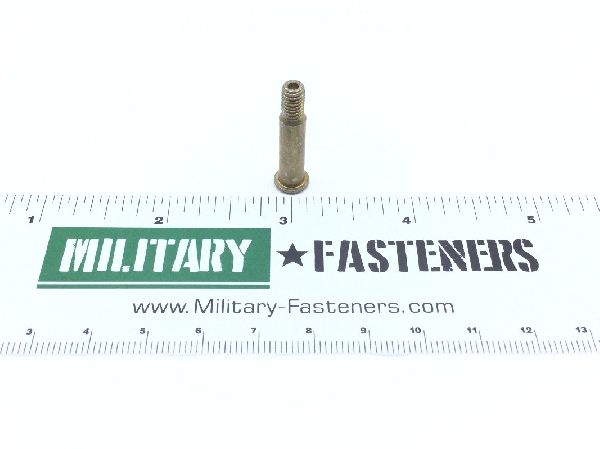

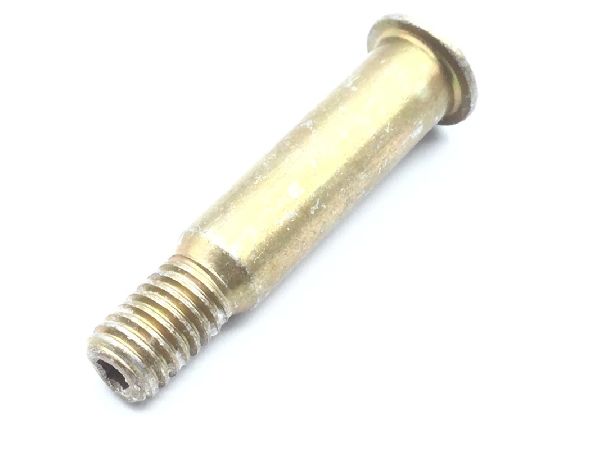

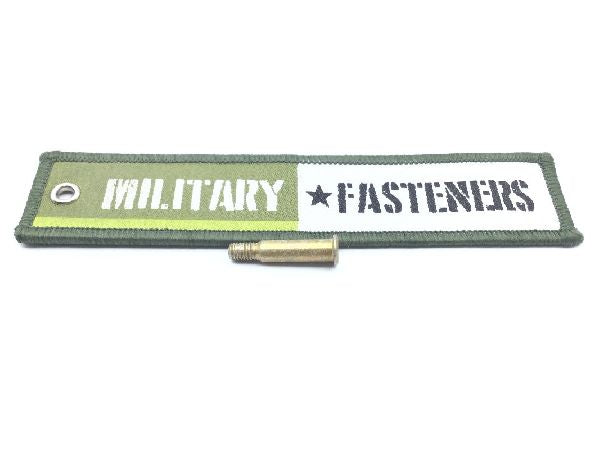

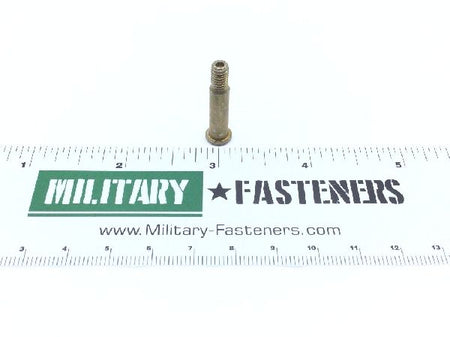

HL218-6-11 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $3.46

Units per Pack 10

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Head Style

Err-090

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.190 inches

Fastener Length: Between 1.003 inches and 1.023 inches
Grip Length: 0.693 inches
Head Height: Between 0.045 inches and 0.055 inches
Head Major Diameter: Between 0.295 inches and 0.315 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.2172 inches and 0.2182 inches
Shank Style: Threaded
Shear Strength: 95000 single pounds per square inch
Special Features: Color bronze
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0791 inches and 0.0806 inches
Lubrication: Cetyl alcohol
