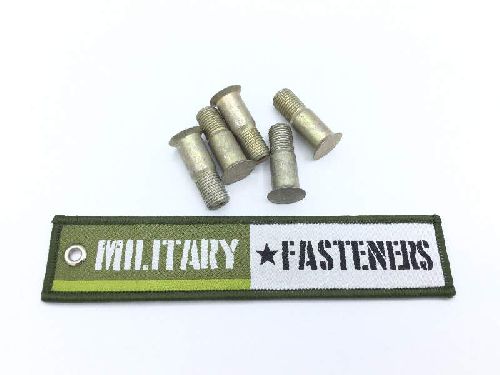

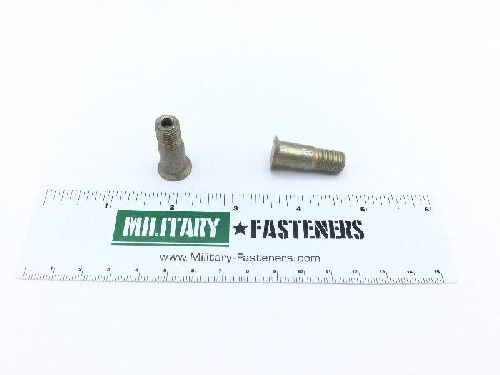

HL219-12-10 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $7.88

Units per Pack 5

Price per Pack $39.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $39.40

Add item to quote

Head Style

Flush countersunk

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740

Surface Treatment

class 2 federal specification single treatment response type ii qq-p-416

Thread Size

0.375 inches

Countersink Angle: 100.0 degrees
Fastener Length: 1.179 inches
Grip Length: 0.625 inches
Head Major Diameter: Between 0.5866 inches and 0.5916 inches
Material Specification: Mil-s-5000 military specification single material response or mil-s-5628 military specification single material response or mil-s-6 49 military specification single material response
Shank Diameter: Between 0.197 inches and 0.217 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 24600 double pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.1582 inches and 0.1617 inches
