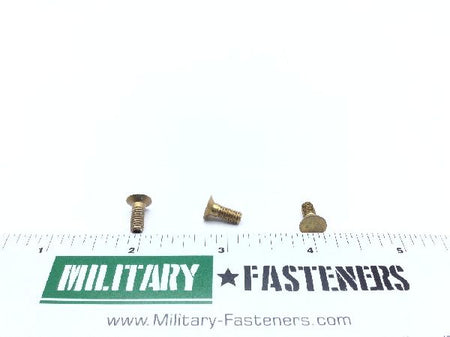

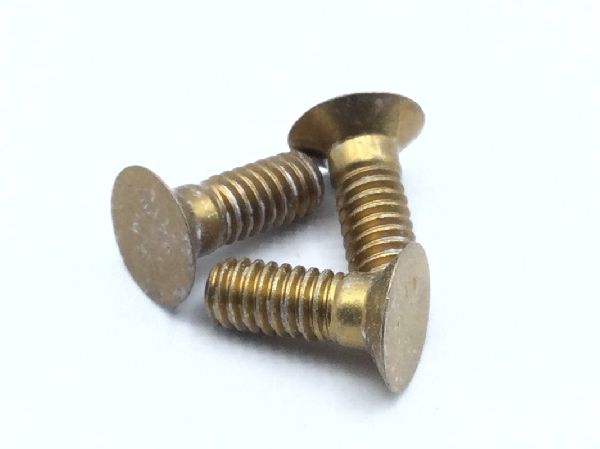

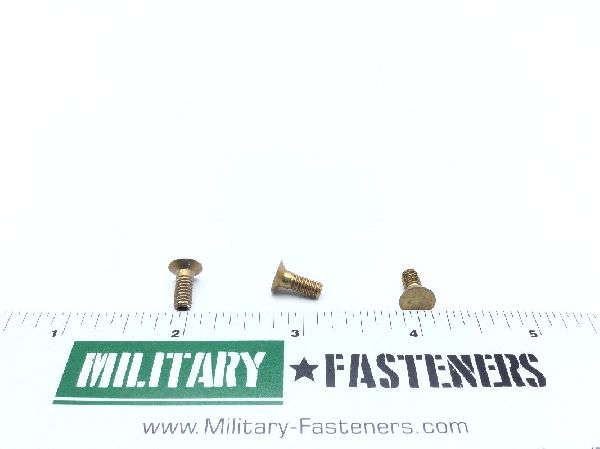

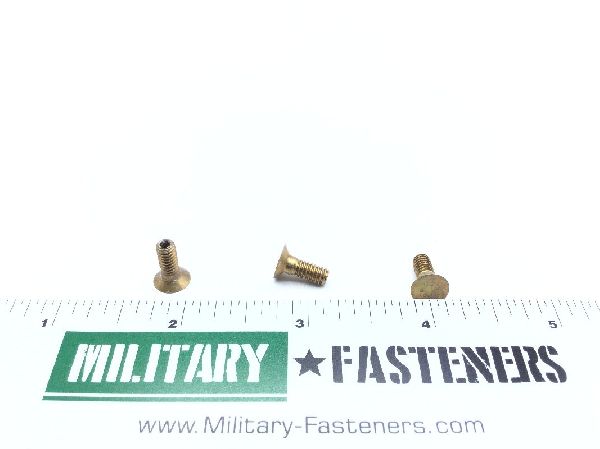

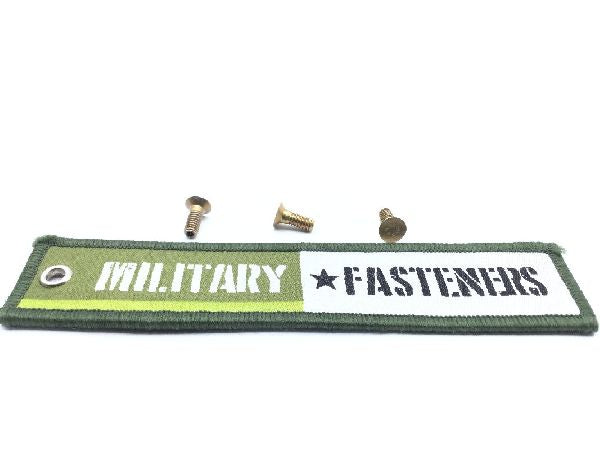

HL21PB5-2 Pin-Rivet

Product Series: HL
ECCN: 9A991
Schedule: 7616.10.3000

Price per Unit $2.15

Units per Pack 20

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Head Style

Flush countersunk

Material

Steel comp

Surface Treatment

Class 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.427 inches and 0.447 inches
Grip Length: 0.130 inches
Head Major Diameter: 0.3304 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0791 inches and 0.0801 inches
Lubrication: Cetyl alcohol
