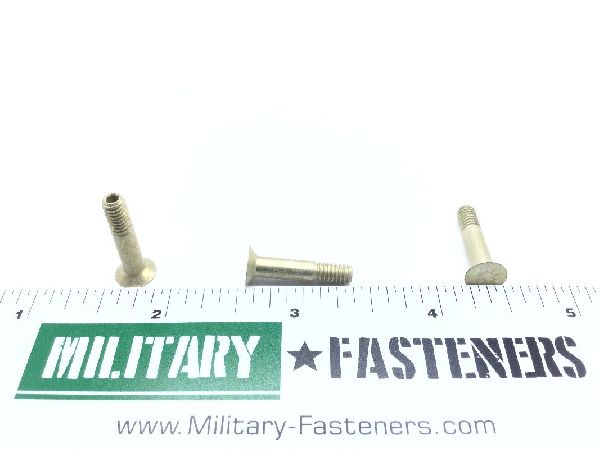

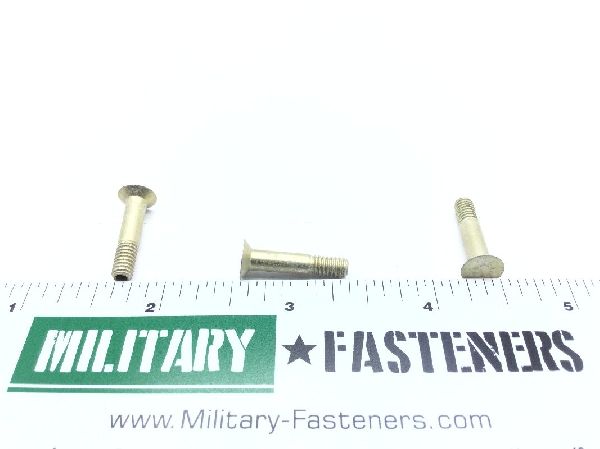

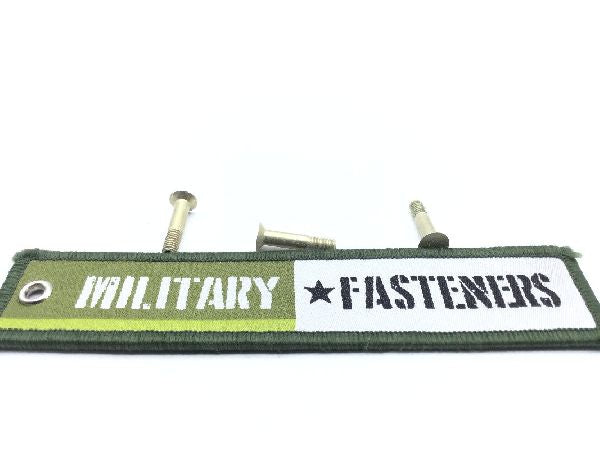

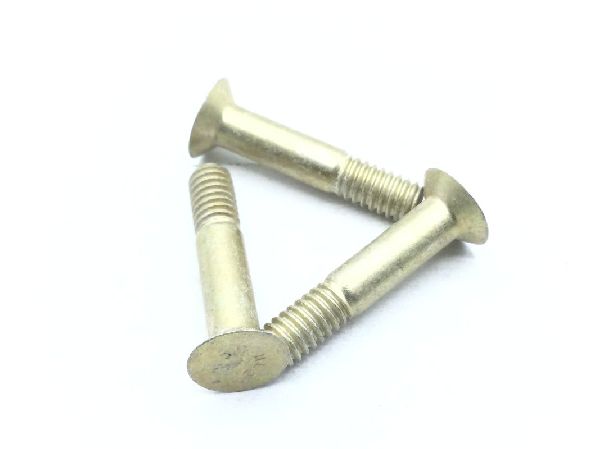

HL21PB5-8 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $3.12

Units per Pack 10

Price per Pack $31.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $31.20

Add item to quote

Head Style

Flush countersunk

Material

Steel comp 4140 or steel comp 4130 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.802 inches and 0.822 inches
Grip Length: 0.505 inches
Head Major Diameter: Between 0.326 inches and 0.330 inches
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-6758 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Shank Diameter: Between 0.163 inches and 0.164 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.079 inches and 0.080 inches
