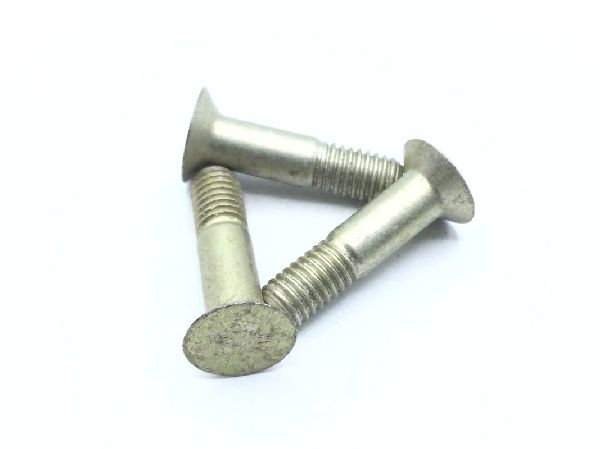

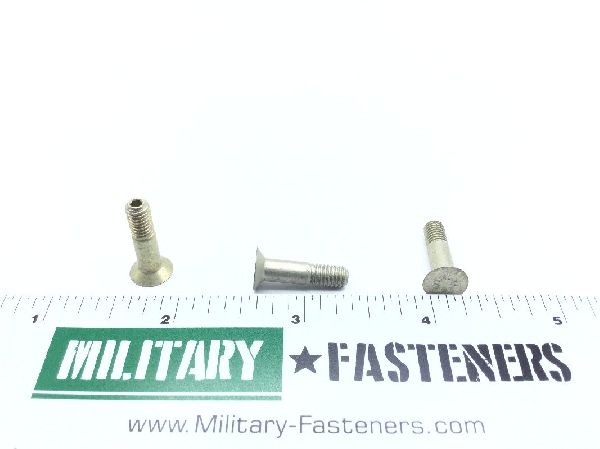

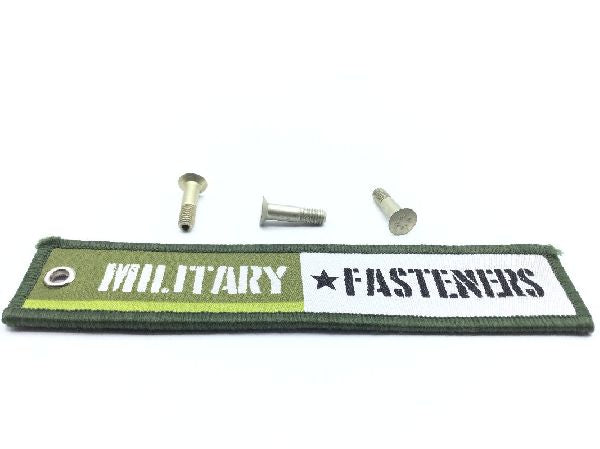

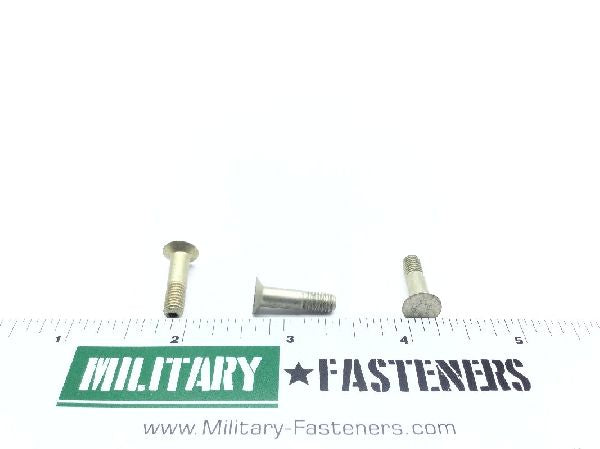

HL21PB6-7 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $3.12

Units per Pack 20

Price per Pack $62.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $62.40

Add item to quote

Head Style

Flush countersunk

Material

Steel comp 4140 or steel comp 8740 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.190 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.753 inches and 0.773 inches
Grip Length: 0.443 inches
Head Major Diameter: Between 0.377 inches and 0.381 inches
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-6758 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.189 inches and 0.190 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.079 inches and 0.081 inches
