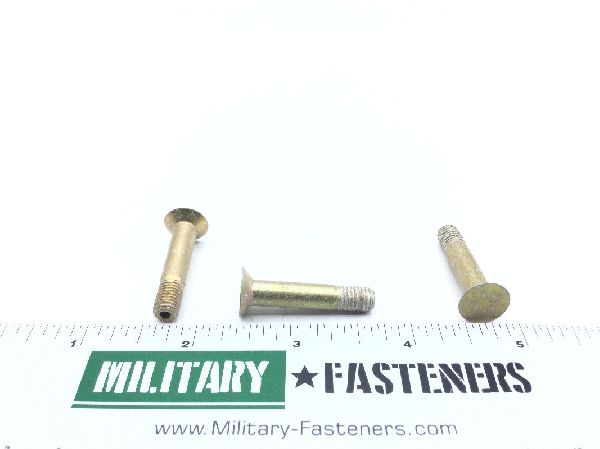

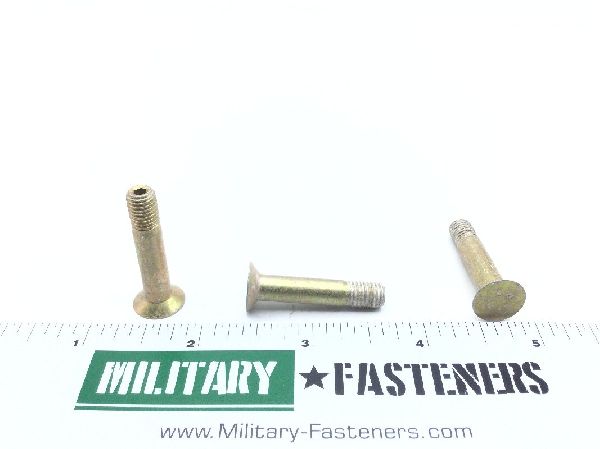

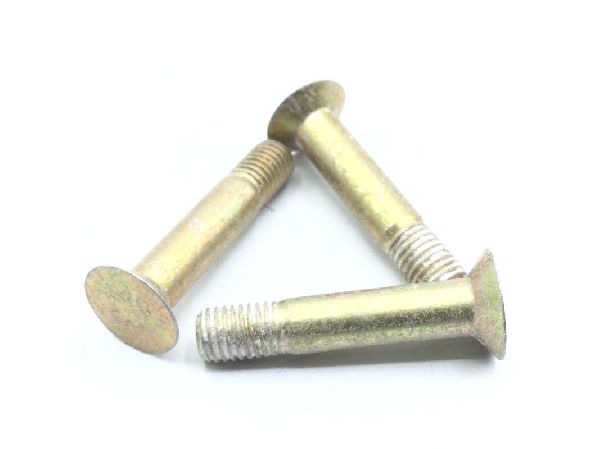

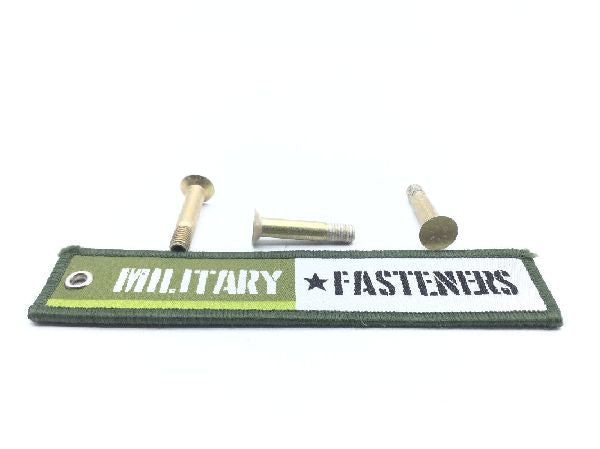

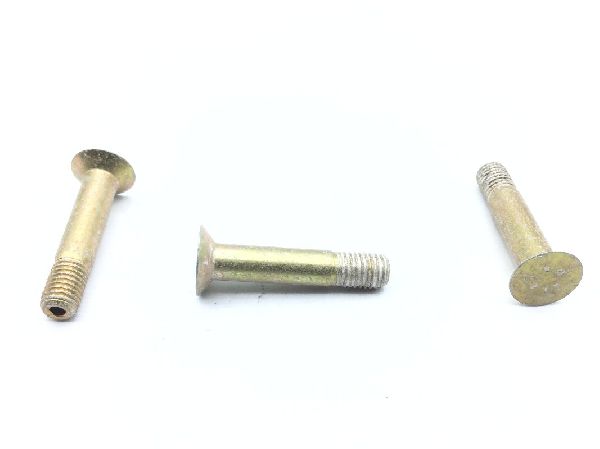

HL21PB8-14 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $13.17

Units per Pack 5

Price per Pack $65.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $65.85

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 4130 or steel comp 4140 or steel comp 8740

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.260 inches and 1.280 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.870 inches and 0.880 inches
Internal Drive Style: Hexagon
Special Features: 0.200 in. deep drilled hole thd end 0.122 to 0.142 in. dia
Surface Finish: 63.0 microinches bearing surface of head
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.380 inches and 0.410 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Across Flats: Between 0.095 inches and 0.097 inches
Head Diameter: Between 0.464 inches and 0.510 inches
