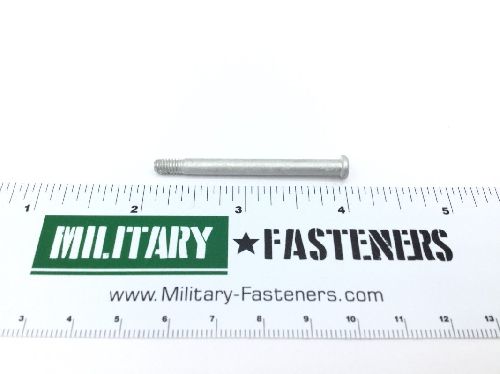

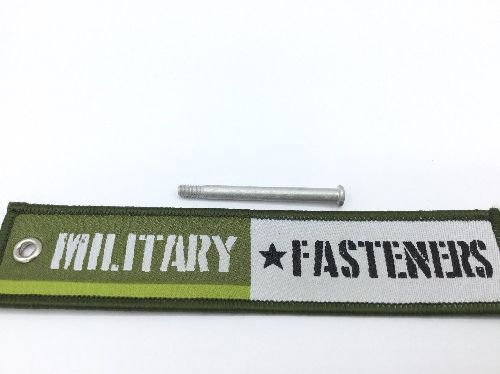

HL22-5-25 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $26.40

Units per Pack 2

Price per Pack $52.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $52.80

Add item to quote

Head Style

Err-090

Material

Aluminum alloy 7075

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 1.864 inches and 1.884 inches
Grip Length: 1.567 inches
Head Height: Between 0.045 inches and 0.060 inches
Head Major Diameter: Between 0.242 inches and 0.262 inches
Heat Treatment: T-6 solution heat treated
Material Specification: Qq-a-225/9 federal specification single material response or qq-a-430 federal specification single material response
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 1760 double pounds per square inch
Thread Direction: Right-hand
Thread Series Designator: Unjc
Width Between Flats: Between 0.064 inches and 0.065 inches
Lubrication: Cetyl alcohol
