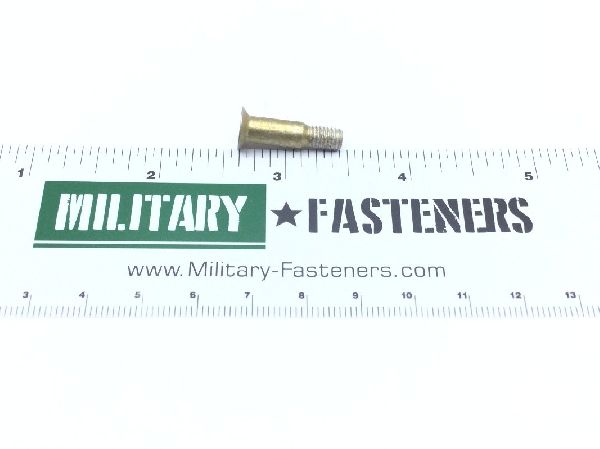

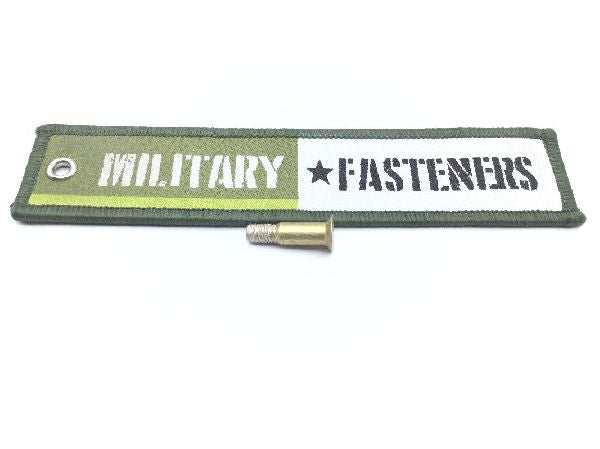

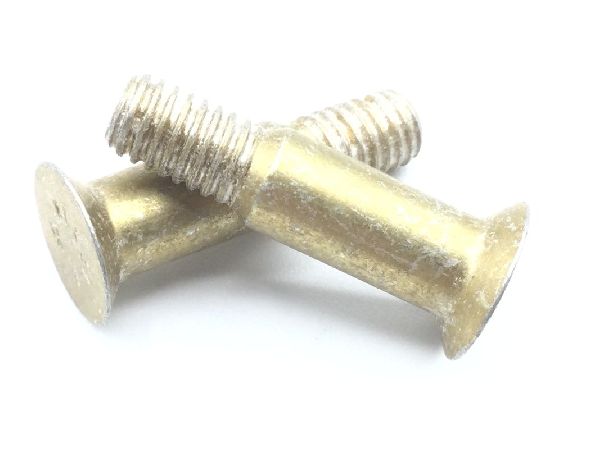

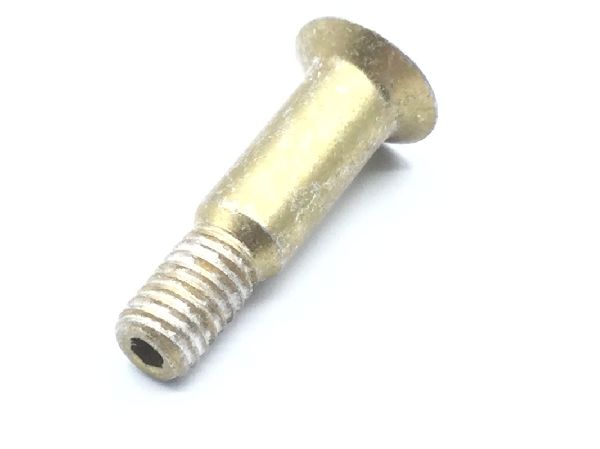

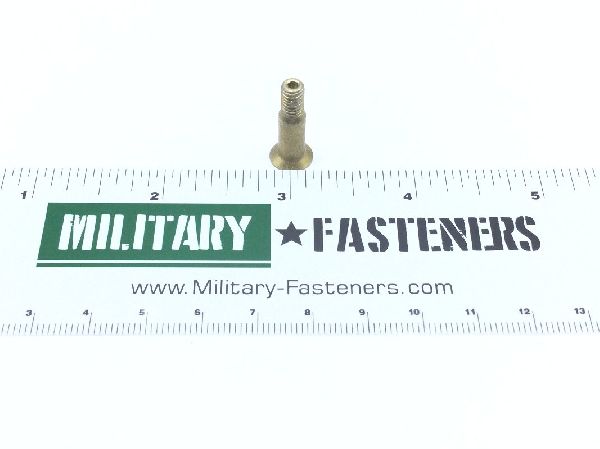

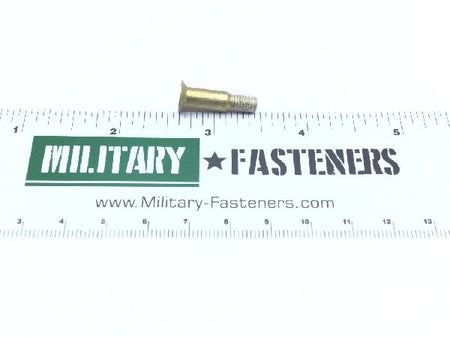

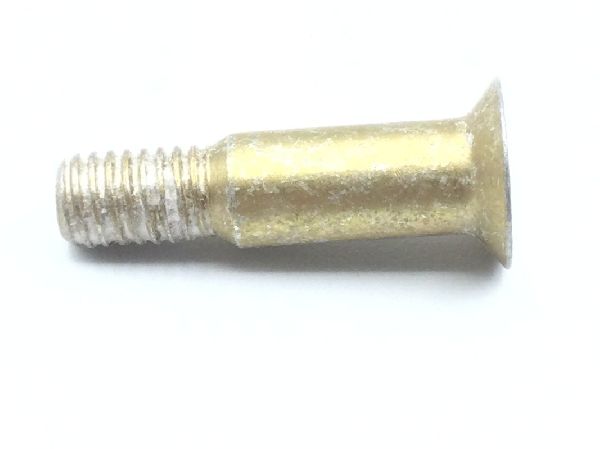

HL221-6-8 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush countersunk

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740

Surface Treatment

Qq-p-416 ty ii cl 2 federal specification all treatment responses

Thread Class

Thread Size

0.190 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.815 inches and 0.835 inches
Grip Length: Between 0.495 inches and 0.505 inches
Head Major Diameter: Between 0.3765 inches and 0.3813 inches
Material Specification: Mil-s-5000 military specification single material response or mil-s-5626 military specification single material response or mil-s-6049 military specification single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.2172 inches and 0.2182 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 7100 double pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0791 inches and 0.0806 inches
Lubrication: hi-shear corp specification 305 cetyl alcohol
