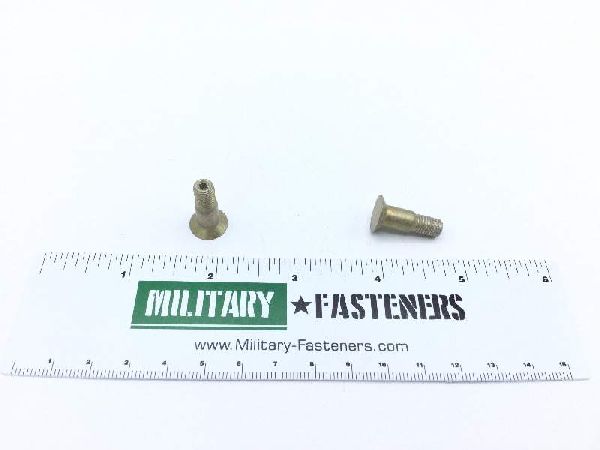

HL221-8-7 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush countersunk

Material

Steel

Surface Treatment

Qq-p-416 ty ii cl 2 federal specification all treatment responses

Thread Class

Thread Size

0.250 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.8225 inches and 0.8425 inches
Grip Length: Between 0.4325 inches and 0.4425 inches
Head Major Diameter: Between 0.5018 inches and 0.5066 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.2797 inches and 0.2807 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 11800 double pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0947 inches and 0.0967 inches
Lubrication: Hi-shear corp specification 305 cetyl alcohol
