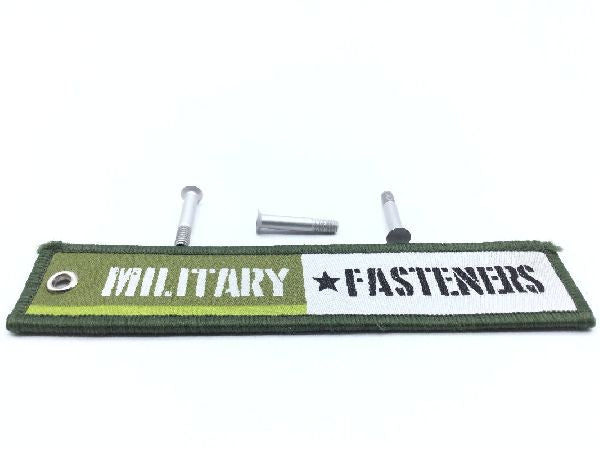

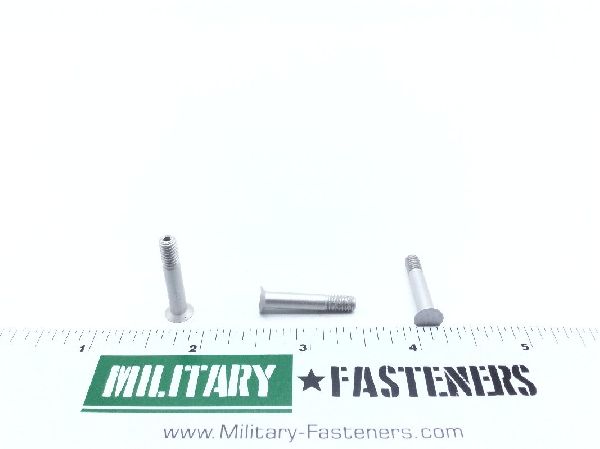

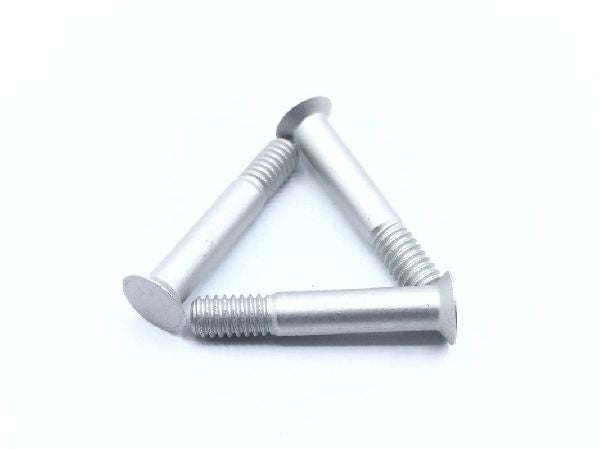

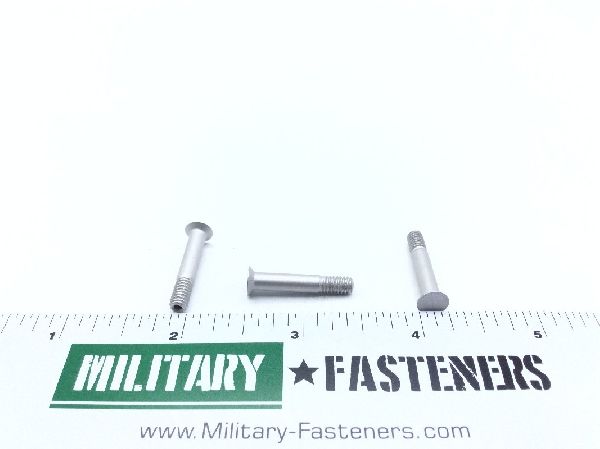

HL23-5-10 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush countersunk

Material

Aluminum alloy 7075

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
End Application: Galaxy c-5 w/s: aircraft
Fastener Length: Between 0.927 inches and 0.947 inches
Grip Length: 0.630 inches
Head Major Diameter: Between 0.287 inches and 0.292 inches
Heat Treatment: T-6 solution heat treated
Material Specification: Qq-a-225/9 federal specification single material response or qq-a-430 federal specification single material response
Shank Diameter: Between 0.163 inches and 0.164 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Series Designator: Unjc
Width Between Flats: Between 0.064 inches and 0.065 inches
