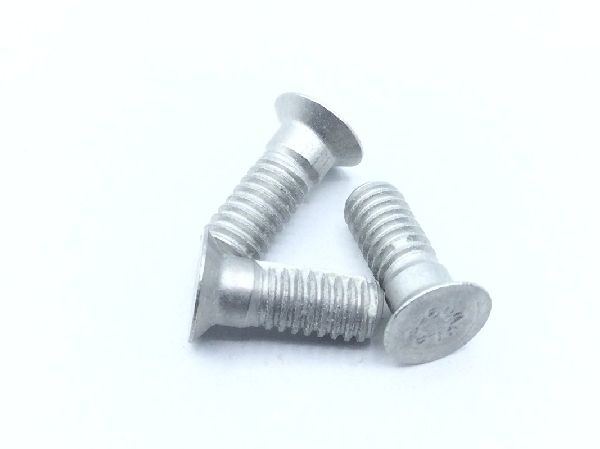

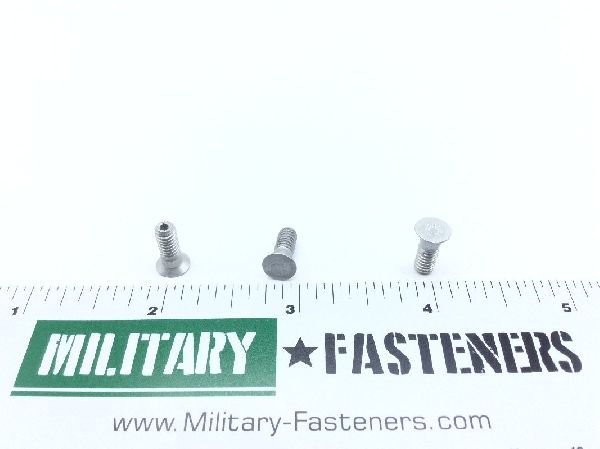

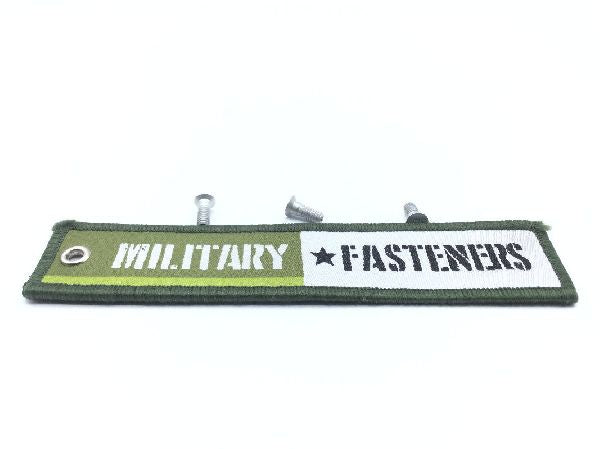

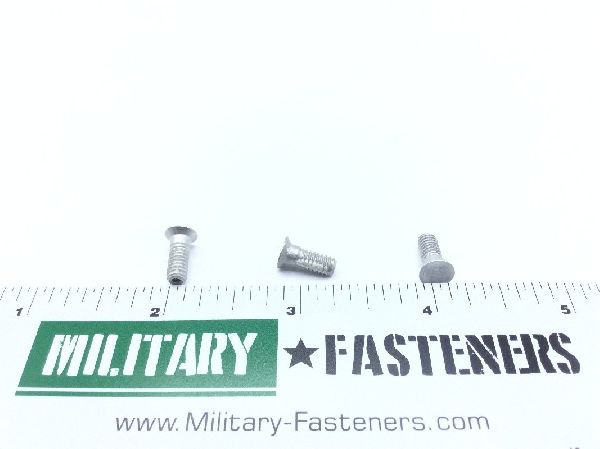

HL23-5-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush countersunk

Material

Aluminum alloy 7075

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Size

0.190 inches

Countersink Angle: 100.0 degrees
Criticality Code Justification: Aazg and aaze and aatb
Fastener Length: Between 0.427 inches and 0.447 inches
Grip Length: Between 0.120 inches and 0.130 inches
Head Major Diameter: Between 0.2874 inches and 0.2922 inches
Heat Treatment: T-6 solution heat treated
Material Specification: Qq-a-430 federal specification 1st material response or qq-a-225/9 federal specification 2nd material response
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 1760 double pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0635 inches and 0.0645 inches
Lubrication: Cetyl alcohol
