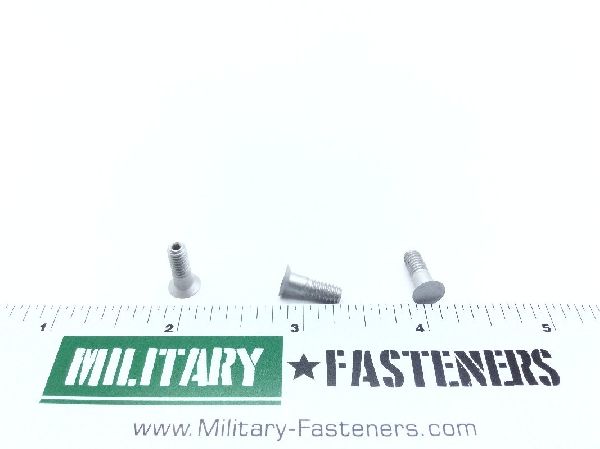

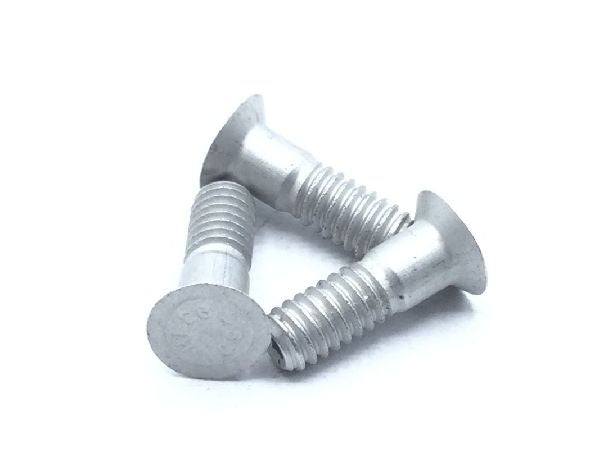

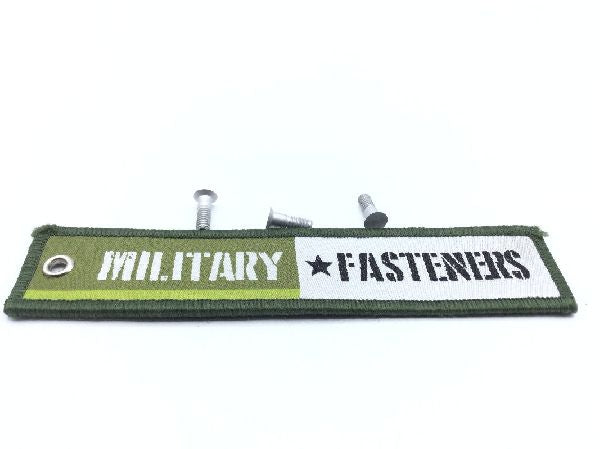

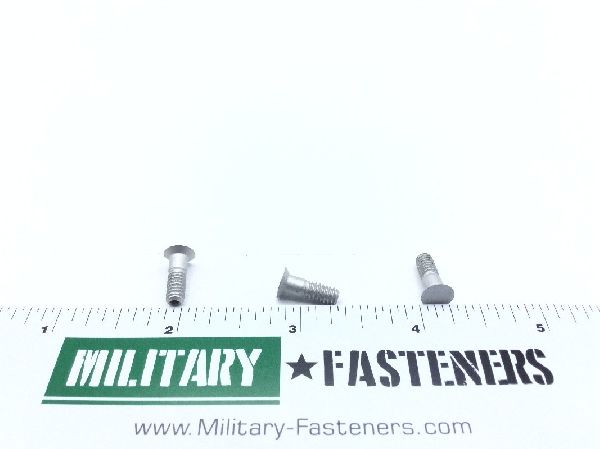

HL23-5-3 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $2.70

Units per Pack 20

Price per Pack $54.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $54.00

Add item to quote

Head Style

Flush countersunk

Material

Aluminum alloy 7075

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
Criticality Code Justification: Aazg and aatb and aaze
Fastener Length: Between 0.490 inches and 0.510 inches
Grip Length: Between 0.183 inches and 0.193 inches
Head Major Diameter: Between 0.2874 inches and 0.2922 inches
Heat Treatment: T-6 solution heat treated
Material Specification: Qq-a-430 federal specification 1st material response or qq-a-225/9 federal specification 2nd material response
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0635 inches and 0.0645 inches
Lubrication: Cetyl alcohol
