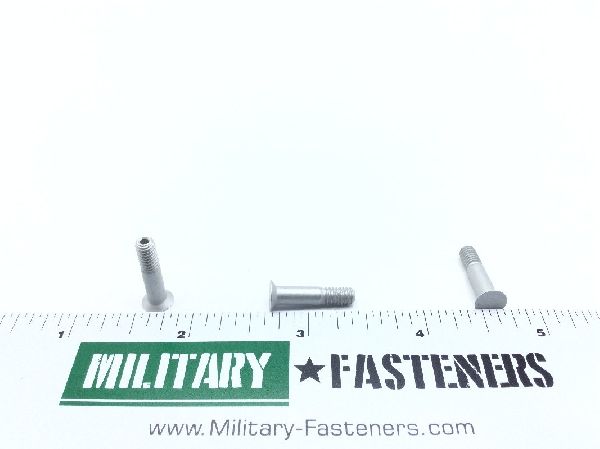

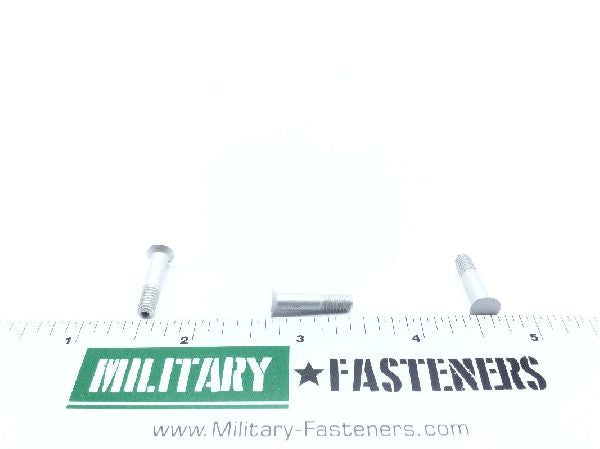

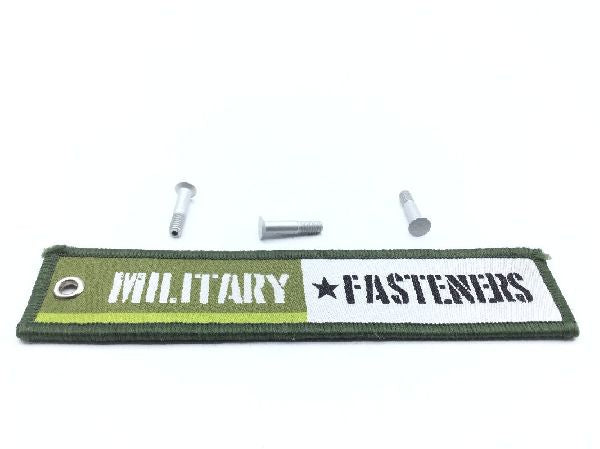

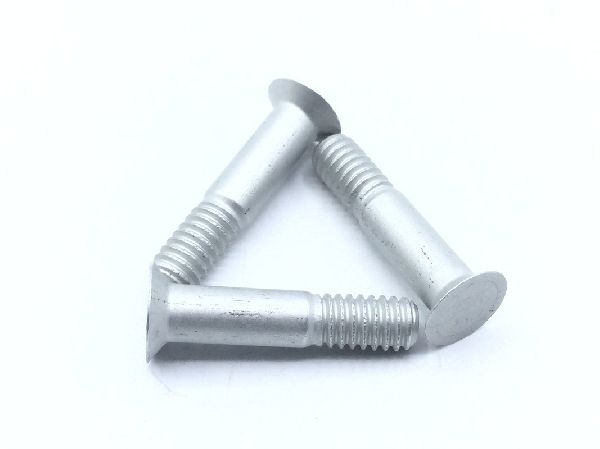

HL23-5-7 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flush countersunk

Material

Aluminum alloy 7075

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.740 inches and 0.760 inches
Grip Length: 0.443 inches
Head Major Diameter: Between 0.287 inches and 0.292 inches
Heat Treatment: T-6 solution heat treated
Material Specification: Qq-a-225/9 federal specification single material response or qq-a-430 federal specification single material response
Shank Diameter: Between 0.1625 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 1760 double pounds per square inch
Thread Direction: Right-hand
Thread Series Designator: Unjc
Width Between Flats: Between 0.064 inches and 0.065 inches
