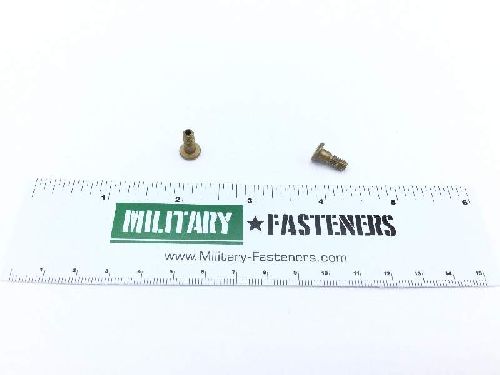

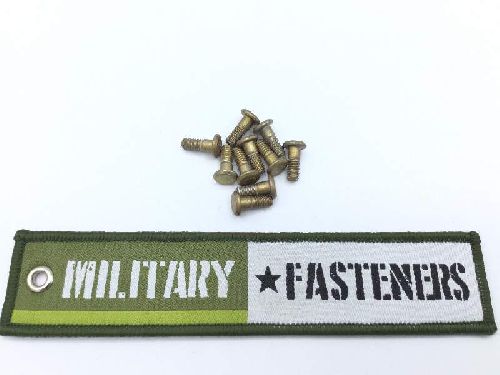

HL326-5-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Err-090

Material

Steel comp e4340 or steel comp 4340 or steel comp 4140 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 0.427 inches and 0.447 inches
Grip Length: 0.130 inches
Head Height: Between 0.055 inches and 0.060 inches
Head Major Diameter: Between 0.306 inches and 0.322 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-5626 military specification 3rd material response or mil-s-6049 military specification 4th material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.1635 inches and 0.1650 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 4010 double pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unjc
Width Between Flats: Between 0.079 inches and 0.080 inches
