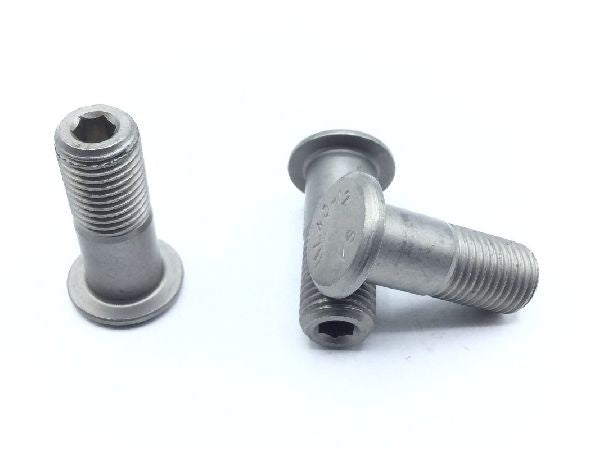

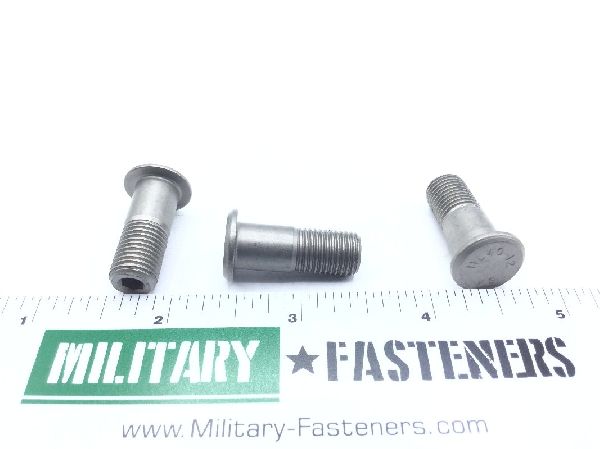

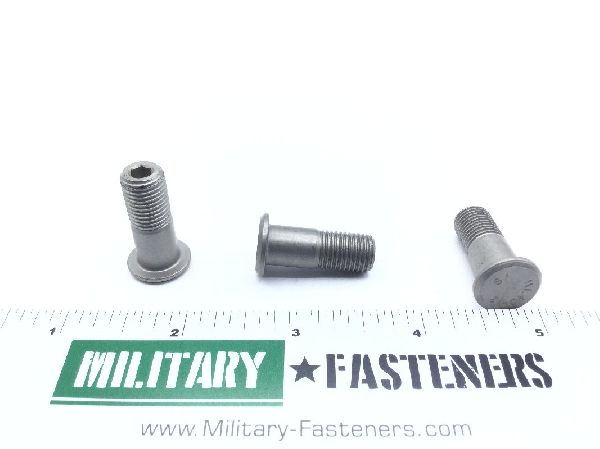

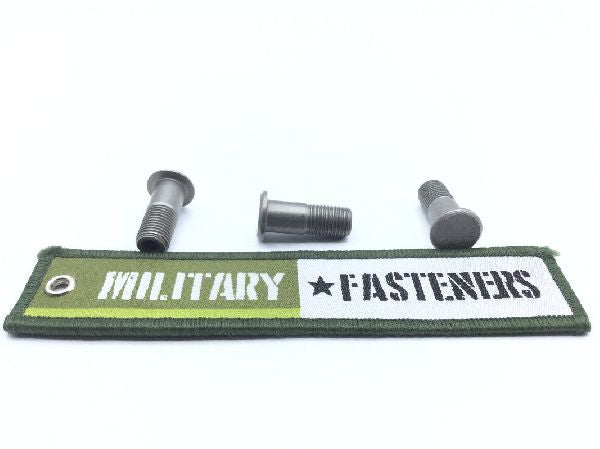

HL40-12-7 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $7.50

Units per Pack 10

Price per Pack $75.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $75.00

Add item to quote

Head Style

Err-090

Material

Iron alloy 660

Surface Treatment

Fscm 73197 mfr ref single treatment response 258

Thread Class

Thread Size

0.375 inches

Fastener Length: Between 0.973 inches and 0.993 inches
Grip Length: 0.443 inches
Head Height: Between 0.078 inches and 0.088 inches
Head Major Diameter: Between 0.565 inches and 0.600 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Shank Diameter: Between 0.3740 inches and 0.3745 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.1582 inches and 0.1617 inches
Lubrication: hi-shear corp specification 305 cetyl alcohol
