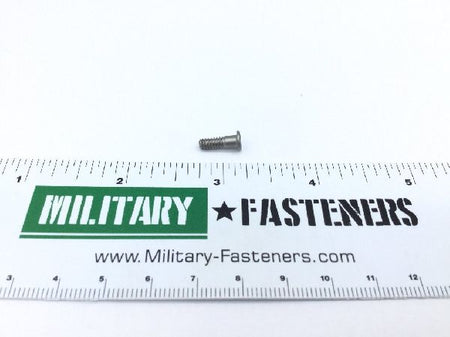

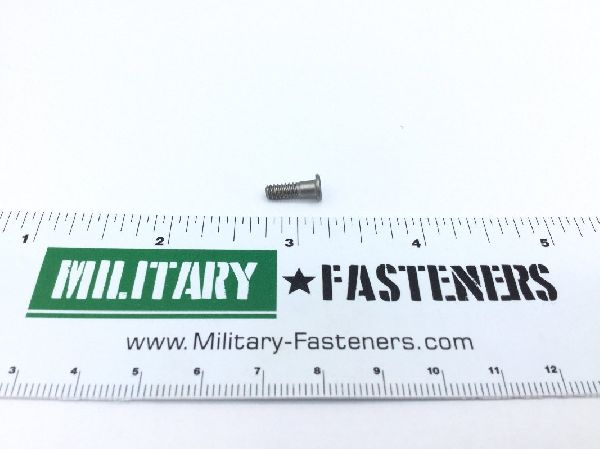

HL40-4-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Straight pan

Material

Stainless Steel

Thread Class

Thread Size

0.138 inches

Fastener Length: 0.419 inches
Grip Length: 0.125 inches
Head Height: Between 0.032 inches and 0.042 inches
Head Major Diameter: Between 0.23 inches and 0.235 inches
Material Specification: Ams5737 federal specification single material response or ams5731 federal specification single material response
Shank Diameter: Between 0.137 inches and 0.1375 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 2840 double pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0635 inches and 0.0645 inches
Lubrication: Hi-shear corp specification 305 cetyl alcohol
