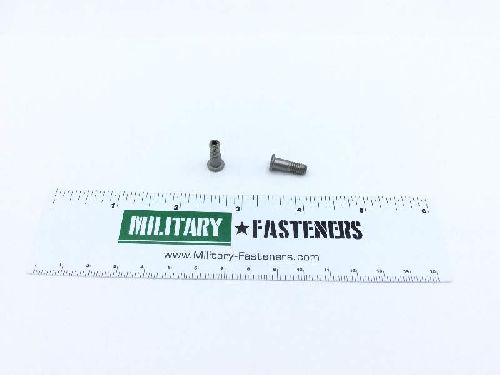

HL40-6-4 Pin-Rivet

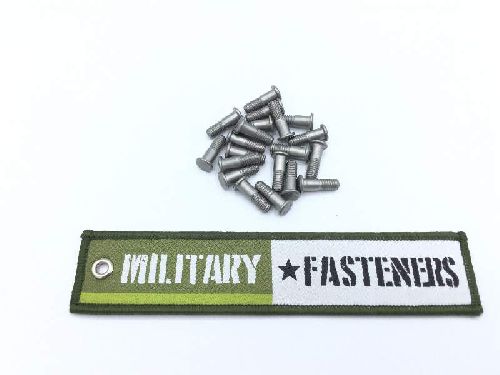

HL40-6-4 Pin-Rivet (2)
HL40-6-4 Pin-Rivet
HL40-6-4 Pin-Rivet (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

HL40-6-4 Pin-Rivet

Product Series
HL
ECCN
EAR99
Schedule
7616.10.3000
Price per Unit $2.98
Units per Pack 20
Price per Pack $59.60
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $59.60
Add item to quote
Head Style
Err-090
Material
Iron alloy 660
Surface Treatment
Fscm 73197 mfr ref single treatment response 258
Thread Class
3a
Thread Size
0.190 inches
Criticality Code Justification
Feat
Fastener Length
Between 0.565 inches and 0.585 inches
Grip Length
0.255 inches
Head Height
Between 0.045 inches and 0.055 inches
Head Major Diameter
Between 0.295 inches and 0.315 inches
Material Specification
Ams 5737 assn standard single material response or ams 5731 assn standard single material response
Shank Diameter
Between 0.189 inches and 0.190 inches
Shank Style
Threaded straight pin-rivet
Shear Strength
95000 single pounds per square inch
Special Features
Weapon system essential
Thread Direction
Right-hand
Thread Series Designator
Unjf (fine thread with external controlled root radius)
Width Between Flats
Between 0.079 inches and 0.081 inches
