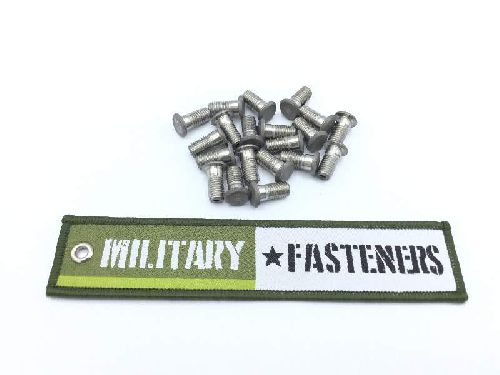

HL40-8-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $1.31

Units per Pack 25

Price per Pack $32.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $32.75

Add item to quote

Head Style

Err-090

Material

Iron alloy

Surface Treatment

Fscm 73197 mfr ref single treatment response 258

Thread Class

Thread Size

0.25 inches

Fastener Length: Between 0.51 inches and 0.53 inches
Grip Length: Between 0.12 inches and 0.13 inches
Head Height: Between 0.059 inches and 0.069 inches
Head Major Diameter: Between 0.387 inches and 0.412 inches
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 3000 pounds per square inch
Shank Diameter: Between 0.2485 inches and 0.2495 inches
Shank Style: Threaded
Shear Strength: 9300 double pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Lubrication: Cetyl alcohol
