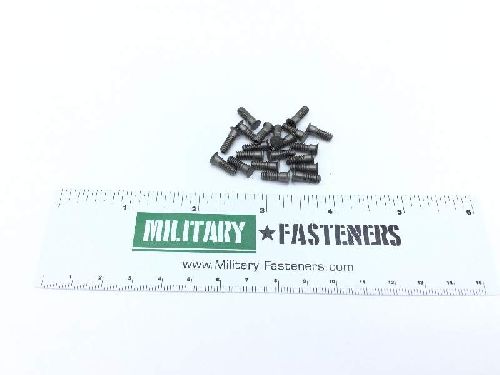

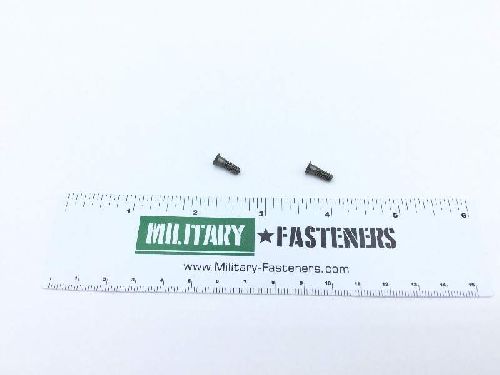

HL41-4-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $2.22

Units per Pack 20

Price per Pack $44.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $44.40

Add item to quote

Head Style

Flush countersunk

Material

Steel

Thread Class

Thread Size

0.138 inches

Countersink Angle: 100 degrees
Criticality Code Justification: Aazg and aaze and aatb
Fastener Length: Between 0.405 inches and 0.425 inches
Grip Length: Between 0.120 inches and 0.130 inches
Head Major Diameter: Between 0.2171 inches and 0.2219 inches
Material Specification: Ams 5737 assn standard 1st material response or ams 5731 assn standard 2nd material response
Shank Diameter: Between 0.137 inches and 0.1375 inches
Shank Style: Threaded straight
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.0635 inches and 0.0645 inches
