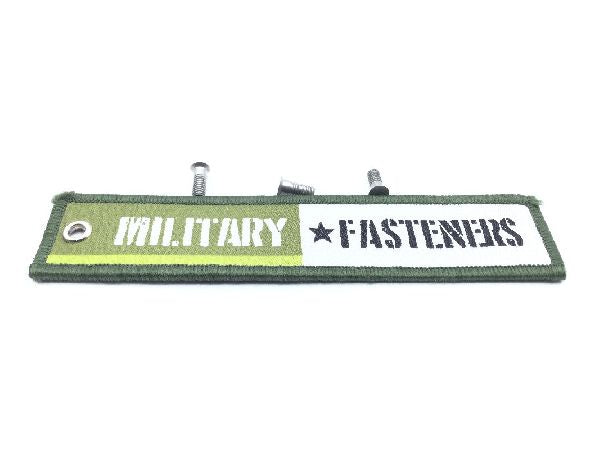

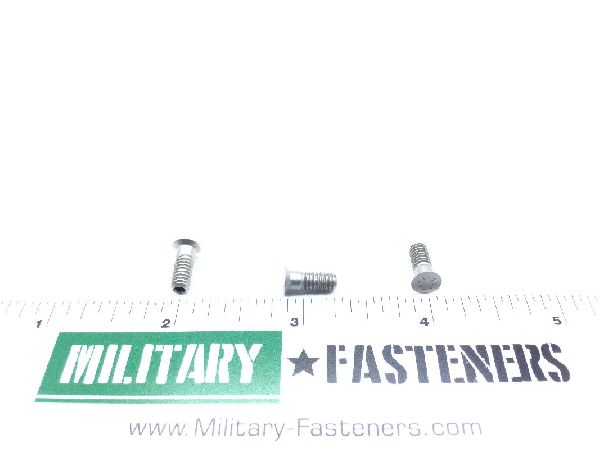

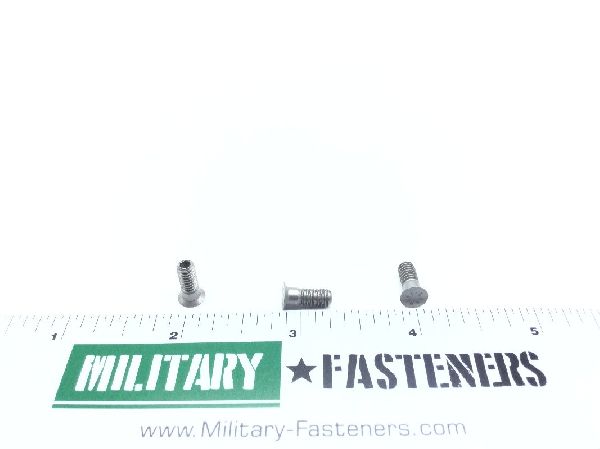

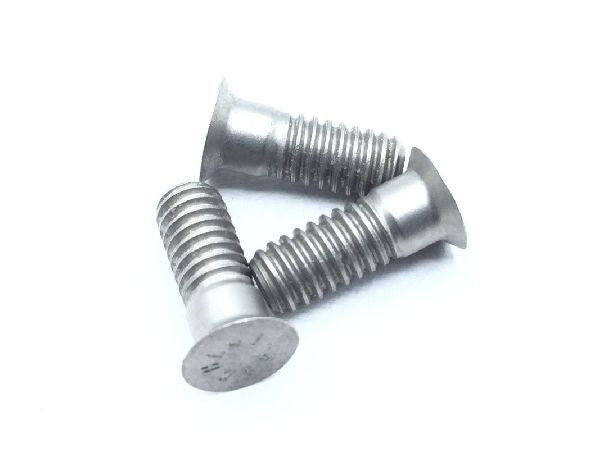

HL41-5-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush countersunk

Material

Iron alloy 660

Surface Treatment

Fscm 73197 mfr ref single treatment response 258

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.427 inches and 0.447 inches
Grip Length: 0.130 inches
Head Major Diameter: Between 0.256 inches and 0.261 inches
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Shank Diameter: Between 0.1630 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.079 inches and 0.080 inches
