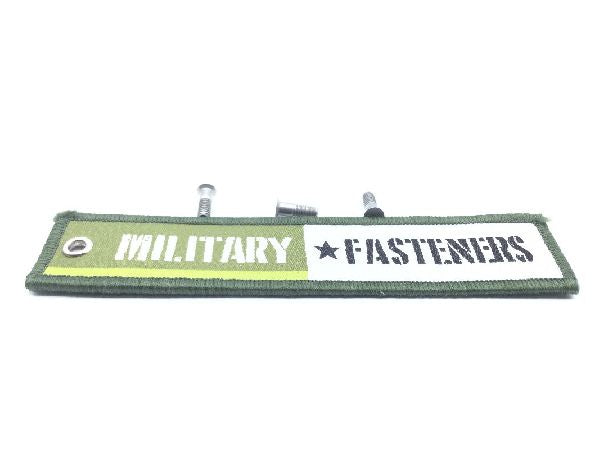

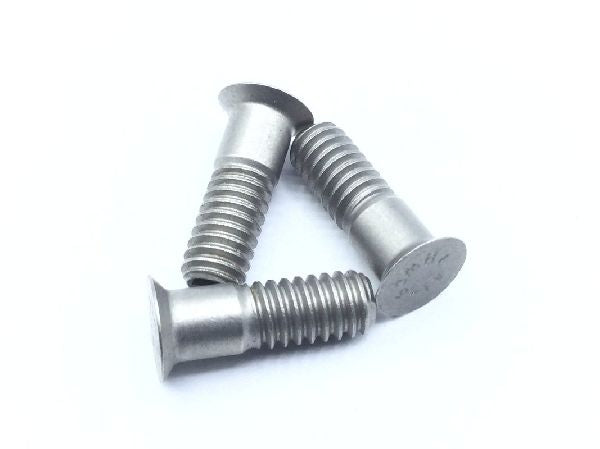

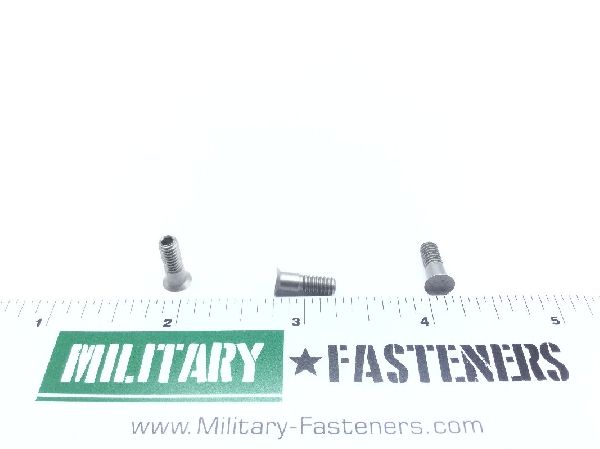

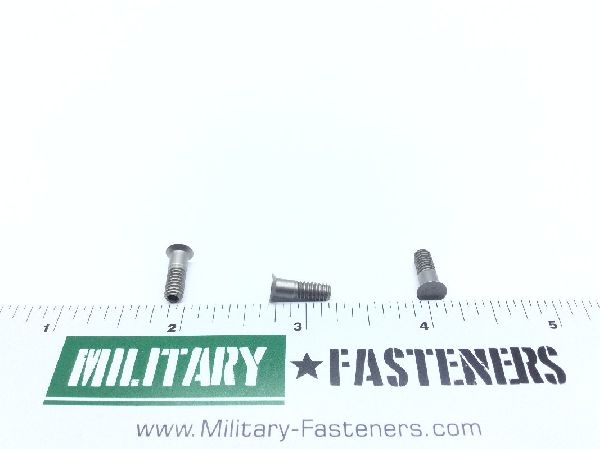

HL41-5-3 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $8.35

Units per Pack 10

Price per Pack $83.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $83.50

Add item to quote

Head Style

Flush countersunk

Material

Iron alloy 660

Surface Treatment

Fscm 73197 mfr ref single treatment response 258

Thread Class

Thread Size

0.164 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.490 inches and 0.510 inches
Grip Length: 0.193 inches
Head Major Diameter: Between 0.256 inches and 0.261 inches
Material Specification: Ams 5737 assn standard single material response or ams 5731 assn standard single material response
Shank Diameter: Between 0.1630 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Width Between Flats: Between 0.079 inches and 0.080 inches
Lubrication: Cetyl alcohol
