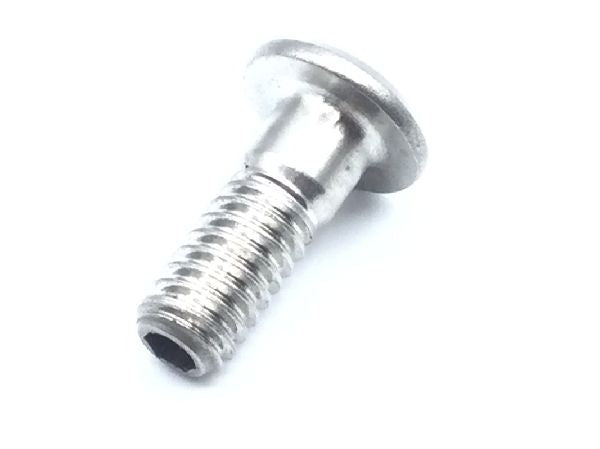

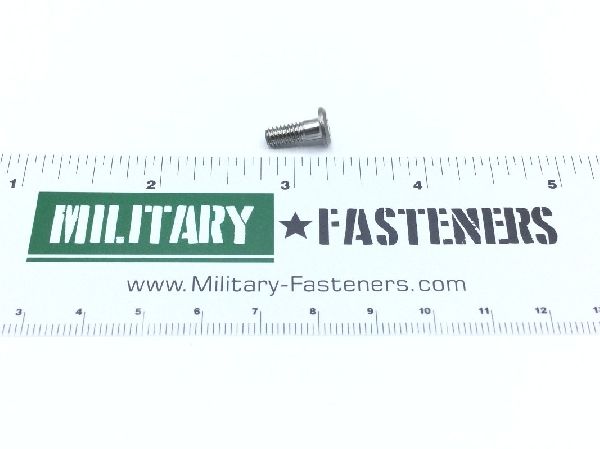

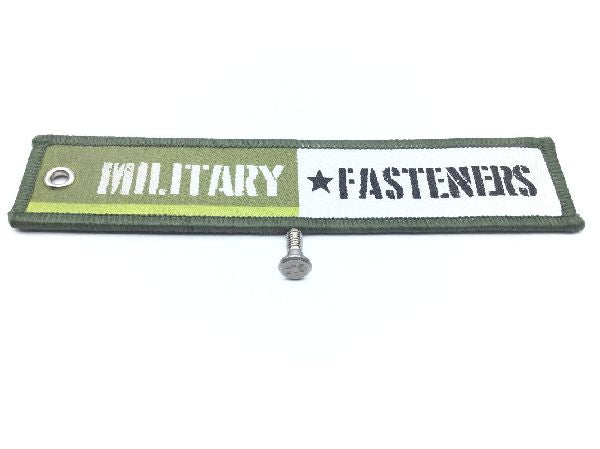

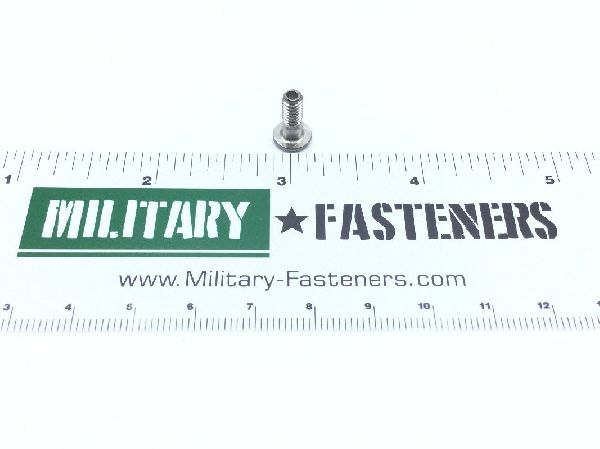

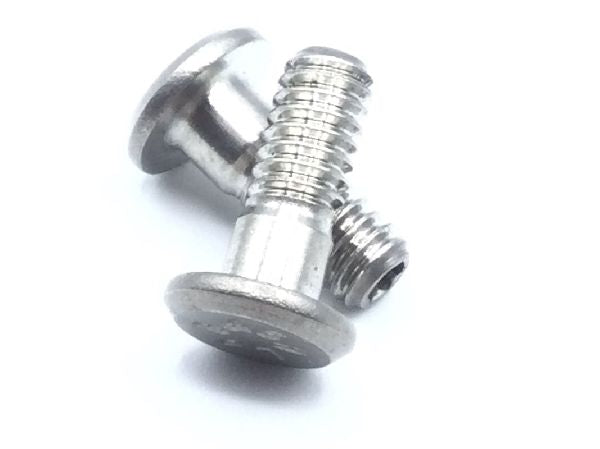

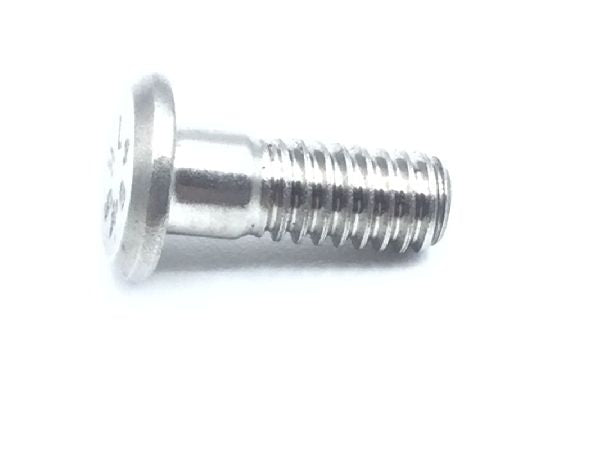

HL48-5-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $11.78

Units per Pack 5

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Err-090

Material

Iron alloy 660

Surface Treatment

Fscm 73197 mfr ref single treatment response 258

Thread Class

Thread Size

0.164 inches

Fastener Length: Between 0.427 inches and 0.447 inches
Grip Length: 0.130 inches
Head Height: Between 0.055 inches and 0.060 inches
Head Major Diameter: Between 0.306 inches and 0.322 inches
Material Specification: Ams 5737 assn standard single material response or ams 5731 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.1630 inches and 0.1635 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unjc
Width Between Flats: Between 0.0791 inches and 0.0801 inches
Lubrication: Cetyl alcohol
