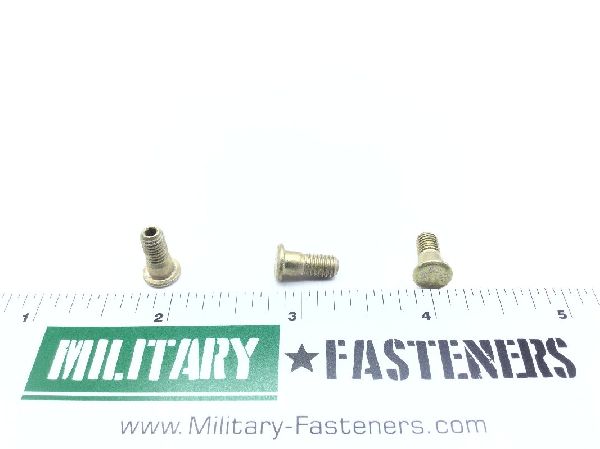

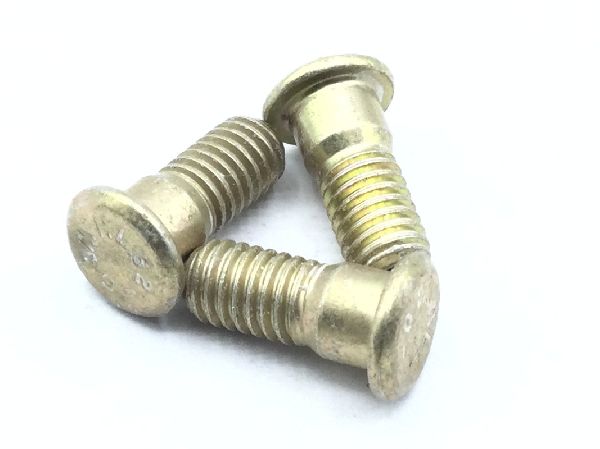

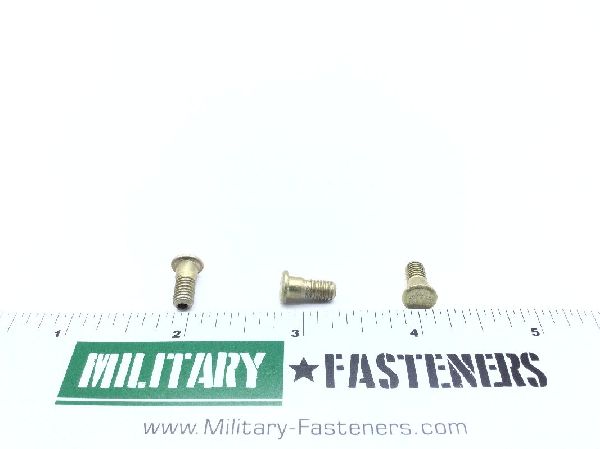

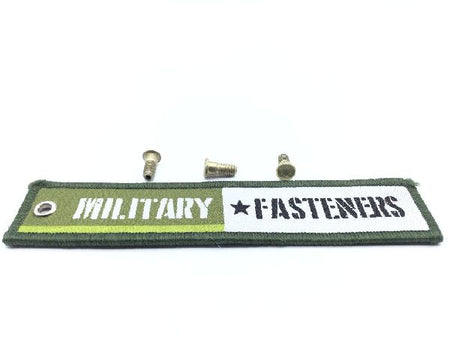

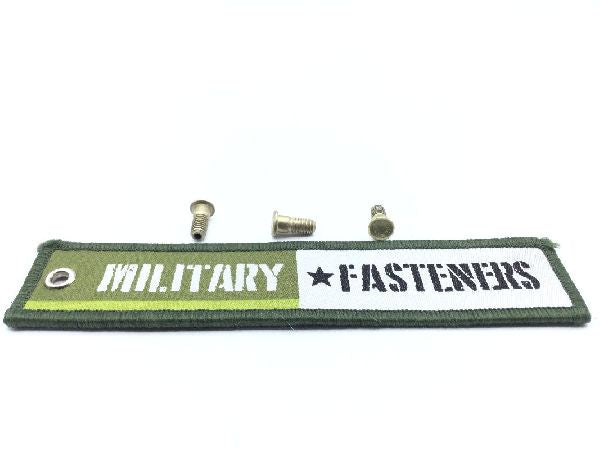

HL62PB6-2 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $2.08

Units per Pack 20

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Err-090

Material

Steel comp e4340 or steel comp 4140 or steel comp 8740

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.190 inches

Fastener Length: Between 0.440 inches and 0.460 inches
Grip Length: 0.13 inches
Head Height: Between 0.045 inches and 0.055 inches
Head Major Diameter: Between 0.295 inches and 0.315 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.2016 inches and 0.2026 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0791 inches and 0.0806 inches
Lubrication: Cetyl alcohol
