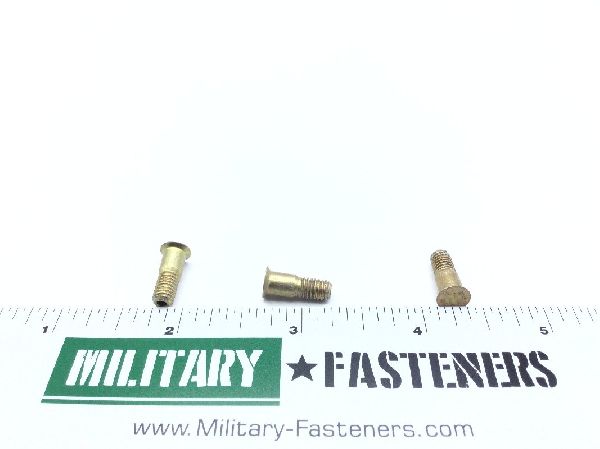

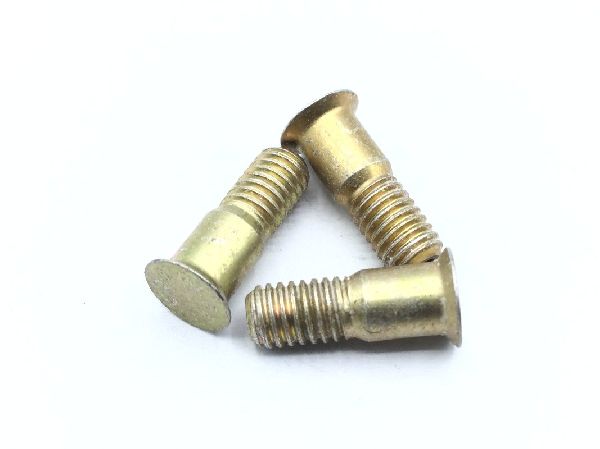

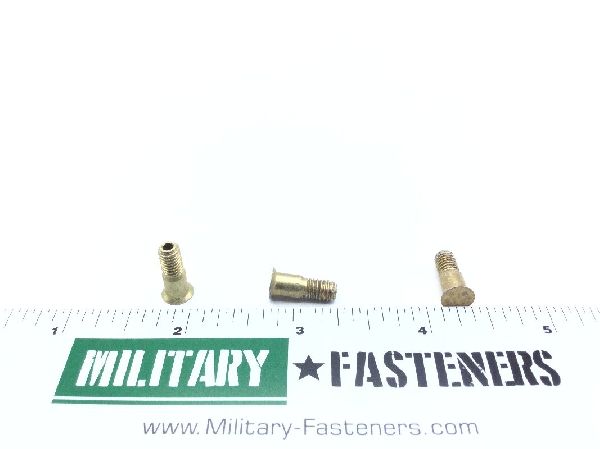

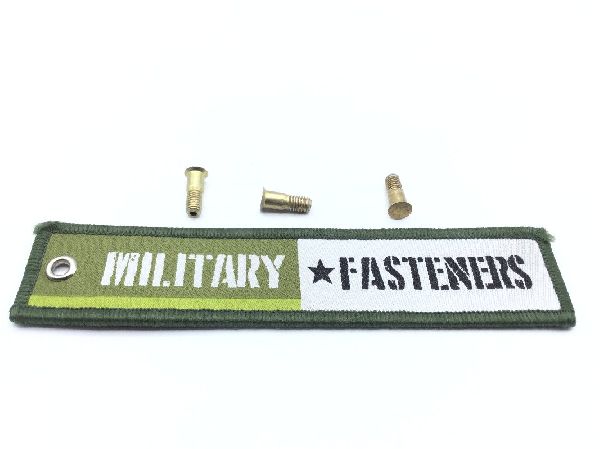

HL63PB6-4 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $2.43

Units per Pack 20

Price per Pack $48.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $48.60

Add item to quote

Head Style

Flush countersunk

Material

Steel comp e4340 or steel comp 4340 or steel comp 4140 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Size

0.190 inches

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.565 inches and 0.585 inches
Grip Length: 0.255 inches
Head Major Diameter: Between 0.2966 inches and 0.3016 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-5626 military specification 3rd material response or mil-s-6049 military specification 4th material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.2016 inches and 0.2026 inches
Shank Style: Threaded straight pin-rivet
Shear Strength: 95000 single pounds per square inch
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.0791 inches and 0.0806 inches
