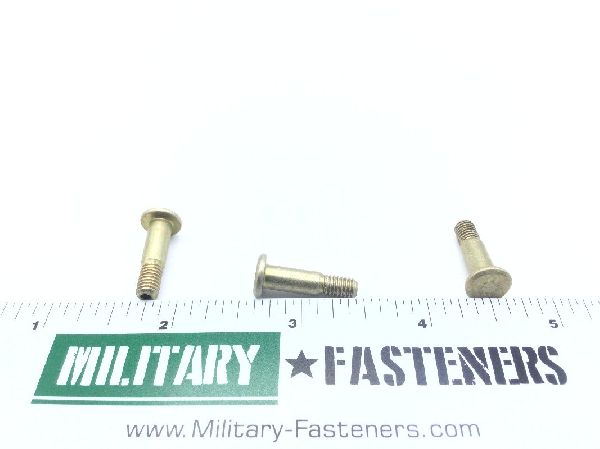

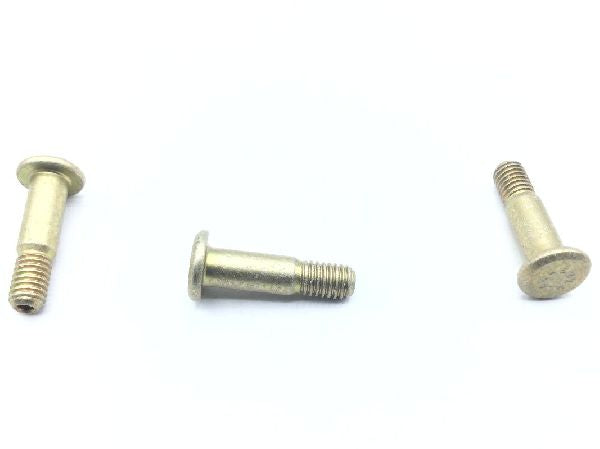

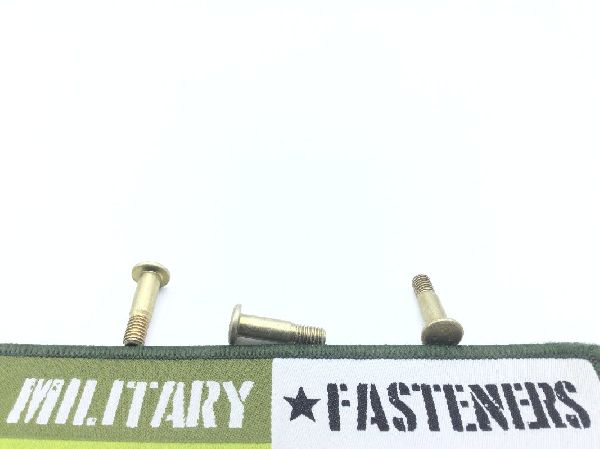

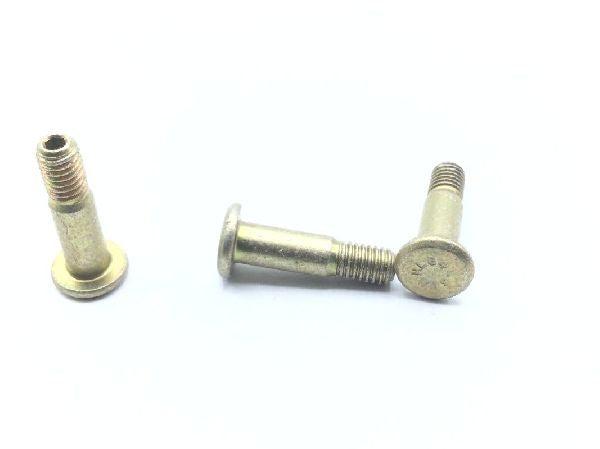

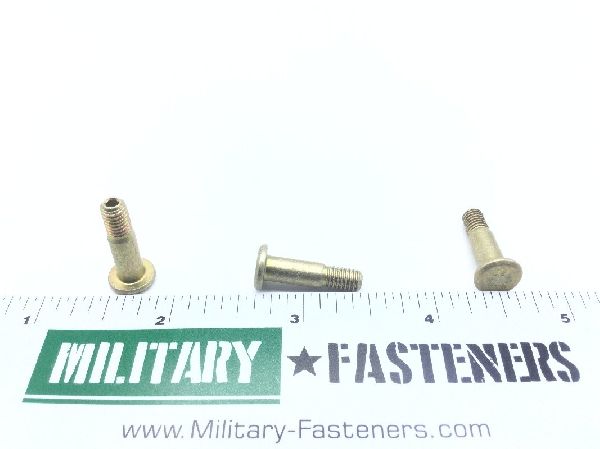

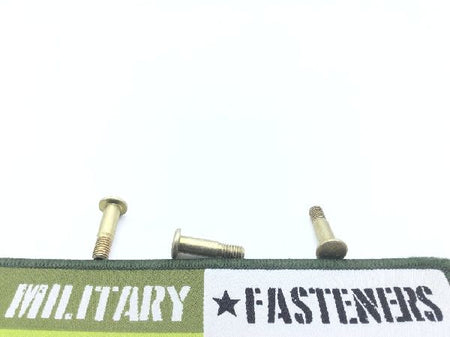

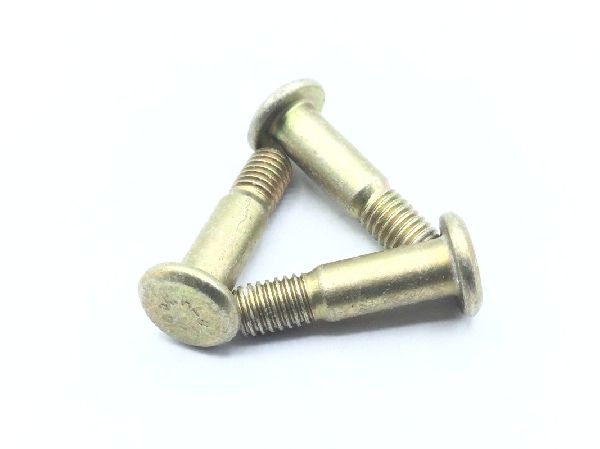

HL64PB6-7 Pin-Rivet

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.190 inches

Fastener Length: Between 0.753 inches and 0.773 inches
Grip Length: 0.443 inches
Head Height: Between 0.064 inches and 0.074 inches
Head Major Diameter: Between 0.758 inches and 0.778 inches
Material Specification: Mil-s-6758 military specification single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Shank Diameter: Between 0.202 inches and 0.203 inches
Shank Style: Threaded straight pin-rivet
Thread Direction: Right-hand
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.079 inches and 0.081 inches
Lubrication: Cetyl alcohol
