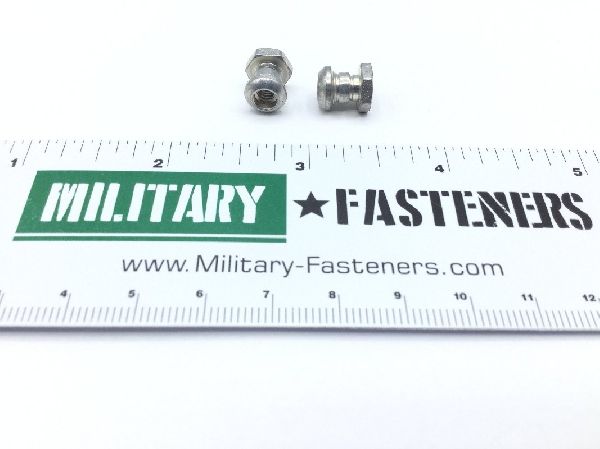

HL75-5A Pin-Rivet Collar

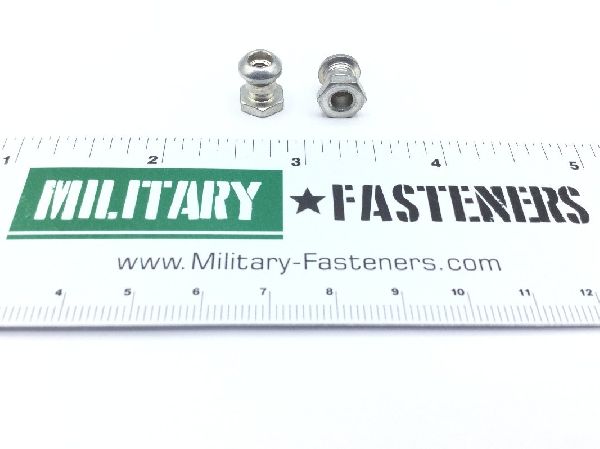

HL75-5A Pin-Rivet Collar (2)

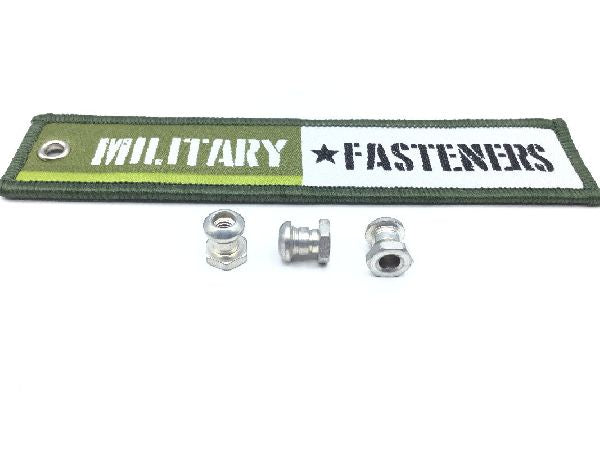

HL75-5A Pin-Rivet Collar (3)

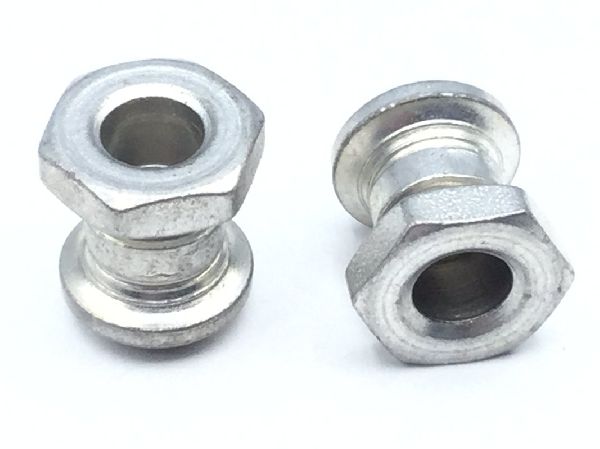

HL75-5A Pin-Rivet Collar (4)

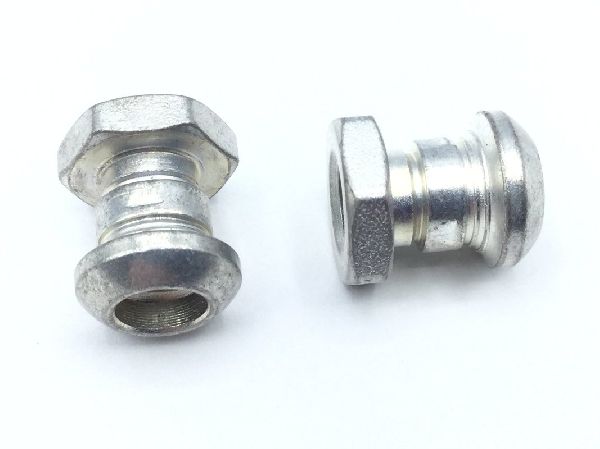

HL75-5A Pin-Rivet Collar (5)

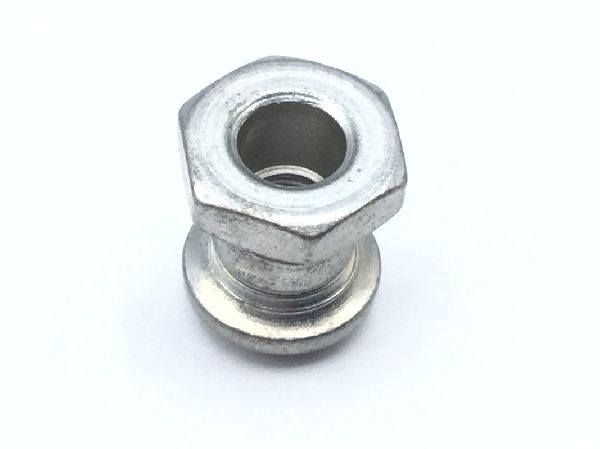

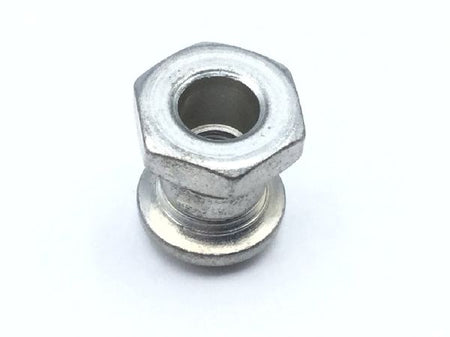

HL75-5A Pin-Rivet Collar (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

HL75-5A Pin-Rivet Collar

NSN: 5320-01-123-0929
Product Series: HL
ECCN: EAR99
Schedule: 7616.10.1000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 303se

Surface Treatment

Class 2 federal specification single treatment response type 1 qq-p-416

Thread Class

3b

Thread Size

0.164 inches

Collar Inside Diameter: 0.235 inches
Collar Outside Diameter: Between 0.355 inches and 0.365 inches
Collar Style: Threaded (break off) type
Collarheight: Between 0.427 inches and 0.457 inches
Material Specification: Ams 5640 assn standard single material response or astm a582 assn standard single material response
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Lubrication: Hi-shear corp specification 305 cetyl alcohol
