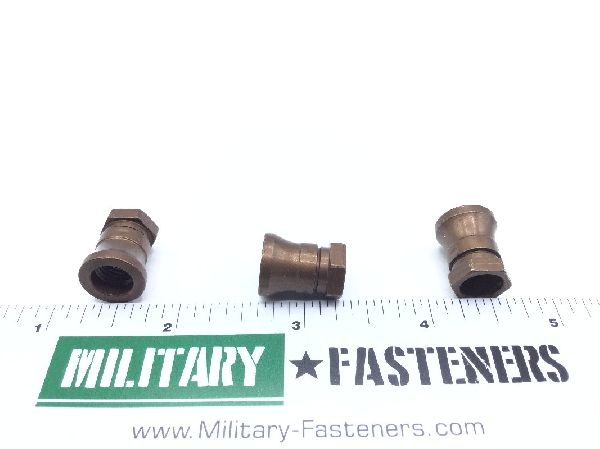

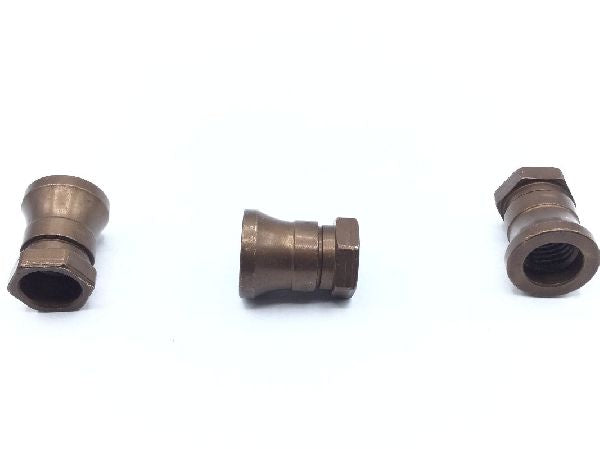

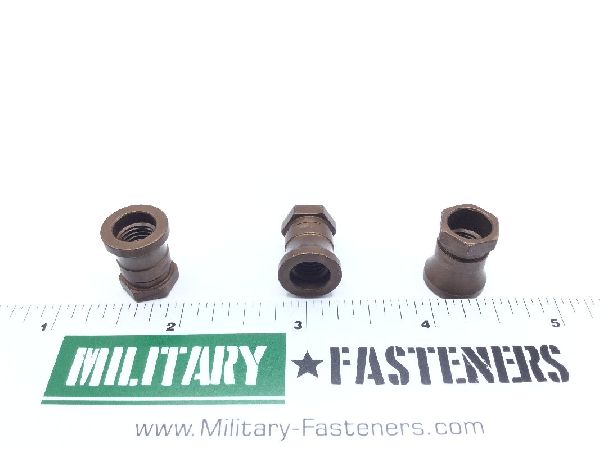

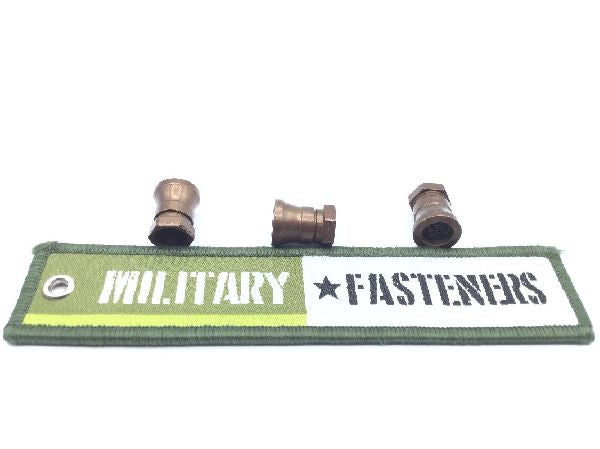

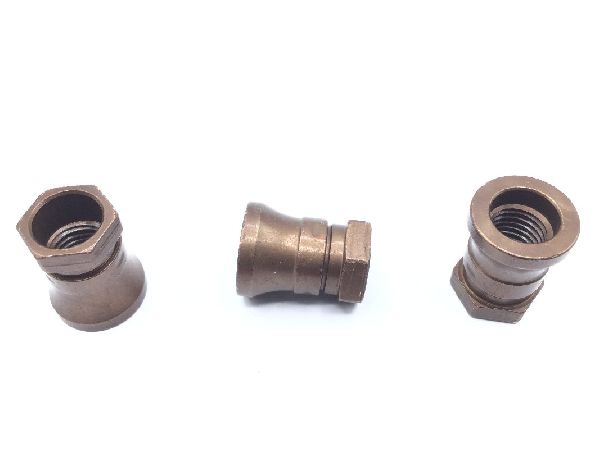

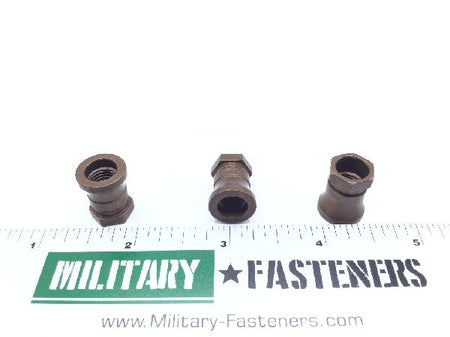

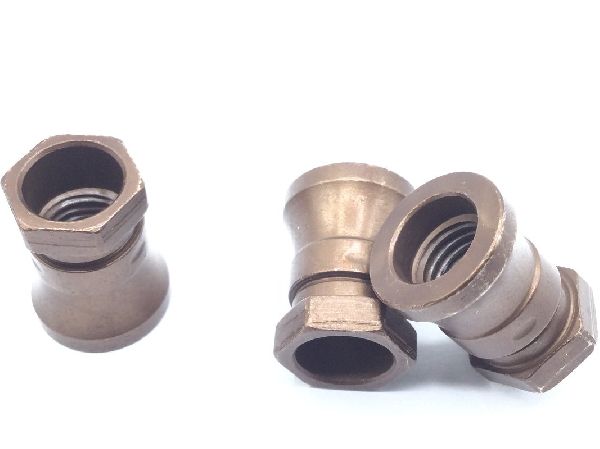

HL77-10 Pin-Rivet Collar

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $5.67

Units per Pack 10

Price per Pack $56.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $56.70

Add item to quote

Material

Aluminum alloy 2024

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

3b

Thread Size

0.312 inches

Collar Inside Diameter: Between 0.314 inches and 0.325 inches
Collar Outside Diameter: Between 0.512 inches and 0.518 inches
Collar Style: Threaded (break off) type
Collarheight: Between 0.652 inches and 0.672 inches
Heat Treatment: T-6 solution heat treated
Identification Code Color: Brown
Material Specification: Qq-a-430 federal specification single material response or qq-a-225/6 federal specification single material response
Thread Direction: Right-hand
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Lubrication: hi-shear corp specification 305 cetyl alcohol
