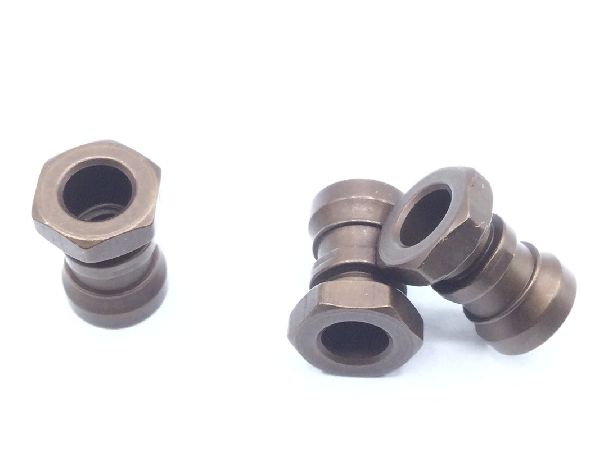

HL77-5 Pin-Rivet Collar

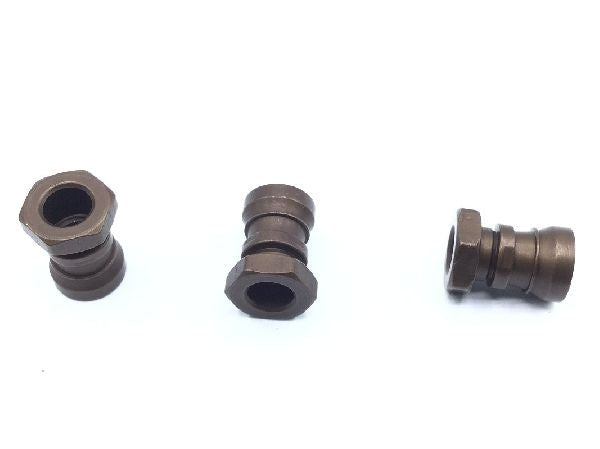

HL77-5 Pin-Rivet Collar (2)
HL77-5 Pin-Rivet Collar (3)

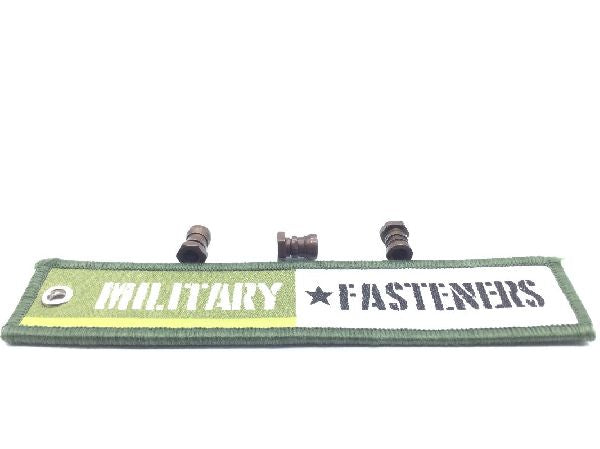

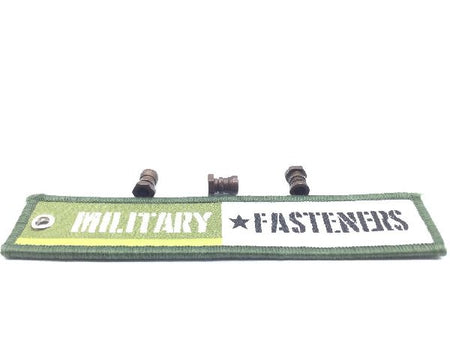

HL77-5 Pin-Rivet Collar (4)

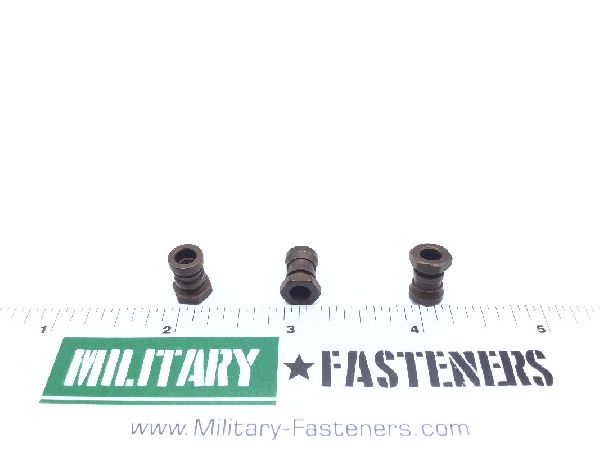

HL77-5 Pin-Rivet Collar (5)

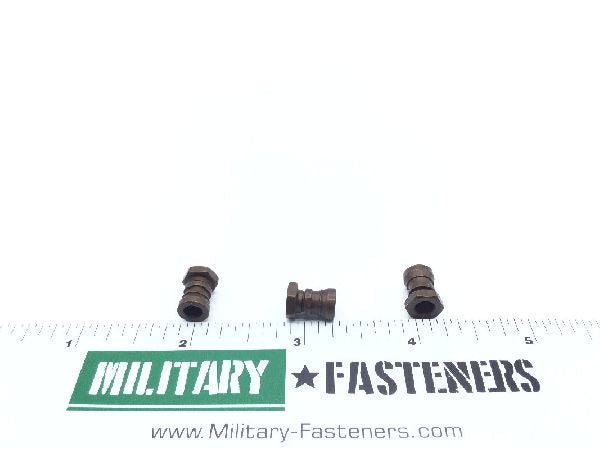

HL77-5 Pin-Rivet Collar (6)
HL77-5 Pin-Rivet Collar
HL77-5 Pin-Rivet Collar (2)
HL77-5 Pin-Rivet Collar (3)
HL77-5 Pin-Rivet Collar (4)
HL77-5 Pin-Rivet Collar (5)
HL77-5 Pin-Rivet Collar (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

HL77-5 Pin-Rivet Collar

Product Series
HL
ECCN
EAR99
Schedule
7318.23.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Aluminum alloy 2024
Surface Treatment
Mil-a-8625 military specification single treatment response
Thread Class
3b
Thread Size
0.164 inches
Collar Inside Diameter
Between 0.166 inches and 0.173 inches
Collar Outside Diameter
Between 0.288 inches and 0.292 inches
Collar Style
Threaded (break off) type
Collarheight
Between 0.427 inches and 0.447 inches
Heat Treatment
T-6 solution heat treated
Identification Code Color
Brown
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unjc
Lubrication
hi-shear corp specification 305 cetyl alcohol
