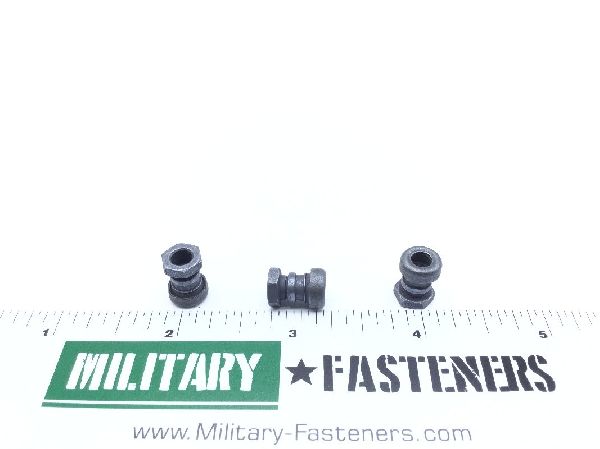

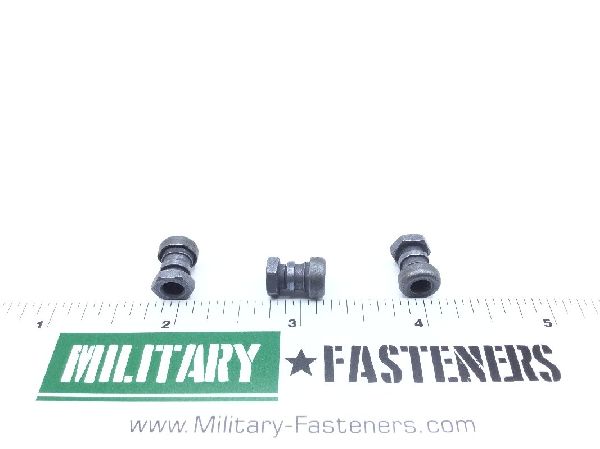

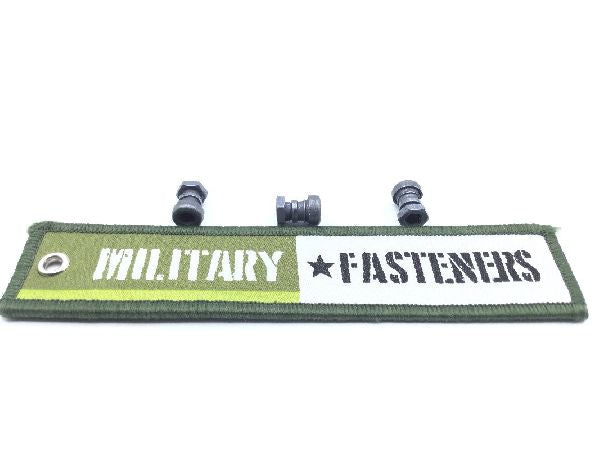

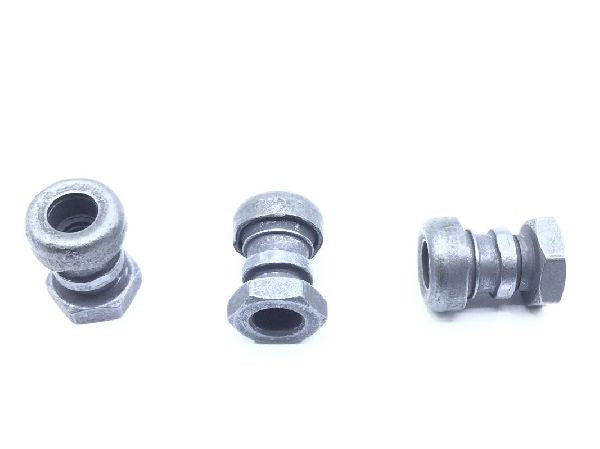

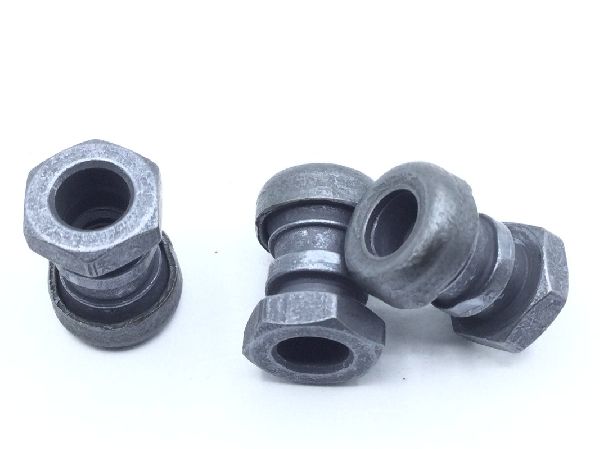

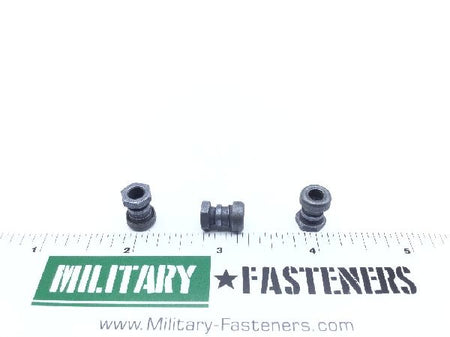

HL77-5DADW Pin-Rivet Collar

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $13.80

Units per Pack 5

Price per Pack $69.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $69.00

Add item to quote

Material

Aluminum alloy 2024 body

Surface Treatment

Mil-a-8625 military specification single treatment response body

Thread Class

Thread Size

0.164 inches

Collar Inside Diameter: Between 0.166 inches and 0.173 inches
Collar Outside Diameter: Between 0.288 inches and 0.292 inches
Collar Style: Threaded (break off) type
Collarheight: Between 0.427 inches and 0.447 inches
Heat Treatment: T-6 solution heat treated washer
Material Specification: Qq-a-430 federal specification single material response collar or qq-a-225/6 federal specification single material response collar
Special Features: T6 cond per mil-h-6088 washer for matl 2024 only washer finish is solid film lube per mil-l-8937; heat treat
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
