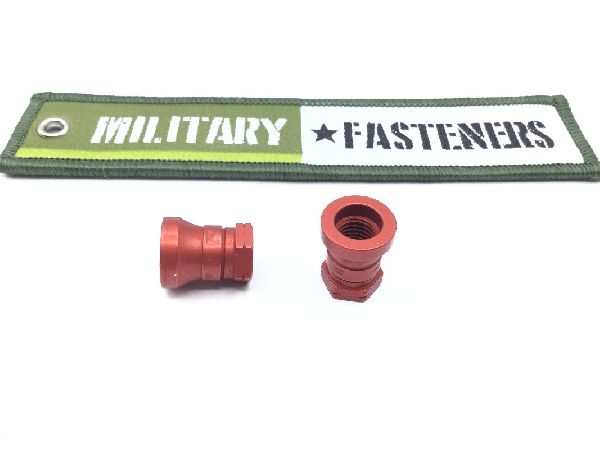

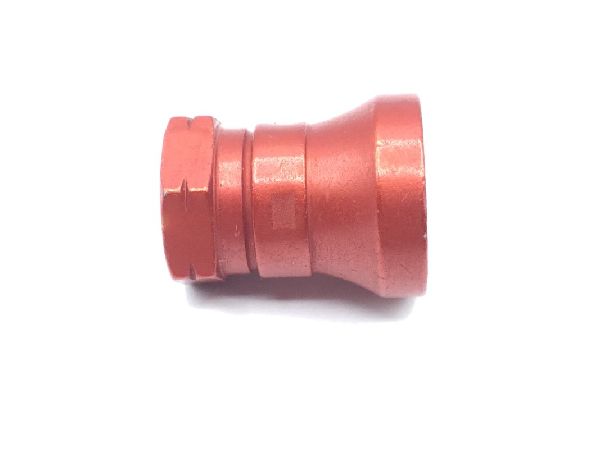

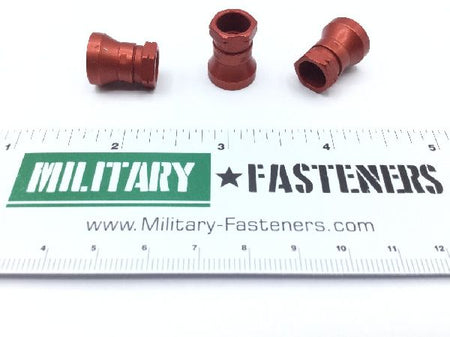

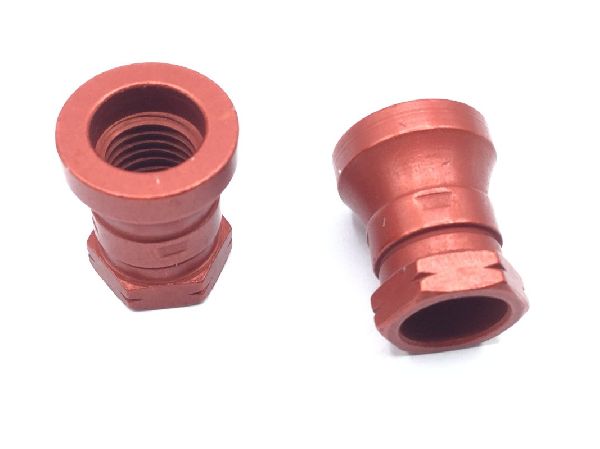

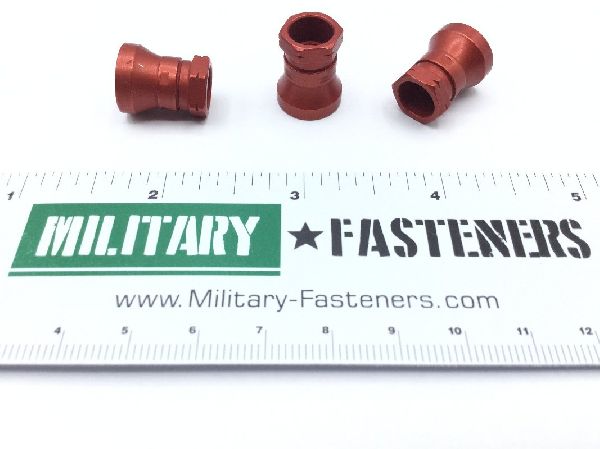

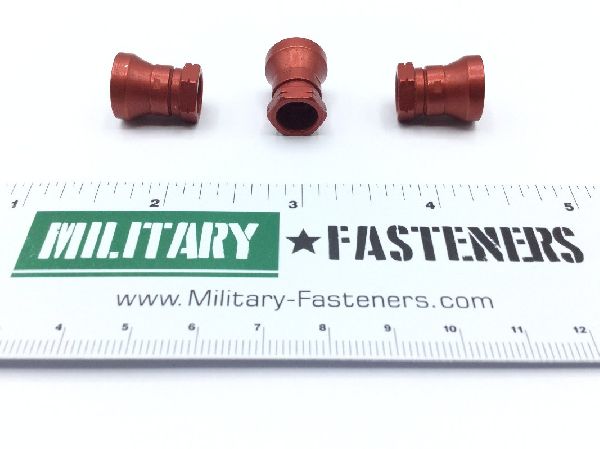

HL79-10 Pin-Rivet Collar

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2024

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Size

0.312 inches

Collar Inside Diameter: Between 0.330 inches and 0.336 inches
Collar Outside Diameter: Between 0.532 inches and 0.538 inches
Collar Style: Threaded (break off) type
Collarheight: Between 0.652 inches and 0.672 inches
Heat Treatment: T-6 solution heat treated
Identification Code Color: Red
Material Specification: Qq-a-430 federal specification single material response or qq-a-225/6 federal specification single material response
Special Features: Color red
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Lubrication: hi-shear corp specification 305 cetyl alcohol
