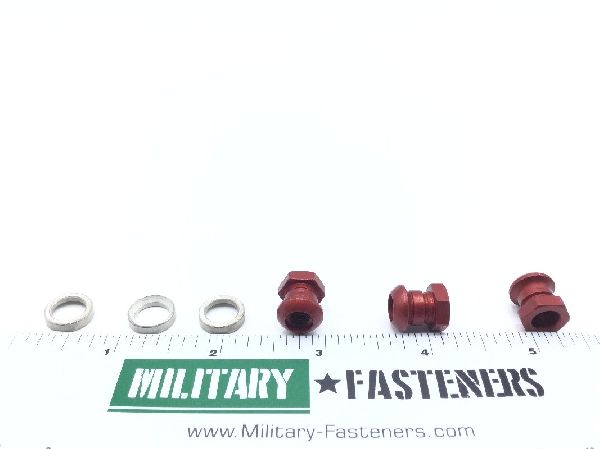

HL82-8AW Collar

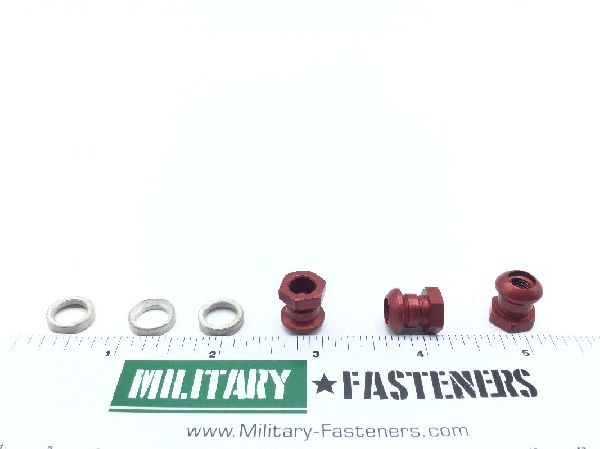

HL82-8AW Collar (2)

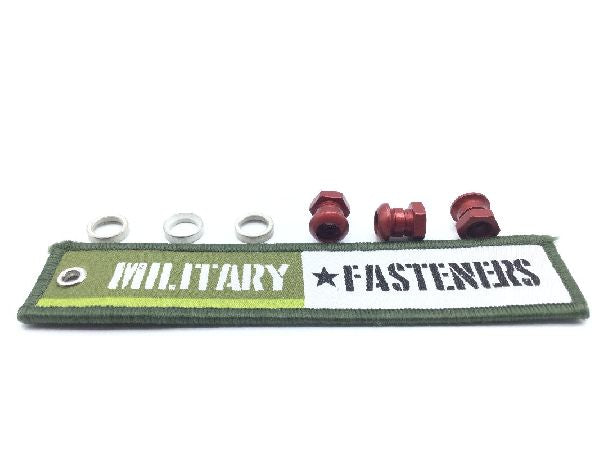

HL82-8AW Collar (3)

HL82-8AW Collar (4)

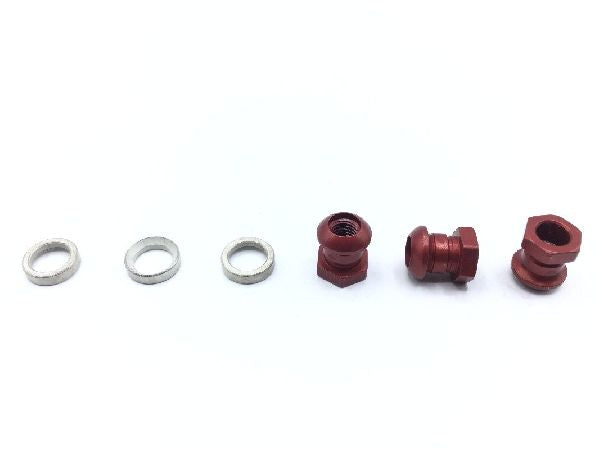

HL82-8AW Collar (5)

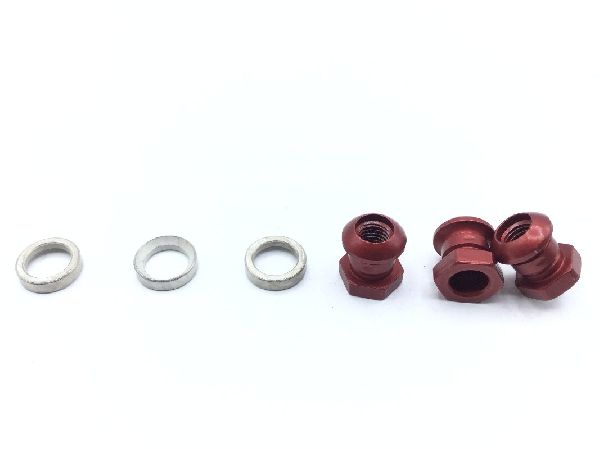

HL82-8AW Collar (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

HL82-8AW Collar

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.1000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Aluminum alloy 2024

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

3b

Thread Size

0.250 inches

Collar Inside Diameter: 0.27 inches
Collar Outside Diameter: Between 0.465 inches and 0.475 inches
Collar Style: Threaded (break off) type
Collarheight: 0.570 inches
Material Specification: Qq-a-225/6 federal specification single material response
Special Features: Washer included
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Lubrication: Hi-shear corp specification 305 cetyl alcohol
