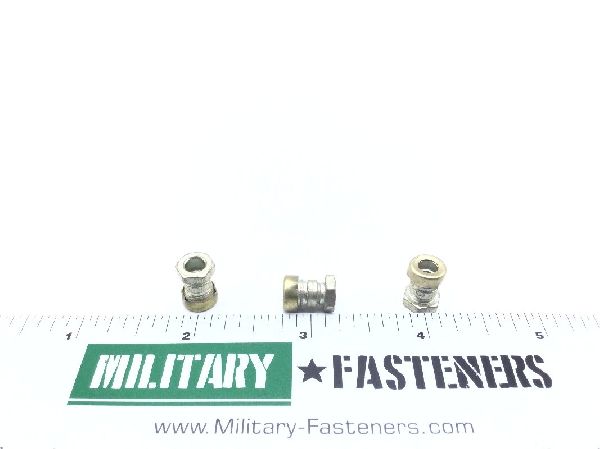

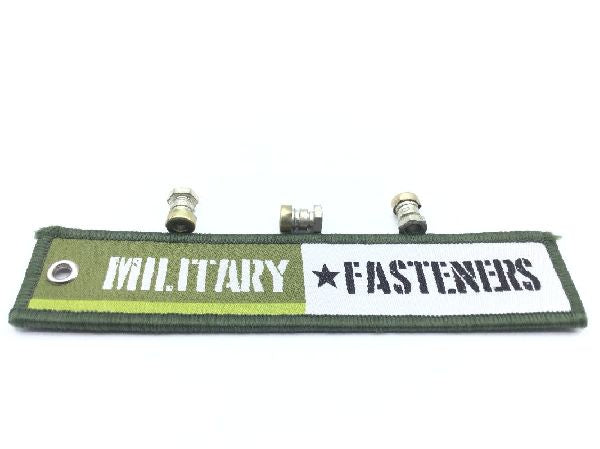

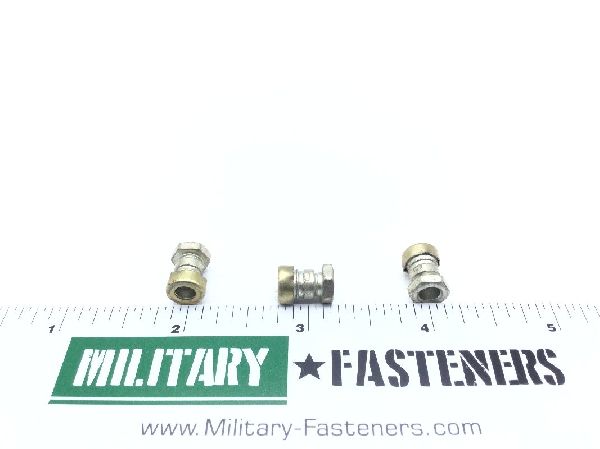

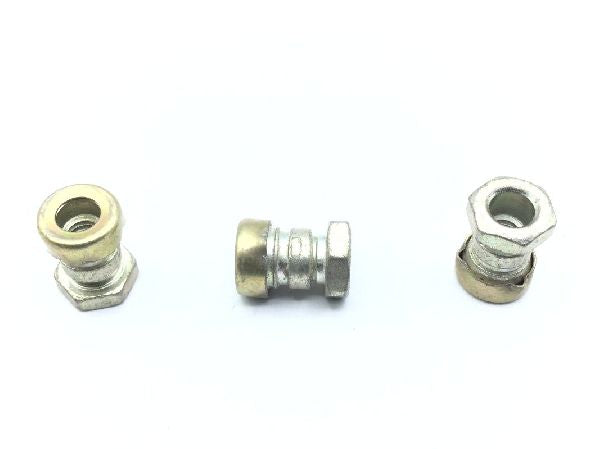

HL86PBW5 Collar

Product Series: HL
ECCN: EAR99
Schedule: 7616.10.1000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 303 or steel comp 303se or steel comp 303 plus x

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Size

0.164 inches

Collar Inside Diameter: Between 0.166 inches and 0.173 inches
Collar Outside Diameter: Between 0.283 inches and 0.287 inches
Collar Style: Threaded (break off) type
Collarheight: Between 0.427 inches and 0.447 inches
Features: Washer
Features Provided: Washer
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Lubrication: Hi-shear corp specification 305 grease film or cetyl alcohol
