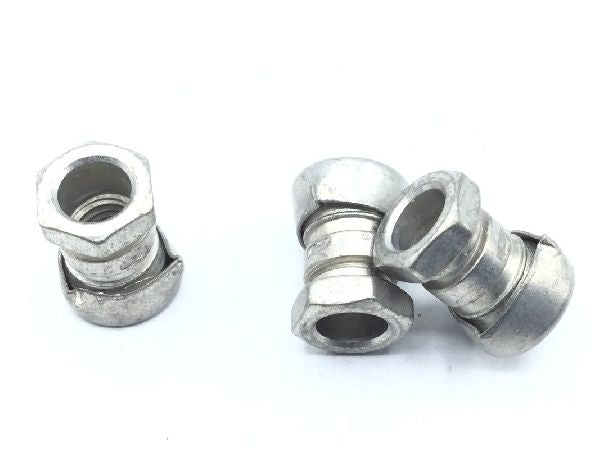

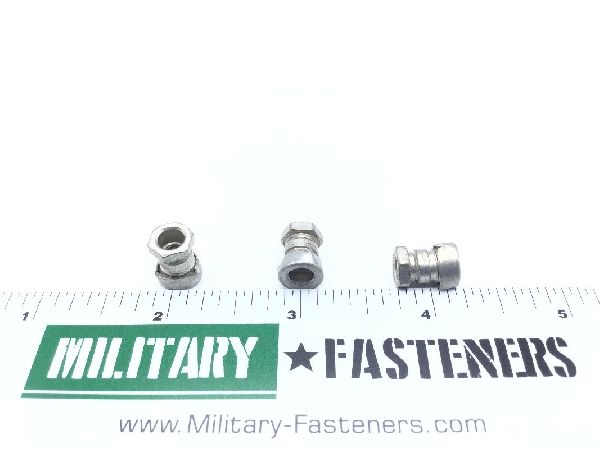

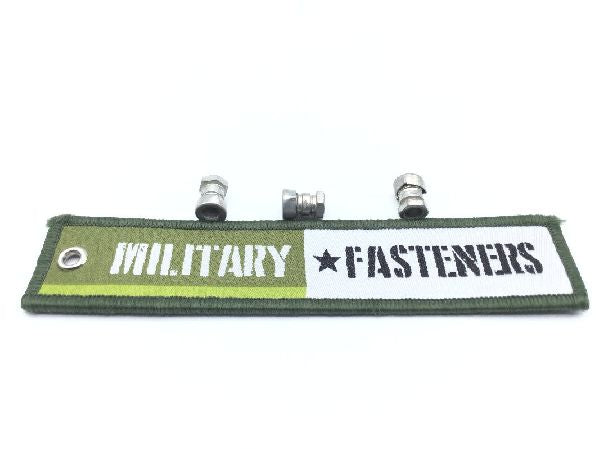

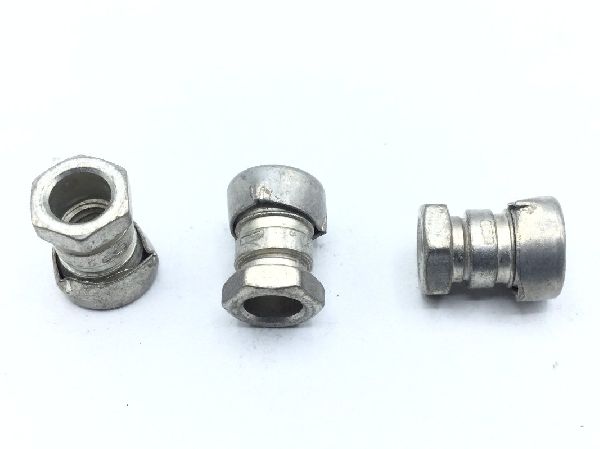

HL86W6 Collar

Product Series: HL
ECCN: EAR99
Schedule: 7318.29.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 301 washer or steel comp 302b washer or steel comp 302 washer or steel comp 303 washer or steel comp 303se washer or steel comp 304 washer or steel comp 304l washer or steel comp 305 washer or steel comp 308 washer or steel comp 309 washe

Surface Treatment

Class 2 federal specification single treatment response type 1 qq-p-416

Thread Class

3b

Thread Size

0.190 inches

Collar Inside Diameter: Between 0.192 inches and 0.200 inches
Collar Outside Diameter: Between 0.303 inches and 0.307 inches
Collar Style: Threaded (break off) type
Collarheight: Between 0.437 inches and 0.457 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Lubrication: hi-shear corp specification 305 cetyl alcohol
