HL87-6 Pin-Rivet Collar

HL87-6 Pin-Rivet Collar (2)

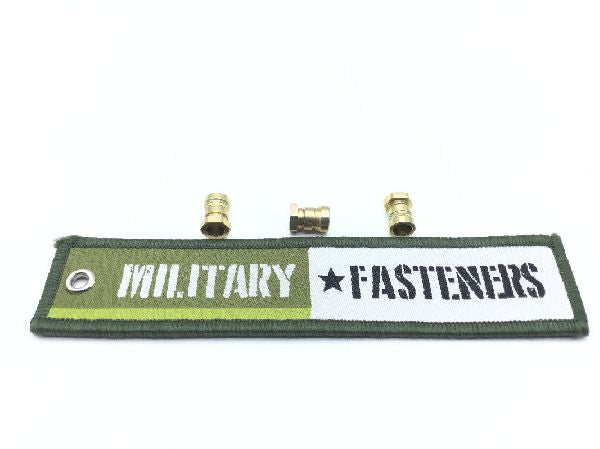

HL87-6 Pin-Rivet Collar (3)

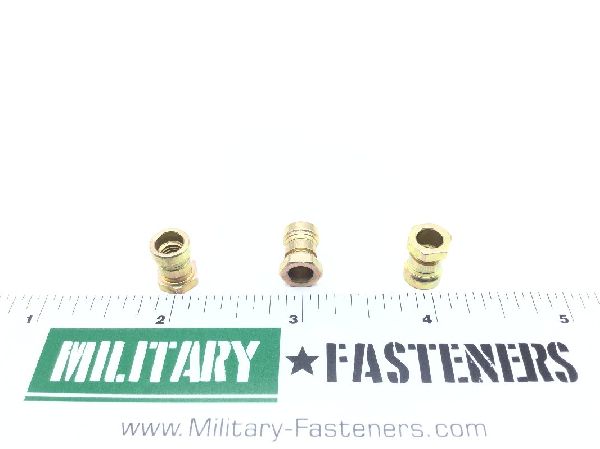

HL87-6 Pin-Rivet Collar (4)

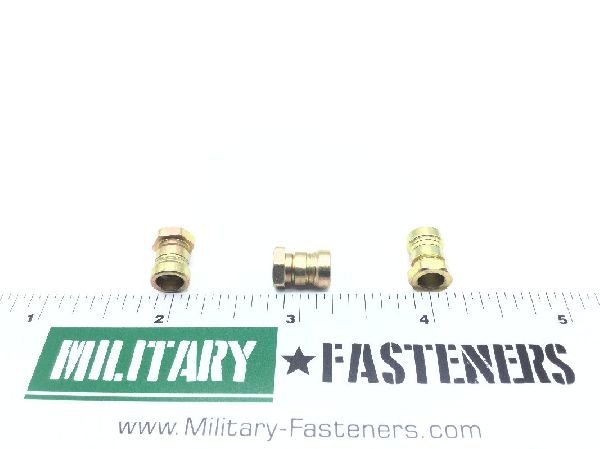

HL87-6 Pin-Rivet Collar (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

HL87-6 Pin-Rivet Collar

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Size

0.190 inches

Collar Inside Diameter: Between 0.208 inches and 0.212 inches
Collar Outside Diameter: Between 0.303 inches and 0.307 inches
Collar Style: Threaded (break off) type
Collarheight: Between 0.437 inches and 0.457 inches
Material Specification: Astm a582 assn standard single material response
Thread Direction: Right-hand
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Lubrication: Grease film
