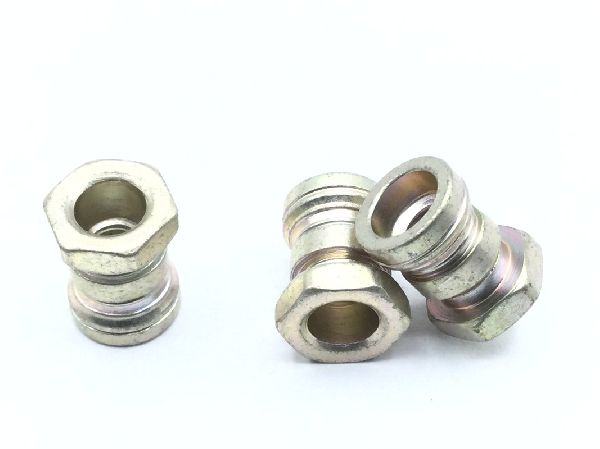

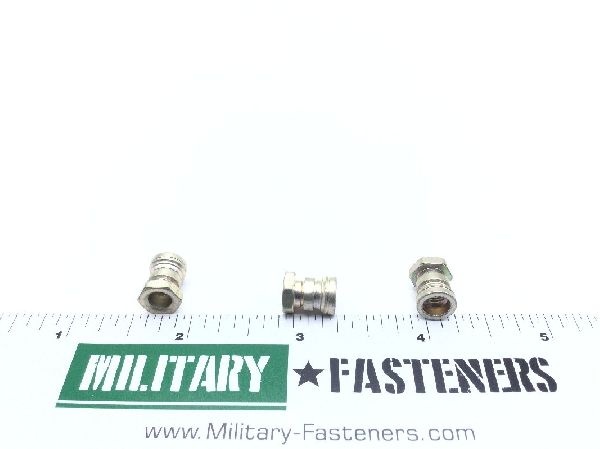

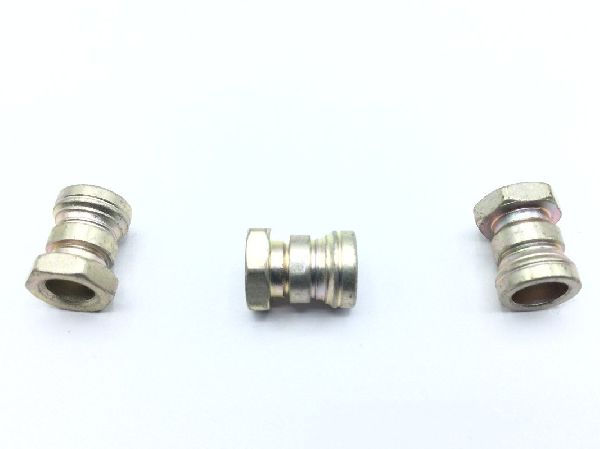

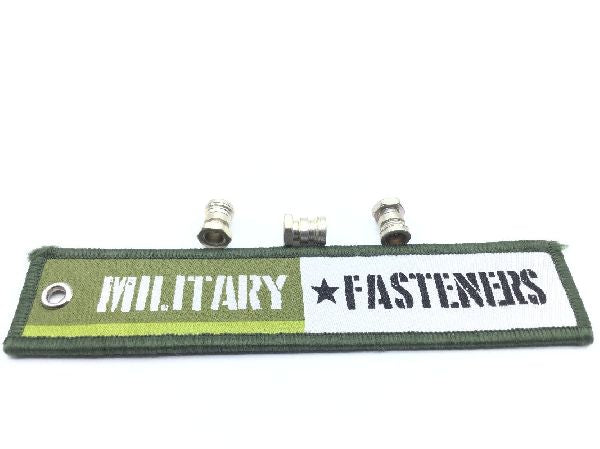

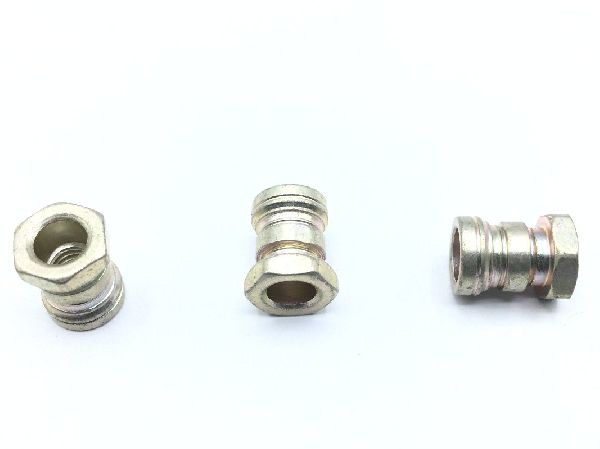

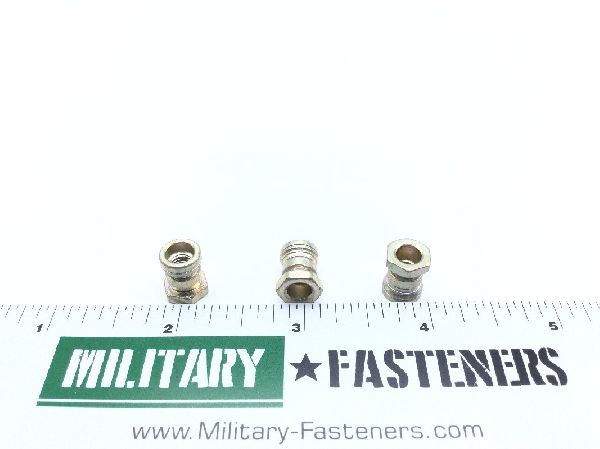

HL93-6 Pin-Rivet Collar

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Size

0.190 inches

Collar Inside Diameter: Between 0.223 inches and 0.227 inches
Collar Outside Diameter: Between 0.328 inches and 0.332 inches
Collar Style: Threaded (break off) type
Collarheight: Between 0.437 inches and 0.457 inches
Material Specification: Ams 5640 assn standard 1st material response or ams 5640 assn standard 2nd material response or qq-s-764 federal specification 2nd material response or ams 5640 assn standard 3rd material response
Thread Direction: Right-hand
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Lubrication: hi-shear corp specification 305 cetyl alcohol
