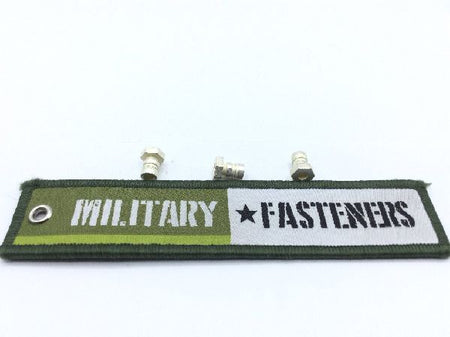

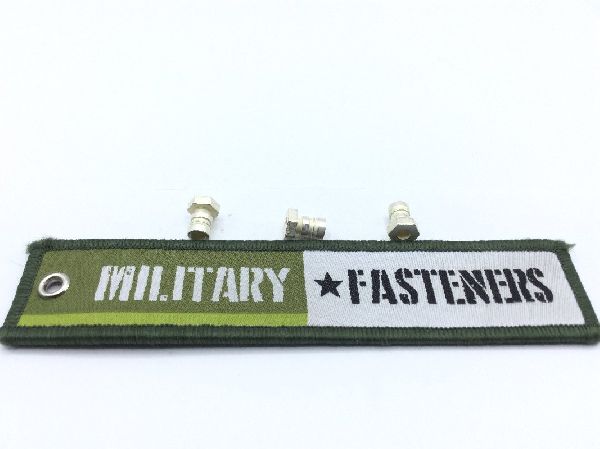

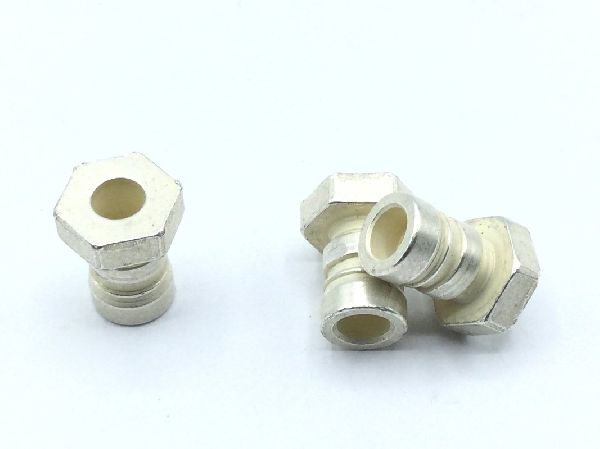

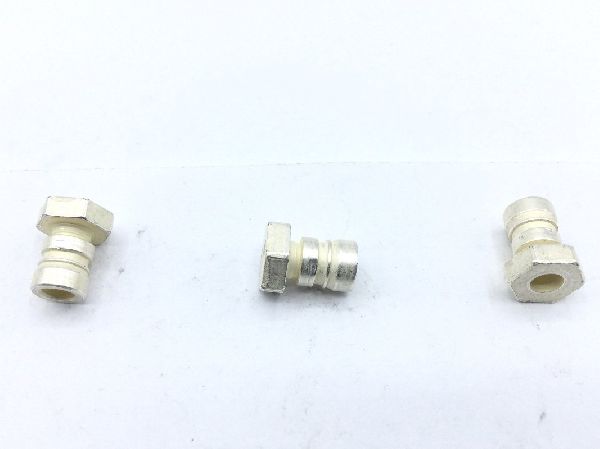

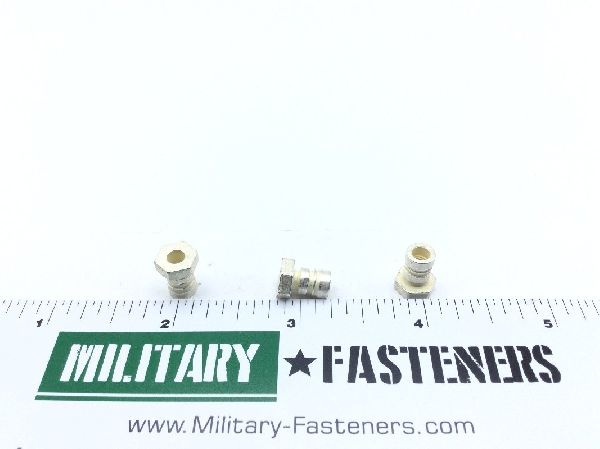

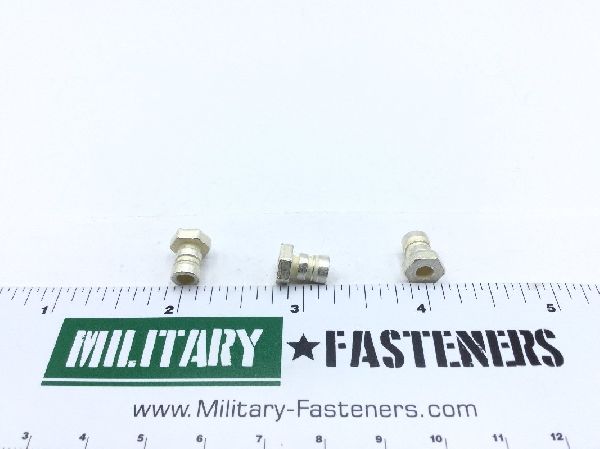

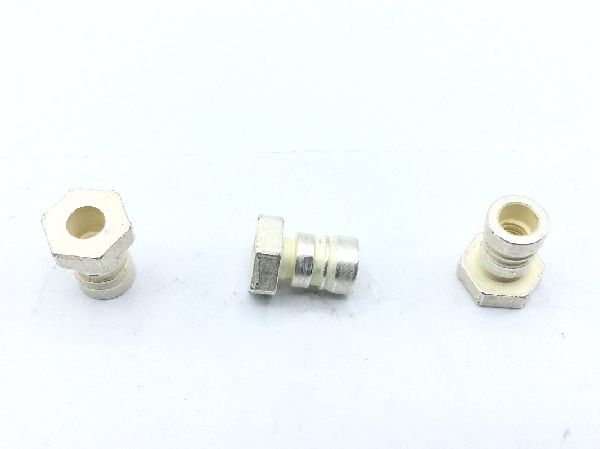

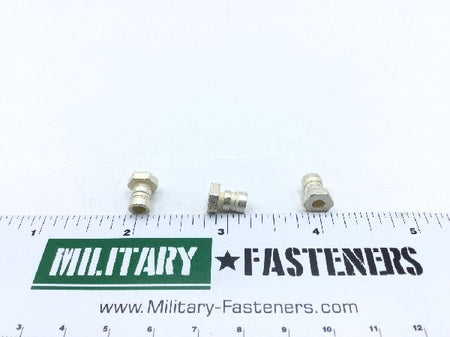

HL97-4 Pin-Rivet Collar

Product Series: HL
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless steel washer

Surface Treatment

Ams 2410 assn standard single treatment response body

Thread Class

3b

Thread Size

0.138 inches

Collar Inside Diameter: Between 0.143 inches and 0.147 inches
Collar Outside Diameter: Between 0.235 inches and 0.245 inches
Collar Style: Threaded (break off) type
Collarheight: 0.435 inches
Material Specification: Ams5731 assn standard 1st material response washer or ams5734 federal specification 2nd material response washer or ms5736 assn standard single material response washer
Precious Material: Silver
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Lubrication: Cetyl alcohol
